Managed L3 8 24 48-Port with 10G Gigabit Uplink Port Layer 2 Layer 3 Data Center Core Switch

Product overview

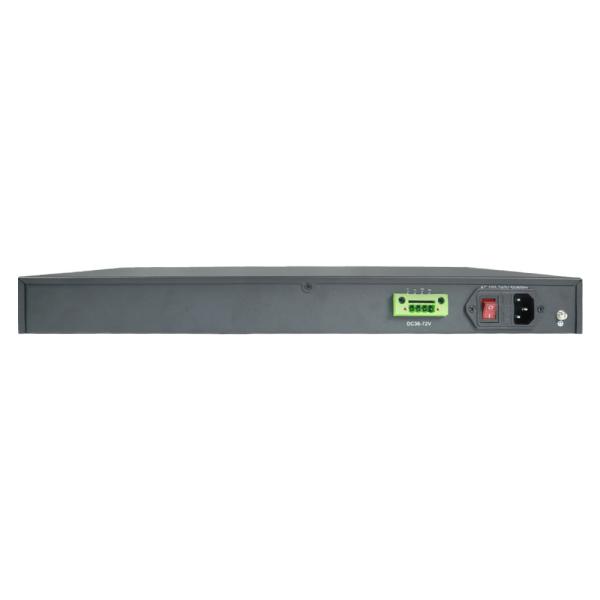

OFS-MXF4GT24-3 is a powerful three-layer managed 10-Gigabit core Ethernet fast switch independently developed by our company, supporting 4 1000/10000M SFP/SFP+ adaptive optical ports + 24 10/100/1000Base-T self-adaptive Adapt to RJ45 port. Fully follow the design and materials of industrial products, the shell adopts a 19-inch rack design, a wide range of working environment temperature, DC37-75V/AC100-240V dual power redundancy and other technologies, providing excellent industrial products such as high/low temperature resistance, lightning protection, etc. Class quality; supports powerful management functions, including system management, comprehensive two-layer management functions, three-layer routing management, QOS queue management, comprehensive network security management and monitoring and maintenance management; industrial-grade three-level ESD protection is suitable for a variety of occasions , Such as deployment requirements in intelligent transportation, outdoor surveillance, industrial networks, safe cities and other harsh environments.

Product Feature

• Support WEB/HTTP/HTTPS/SSH/Telnet/SNMP/CLI/CONSOLE/ROM diversified management and maintenance methods v
• Support IPV4/IPV6 network management interface and network neighbor management v
• Support DHCP server, DHCPL2/L3 relay agent, DHCPV6 service v
• Support DNS host and client configuration management
• Support SNMP V1/V2C/V3 and Trap message configuration management v
• Support LLDP and LLDP-MED configuration management, ISDP configuration management
• Support switch timing plan management v
• Support port mode, port bandwidth speed limit, rate control, flow control and other management, port status panel information display
• Support 8 groups of static and dynamic lacp aggregation v
• Support unicast/multicast/broadcast storm suppression v
• Support STP/RSTP/MSTP production tree protocol and loop protection protocol, support CST and MST configuration, eliminate the second layer loop, and realize link backup
• Support port VLAN, IEEE 802.1Q VLAN, Voice VLAN, VLAN double tag QinQ configuration.
• Support MAC address aging and static MAC address configuration

Product's Technical Parameters
