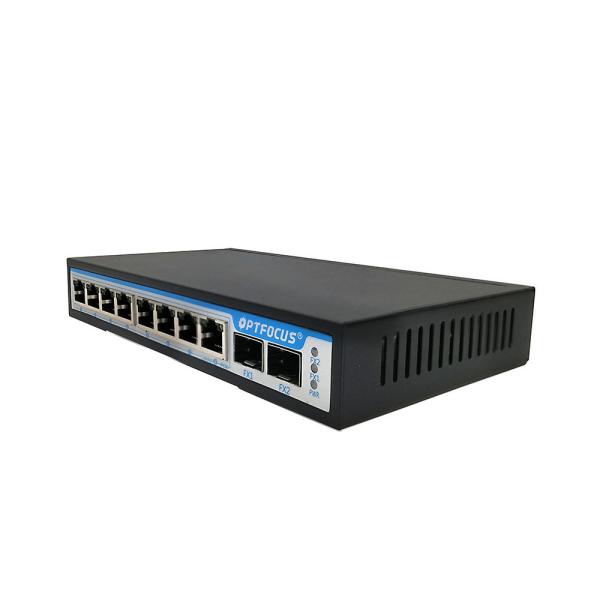

Fiber Optic Switch 8 Port Gigabit PoE Network Switch With LED Indicators
Fiber Optic Switch 8 Port Gigabit PoE Network Switch With LED Indicators
Fiber Optic Switch 8 Port Gigabit PoE Network Switch With LED Indicators
Fiber Optic Switch 8 Port Gigabit PoE Network Switch With LED Indicators
Fiber Optic Switch 8 Port Gigabit PoE Network Switch With LED Indicators
Fiber Optic Switch 8 Port Gigabit PoE Network Switch With LED Indicators
Fiber Optic Switch 8 Port Gigabit PoE Network Switch With LED Indicators
Fiber Optic Switch 8 Port Gigabit PoE Network Switch With LED Indicators
Fiber Optic Switch 8 Port Gigabit PoE Network Switch With LED Indicators
Fiber Optic Switch 8 Port Gigabit PoE Network Switch With LED Indicators
Fiber Optic Switch 8 Port Gigabit PoE Network Switch With LED Indicators
Fiber Optic Switch 8 Port Gigabit PoE Network Switch With LED Indicators
Fiber Optic Switch 8 Port Gigabit PoE Network Switch With LED Indicators
Fiber Optic Switch 8 Port Gigabit PoE Network Switch With LED Indicators
Specifications
Brand Name :
OPTFOCUS
Model Number :
OFS-PE-GSF2T8S
Place of Origin :
Shenzhen China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
5000 pieces per one week
Delivery Time :
5-7 working days
Packaging Details :
306mm× 152mm×55cm
Product Name :
8-port 10/100/1000Mbps + 2-port 1000Mbps SFP Fiber
Product Model :
OFS-GSF2T8S
Working temperature :
-10～55℃
Relative Humidity :
5%~95 %( no condensation)
Product Weight :
0.5 KG
Product size (L×W×H) :
190mm×104mm× 29mm
Description

Anomaly link detection Power Over Ethernet POE Switch 8 port 10 / 100 / 1000M +2 Uplink 10 / 100 / 1000M SFP port for ip cameras

Product Description

Technical items Description
Product Name 8-port 10/100/1000Mbps + 2-port 1000Mbps SFP Fiber
Product Model OFS-GSF2T8S
Network Protocols IEEE802.3 10BASE-T; IEEE802.3i 100Base-T;IEEE802.3u;1000Base-TX;IEEE802.3ab 1000Base-T; IEEE802.3z 1000Base-X; IEEE802.3x;
Network Media 10BASE-T: Cat3,4,5 UTP(≤100 meter)
100BASE-TX: Cat5 or later UTP(≤100 meter)
1000BASE-TX: Cat6 or later UTP(≤100 meter)
Fiber Media Multi-mode: 2KM
Single-mode: 20/40/60/80KM
Performance Specification Bandwidth: 20Gbps
Packet Buffer Memory:2M
Packet Forwarding Rate:1488000pps/port
MAC Address Table:1K /port
PoE Specification PoE Standard: IEEE802.3af/ IEEE802.3at
PoE ports:8 port support PoE
Power Output:
Max. 15.4 watts (IEEE 802.3af)
Max. 30 watts (IEEE 802.3at)
PoE port Auto detect AF/AT devices
Output Voltage: DC48V
Power Pin Assignment:1/2+;3/6-
Power Type: End-span( Mid-span optional)
Forwarding Mode Store-and-Forward
LED Indicators Power: PWR; Link;POE ; Link/Act
Power Supply Input Voltage: DC52V (48～55V)
Working Environment Working temperature: -10～55℃ ; Storage temperature: -20～75℃
Relative Humidity: 5%~95 %( no condensation)
Installation DIN-Rail or Wall mounts,Optional,Default device is not
Packing List 1× Media Converter
1×User Manual/Certificate of quality/Warranty card
1×power adapter
MTBF 100,000 hours
Weight & Size Product Weight: 0.5 KG
Packing weight: 1.1 KG
Product size (L×W×H): 190mm×104mm× 29mm
Packing size(L×W×H): 306mm× 152mm×55cm
Warranty 1-years

Feature:

  • 8 Port 10/100/1000Mbps with Auto Uplink™ , 2 port 1000Mbps SFP Slot

    8 Port support PoE, supports IEEE 802.3af(15.4W),IEEE802.3at PoE (30W)

  • Automatic MAC address learning and aging

  • 10/100/1000Mbps Auto-negotiation , auto-MDI-MDI-X
  • LED indicators for monitoring power/link/activity
  • Support 10/100/1000Mbps-Full/Half-duplex

  • Supports Wall-mount and DIN-Rail installation ,Optional.

  • Supports Broadcast Storm Control

  • Supports Relay output for power failure

  • Excellent heat elimination without cooling fan.

  • Apply to Urban Intelligent Traffic Monitoring System (ITS), Safe City.

  • Harsh environment or higher requirement

  • -10℃-55℃ temperature range.
