Specifications
Brand Name :
OPTFOCUS
Model Number :
OFS-GWS01/02-80
Certification :
CE, FCC
Place of Origin :
Guangdong, China (Mainland)
MOQ :
10 Pairs
Price :
negotiated
Payment Terms :
L/C, T/T, Western Union, Paypal
Supply Ability :
10000 Pairs per Month
Delivery Time :
3-5 working days after received your payment
Packaging Details :
48*42.5*38 CM 40pcs per carton
Eth :
10/100/1000M
Color :
Black, Silver etc.
Data Buffer :
256 K
Humidity :
5 ~ 90%
Storage temperature :
-20 ～ +70℃
Max Distance :
80 KM
Operating standards :
IEEE802.3z/AB, 1000Base-T and 1000Base-SX/LX
MAC address table :
4 k
Description

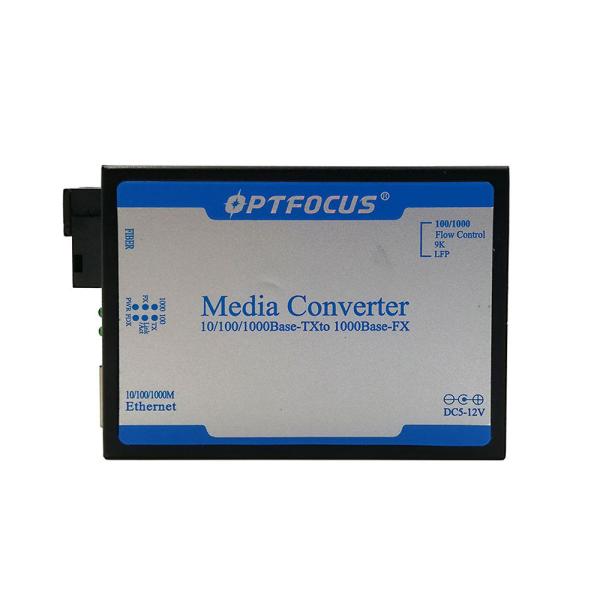

Single Fiber Fiber Media Converter SM 80 Km SC 1310nm 1550 nm External PS

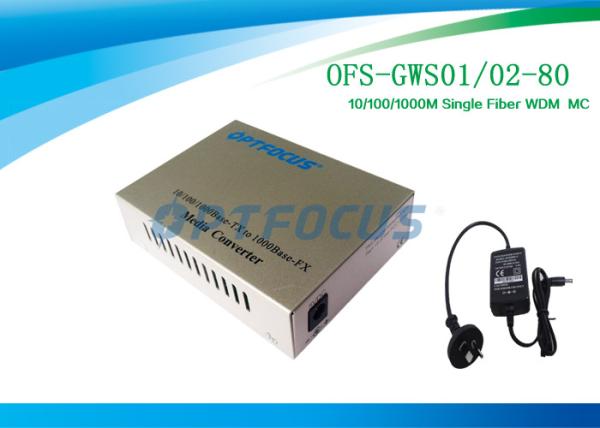

OFS-GWS01/02-80

10/100/1000M Singlemode Single Fiber Converters

OFS Gigabit Single Fiber Converter can convert Optical－Electric Ethernet signals between 10/100/1000M UTP interface (TX) and 1000M optical fiber interface (FX).

The traditional 10/100/1000M gigabit Ethernet can be extended to the distance of 90km through single optical fiber link.

It must be used in couples,because the transmitted optical differs from the receive optical in wavelength.

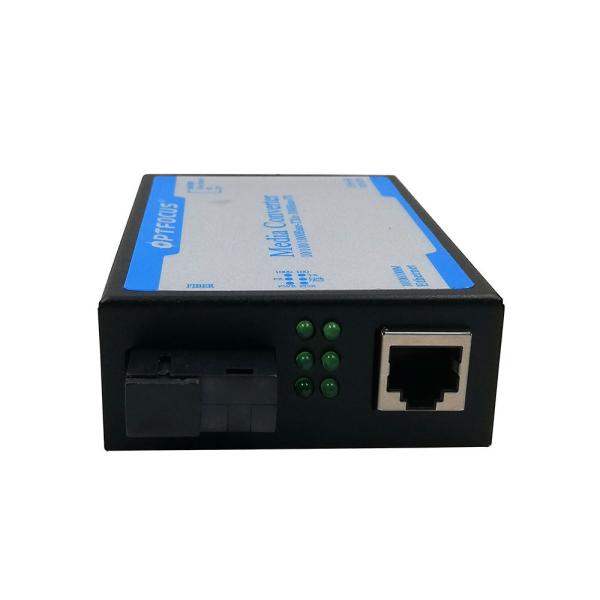

6 Group LED indicated lights could fully monitor the working conditions of converters.

It is easy for users to observe and diagnose the failure of converters.

The performance and quality of the products are excellent because of adopting latest Gigabyte IC from USA and Taiwan.

Technical Specifications

Connector

UTP: RJ-45,10/100/1000Mbps

Fiber: SC,1000Mbps
MAC address table 4K
Data Buffer 256K
Operating standards

IEEE802.3z/AB,

1000Base-T and 1000Base-SX/LX
Dimensions

40 (high) x 110(width) x 140 (length) mm
Flow control

Full Duplex: IEEE802.3x

Half Duplex: back pressure
Power

AC. 220V(170-260V)

50Hz; DC. 5V,2A
Ambient temperature 0 ～ +50℃
Storage temperature -20 ～ +70℃
Humidity 5% ～ 90%
Cable

UTP: Cat.5e or Cat.6 (the max distance up to 100m)

Fiber (singlemode): 8.3/125, 8.7/125, 9/125, 10/125µm (the max distance up to 90km)

Fiber Optic Information

Type connector Max distance Wavelength TX power Sensitivity Link Budget
OFS-GWS01/02-20 SC 20km

1310/

1550nm

-11

～-5dBm

 -23dBm 12dBm
OFS-GWS01/02-40 SC 40km

1310/

1550nm

-5/-8

～0dBm

 -26dBm 21/18dBm
OFS-GWS01/02-60 SC 60km

1310/

1550nm

0/-5

～2dBm

 -26dBm 26/21dBm
OFS-GWS01/02-80 SC 80km

1490/

1550nm

-2

～3dBm

 -26dBm

24dBm

Main features

◆Supporting the max 1536 bytes packets

◆Adopting internal power supply to insure equipment at long-hours work stably.

◆The transmission of a channel signals can be completed by single fiber. It has doubled in quantity of fiber data transmission compared with twin fiber.

◆Auto negotiation function allows UTP port to auto select 10/100/1000M and Full Duplex or Half Duplex

◆The UTP port supports MDI / MDI-X auto crossover.

Order Information

Model

Product description

OFS-GWS01/02 -xx

10/100/1000M singlemode single fiber converters must be used and ordered in couples. One set of WS01 must be connected with another set of WS02 for using. WS01 transmitted optical wavelength 1310nm, receive optical wavelength 1550nm; WS02 transmitted optical wavelength 1550nm, receive optical wavelength 1310nm. The max distance of fiber is up to 20, 40, 60 or 80km. XX is the amount of distance.
