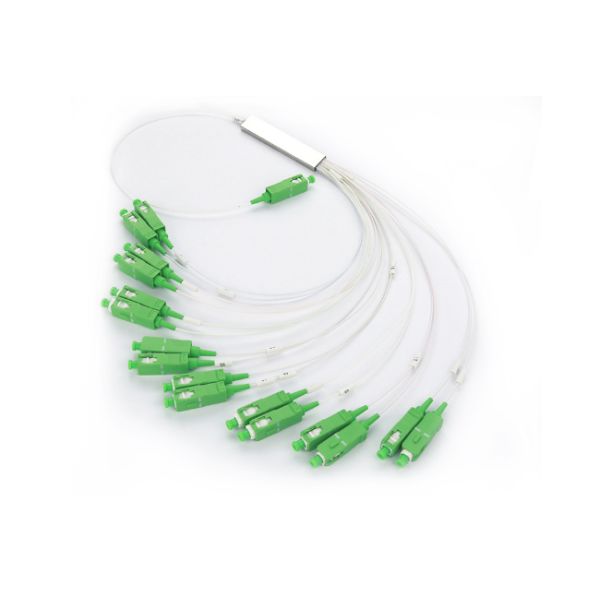

1X16 Blockless Planar Lightwave Circuit PLC SC APC PLC Splitter with Equal Ratio Output for CATV
1X16 Blockless Planar Lightwave Circuit PLC SC APC PLC Splitter with Equal Ratio Output for CATV
1X16 Blockless Planar Lightwave Circuit PLC SC APC PLC Splitter with Equal Ratio Output for CATV
1X16 Blockless Planar Lightwave Circuit PLC SC APC PLC Splitter with Equal Ratio Output for CATV
Specifications
Brand Name :
FURONG
Model Number :
SPLITTER1-16SCA01
Certification :
ROHS, ISO
Place of Origin :
SHENZHEN
MOQ :
1
Price :
negotiable
Supply Ability :
2000/day
Delivery Time :
1-8days
Packaging Details :
plastic tray or box
Connector :
SC, FC, ST, LC, SCAPC, LCAPC, FCAPC
CABLE DIAMETER :
0.9MM
PACKAGE :
STEEL TUBE
CABLE LENGTH :
CUSTOMIZED
SPLITTING RATIO :
EQUAL
WAVELENGTH :
1260-1650
Description

Planar light-wave circuit splitter (PLC Splitter) is a type of optical power management device that is fabricated using silica optical wave-guide technology. It features wide operating wavelength range, good channel-to-channel uniformity, high reliability and small size, and is widely used in FTTX PON to realize optical signal power management.

We provide 1xN and 2xN series of splitters. Three packaging types are available fan-out PLC splitter, module PLC splitter, or rack mount PLC splitter.

Features:

--Adopt high strength stainless steel, pass salt spray test

--Ferrule core is less than 0.5um

--Adopt 100% new raw material, ROHS compliance

--Low Insertion loss

--Low PDL Compact Design

--Good channel-to-channel uniformity

--Wide Operating Wavelength: from 1260nm to 1650nm

--Wide Operating Temperature: from -40℃ to 85℃

Specifications (1XN):

Port Configration 1X2 1X4 1X8 1X16 1X32 1X64
Operating Wavelength (nm) 1260 ~ 1650
Insertion Loss (dB) Typical 3.5 6.8 10.2 13.1 16.2 20.2
Max 4.0 7.4 10.5 13.5 16.9 21.0
Channel Uniformity (dB) 0.5 0.7 1.0 1.4 1.8 2.0
PDL (dB) 0.2 0.2 0.3 0.3 0.3 0.4
WDL (dB) 0.3 0.3 0.3 0.5 0.5 0.8
TDL (-40ºC ~ 85ºC )(dB) 0.5 0.5 0.5 0.8 0.8 1.0

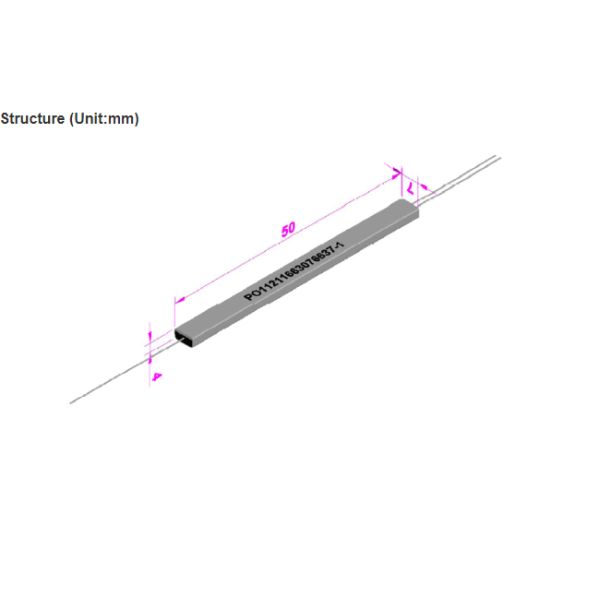

Dimensions for Fan-out (mm) 60(L)X7(W)X4(H) 60X12X4 80(L)X20(W)X6(H)
RL (dB) > 55dB
Directivity (dB) > 55dB
Fiber Type G652D
Operating Temperature Range -40ºC ~ 85ºC

Specifications (2XN):

Port Configration 2X2 2X4 2X8 2X16 2X32 2X64
Operating Wavelength (nm) 1260 ~ 1650
Insertion Loss (dB) Typical 3.8 7.2 10.6 14.0 16.8 20.8
Max 4.2 7.8 11.2 14.6 17.9 21.5
Channel Uniformity (dB) 1.0 1.4 1.5 2.0 2.5 2.5
PDL (dB) 0.2 0.2 0.4 0.4 0.4 0.5
WDL (dB) 0.6 0.6 0.8 0.8 0.8 1.0
TDL (-40ºC ~ 85ºC )(dB) 0.5 0.5 0.5 0.8 0.8 1.0
Dimensions for Fan-out (mm) 60(L)X7(W)X4(H) 80(L)X12(W)X4(H) 80X20X6
RL (dB) > 50dB
Directivity (dB) > 55dB
Fiber Type G652D
Operating Temperature Range -40ºC ~ 85ºC

1X16 Blockless Planar Lightwave Circuit PLC SC APC PLC Splitter with Equal Ratio Output for CATV1X16 Blockless Planar Lightwave Circuit PLC SC APC PLC Splitter with Equal Ratio Output for CATV
