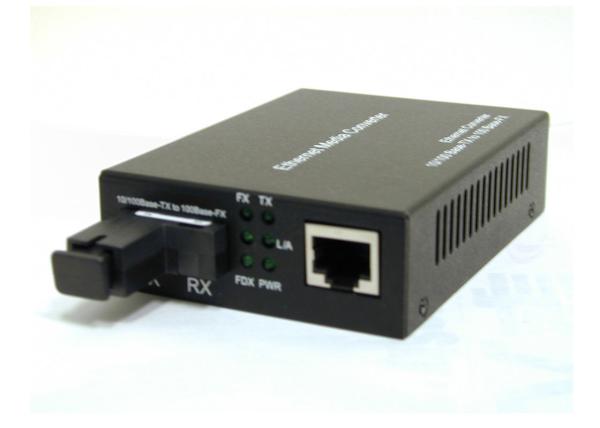

10 / 100M Fiber Optic Ethernet Converter , Single Mode Fiber Media Converter

Description:

Fiber Media Converter is the conversion equipment of Ethernet optical-electronic signals between 10/100M UTP interface (TX) and 100M Fiber interface (FX).

Features:

1. The transmission of a channel optical signals can be completed by single fiber. It has doubled in quantity of fiber data transmission compared with twin fiber type.
2. Auto negotiation function allows UTP port to auto select 10M or 100M and Full Duplex or Half Duplex
3. UTP port supports MDI / MDI-X auto crossover.
4. Supporting flow control
5. Supporting 1552 bytes packet
6. Extend fiber distance up to 2km for multi-mode fiber and 20-120km for single-mode fiber
7. Internal circuit of prevented thunder could greatly reduce damage of the converter caused by thunderbolt induction.
8. Supports link fault pass through function
9. Design of internal or external power supply for selection by end-users

Technical Specification:

1. Operating standard:
   IEEE802.3 10BASE-T Ethernet
   IEEE802.3u 100BASE-TX/FX Fast-Ethernet
   IEEE802.3x
2. MAC address table: 1K
3. Data Buffer :128Kb RAM
4. Connector: UTP: RJ-45,10/100Mbps; Fiber: SC,100Mbps
5. Cable:
   UTP: Cat. 5 UTP (the max distance up to100m)
   Fiber ( Singlemode): 8.3/125, 8.7/125, 9/125, 10/125μm(the max distance up to 90km)
6. Flow control
   Full Duplex:IEEE802.3x
   Half Duplex:back pressure
7. LED: Power, FX 100, FX Link/Act, TX 100, TX FDX, TX Link/Act.
8. Power :Input:AC 110~265V or DC:-36V~-72V
   Output:DC 5V 1A
9. Conversion mode: Medium conversion
10. MTBF: 80,000 hours
11. Ambient temperature: 0 ～ +50℃
12. Storage temperature: -20 ～ +70℃
13. Humidity:5% ～ 90%
14. Dimensions:
    Power external: 26 (high) x 70 (width) x 94 (length) mm
    Power internal type: 30 (high) x 110 (width) x 140 (length) mm

Fiber Information:

Our advantage

1. Professional manufacturer.
2. We provide good quality Fiber Optic solution with manufacture competitive price
3. Best delivery time
4. OEM service provide,Your own logo and own design are welcomed.
5. Long distance factory review by video talk
6. Can be customized production of fiber optic solution
