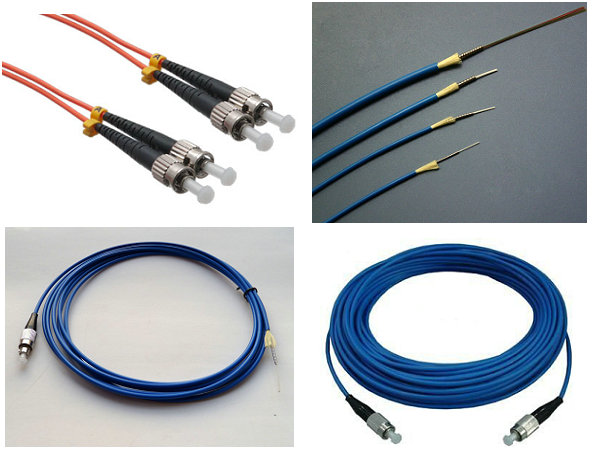

Computer Indoor Fiber Optic Armoured Patch Cord with LSZH Jacket Blue Yellow
Computer Indoor Fiber Optic Armoured Patch Cord with LSZH Jacket Blue Yellow
Computer Indoor Fiber Optic Armoured Patch Cord with LSZH Jacket Blue Yellow
Computer Indoor Fiber Optic Armoured Patch Cord with LSZH Jacket Blue Yellow
Computer Indoor Fiber Optic Armoured Patch Cord with LSZH Jacket Blue Yellow
Computer Indoor Fiber Optic Armoured Patch Cord with LSZH Jacket Blue Yellow
Computer Indoor Fiber Optic Armoured Patch Cord with LSZH Jacket Blue Yellow
Computer Indoor Fiber Optic Armoured Patch Cord with LSZH Jacket Blue Yellow
Computer Indoor Fiber Optic Armoured Patch Cord with LSZH Jacket Blue Yellow
Computer Indoor Fiber Optic Armoured Patch Cord with LSZH Jacket Blue Yellow
Specifications
Brand Name :
FURONG
Model Number :
SC-ST patch cord
Certification :
ROHS
Place of Origin :
Guangdong China
MOQ :
100pcs
Price :
Negotiation
Payment Terms :
Western Union, L/C, T/T
Supply Ability :
30,000 per month
Delivery Time :
3-10 working days after received your payment
Packaging Details :
Per fiber optic patch cord will have Individual Plastic Poly Bag
Fiber Types :
G652D, G655,G657A,G657B,OM1,OM2,OM3, OM4
Optional Connectors :
LC/ SC/FC/ST
Mode :
MultiMode
Insertion Loss :
UPC< 0.2dB, APC<0.3dB
Return Loss (Back Reflection) :
UPC>55dB, APC>65dB
Polishing type :
UPC, APC
Jacket material :
PVC
Outer Diameter :
2.0mm,3.0mm
Description

Computer Indoor Fiber Optic Armoured Patch Cord with LSZH Jacket Blue Yellow

Quick Details:

  1. Type: ST/UPC-ST/UPC-SM-DX-3.0mm-3M
  2. Mode: Single mode and Multimode
  3. Ferrule End-face: PC, UPC, APC
  4. Cable core: Simplex, Duplex
  5. Cable diameter: 0.9mm, 2.0mm, 3.0mm
  6. Cable length: 1m, 2m, 3m….customized

Description:

Armored patch cord can be laid in all kinds of environmental extremes. It is used without protection

tube which saves space and is quite convenient for maintenance. Also it has the construction including

stainless steel tube which protects optical fiber and provide better security for the whole system.

Features:

  1. High tensile coefficient and stress coefficient
  2. Convenient for application, highly security
  3. Application without damage to cable
  4. Manufacture without damage to cable
  5. Cost cutting for maintenance

Applications:

  1. Machine room
  2. FTTH
  3. Area network
  4. Test equipment
  5. National defense
  6. FO sensor
  7. Light communication system
  8. Common antenna TV system

Specification:

Item

Single mode

Ferrule End-face

PC

UPC

APC

Insert attenuation

≤0.3dB

≤0.3dB

≤0.3dB

Return loss

≥45dB

≥50dB

≥55dB

repeatability

≤0.1dB

≤0.1dB

≤0.1dB

Operation temperature

-20°C~+70°C(PVC)/-40°C~+90°C(LSZH/PU)

Outer diameter

1.6mm

Our advantage


1. Professional cable manufacturer.
2. We provide good quality Fiber Optic cable with manufacture competitive price
3. Best delivery time
4. OEM service provide,Your own logo and own design are welcomed.
5. Long distance factory review by video talk
6. Can be customized production of fiber optic cable
7. 30 years cable service life , even 60 years cable service life.

Computer Indoor Fiber Optic Armoured Patch Cord with LSZH Jacket Blue Yellow
