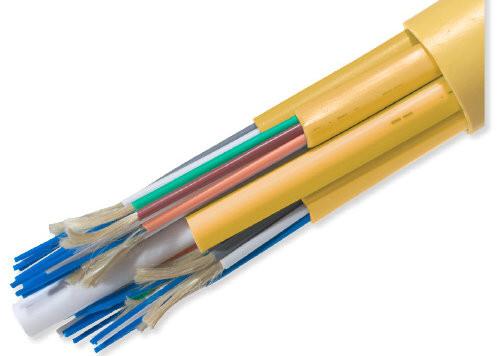

Industrial 16 - 144 Strand Indoor Fiber Optic Cable By The Foot , Flame Retardant

Breakout-style fiberoptic cable (also called breakout cable or fanout cable), is an optical fiber cable containing several jacketed simplex optical fibers packaged together inside an outer jacket. This differs from distribution-style cable, in which tight-buffered fibers are bundled together, with only the outer cable jacket of the cable protecting them. The design of breakout-style cable adds strength for ruggedized drops, however the cable is larger and more expensive than distribution-style cable. Breakout cable is suitable for short riser and plenum applications and also for use in conduits, where a very simple cable run is planned to avoid the use of any splicebox or spliced fiber pigtails.

Because each fiber is individually reinforced, the cable can be easily divided into individual fiber lines. Each simplex cable within the outer jacket may be broken out and then continue as a patch cable, for example in a fiber to the desk application in an office building. This enables connector termination without requiring special junctions, and can reduce or eliminate the need for fiberoptic patch panels or an optical distribution frame. Breakout cable requires terminations to be done with simple connectors, which may be preferred for some situations. A more common solution today is the use of a fanout kit that adds a jacket to the very fine strands of other cable types

Specification

Description

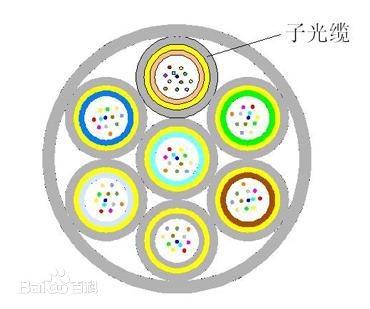

Composed of 6 units of multi-core buffered cables SZ stranded around the central strength member,each unit has independent strength member and jacket.It is SZ intertwisted cable without binding cord

Characteristics

Easy splicing, suitable for large capacity data transmission.

With flame-retardant (or combustion-discontinued ) property.

Outer jacket’s color varies according to the types of optical fibers(indoor use),black color is recommended for outdoor use,options for other colors available upon request.

We can meet different needs of the market and customers.

Applications

Used in door cabling.as fan-out cable

Can be used as lead cable into buildings

Features

1. Good mechanical and environmental performance;

2. Flame-retardant properties to meet the requirements of the relevant standards;

3. The mechanical characteristics meet the requirements of the relevant standards;

4. Soft,flexible,easy to splice,and with big capacity date transmission;

5. Meet various requirements of market and clients.

Our advantage

1. Professional cable manufacturer.
2. We provide good quality Fiber Optic cable with manufacture competitive price
3. Best delivery time
4. OEM service provide,Your own logo and own design are welcomed.
5. Long distance factory review by video talk
6. Can be customized production of fiber optic cable
7. 30 years cable service life , even 60 years cable service life.
