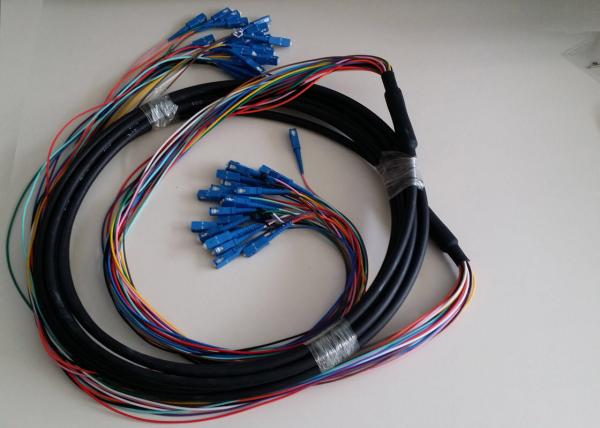

Outdoor 3mm Single Mode And Multimode Fiber Optic Cable Patch Cord 6 Core
Outdoor 3mm Single Mode And Multimode Fiber Optic Cable Patch Cord 6 Core
Outdoor 3mm Single Mode And Multimode Fiber Optic Cable Patch Cord 6 Core
Outdoor 3mm Single Mode And Multimode Fiber Optic Cable Patch Cord 6 Core
Specifications
Brand Name :
FURONG
Model Number :
MPO fiber patch cord
Certification :
ROHS
Place of Origin :
Guangdong China
MOQ :
100pcs
Price :
Negotiation
Payment Terms :
Western Union, L/C, T/T
Supply Ability :
30,000 per month
Delivery Time :
3-10 working days after received your payment
Packaging Details :
Per fiber optic patch cord will have Individual Plastic Poly Bag
Fiber Types :
G652D, G655,G657A,G657B,OM1,OM2,OM3, OM4
Optional Connectors :
LC,SC,FC,ST,MU,MTRJ,MTP,MPO,E2000,ESCON,DIN,D4,SMA,
Mode :
SingldeMode, MultiMode
Insertion Loss :
UPC< 0.2dB, APC<0.3dB
Return Loss (Back Reflection) :
UPC>55dB, APC>65dB
Polishing type :
UPC, APC
Jacket material :
PVC
Outer Diameter :
2.0mm,3.0mm
Description

Outdoor 3mm Single Mode And Multimode Fiber Optic Cable Patch Cord 6 Core

Quick Details:

  1. Type: GYTA Fiber Optic Patch Cord
  2. Mode: Single mode and Multimode
  3. Ferrule End-face: PC, UPC, APC
  4. Cable core: 2core, 4core, 6core...customized
  5. Cable Fan-out: 0.5M, 1M
  6. Cable Fan-out diameter: 0.9mm, 2.0mm, 3.0mm

Description:

Outdoor cable includes 2~144core bare fiber inside. The fan-out could be 0.9mm, 2.0mm and 3.0mm.

And the fan-out cable length is 0.5M or 1M.

Features:

  1. High tensile coefficient and stress coefficient
  2. Convenient for application, highly security
  3. Application without damage to cable
  4. Manufacture without damage to cable
  5. Cost cutting for maintenance

Applications:

  1. Telecommunication networks
  2. Fiber optic communication networks
  3. CATV, LAN, MAN, WAN, Test &Measurement
  4. Optical access network

Specification:

Item

Single mode

Ferrule End-face

PC

UPC

APC

Insert attenuation

≤0.3dB

≤0.3dB

≤0.3dB

Return loss

≥45dB

≥50dB

≥55dB

repeatability

≤0.1dB

≤0.1dB

≤0.1dB

Operation temperature

-20°C~+70°C(PVC)/-40°C~+90°C(LSZH/PU)

Outer diameter

1.6mm

Our advantage


1. Professional cable manufacturer.
2. We provide good quality Fiber Optic cable with manufacture competitive price
3. Best delivery time
4. OEM service provide,Your own logo and own design are welcomed.
5. Long distance factory review by video talk
6. Can be customized production of fiber optic cable
7. 30 years cable service life , even 60 years cable service life.

Product tags

multimode fiber optic patch cord

,

fiber patch cord multimode

,

10g single mode fiber patch cord
