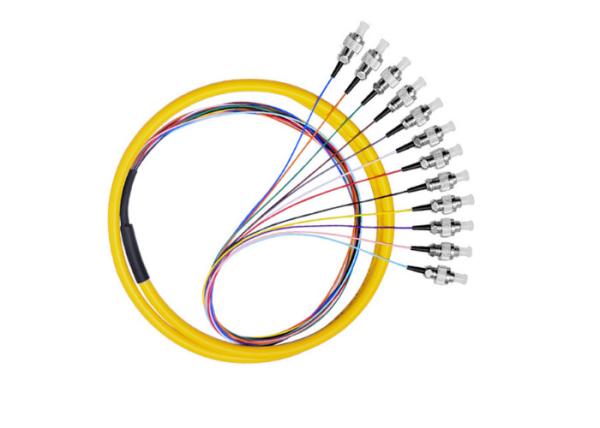

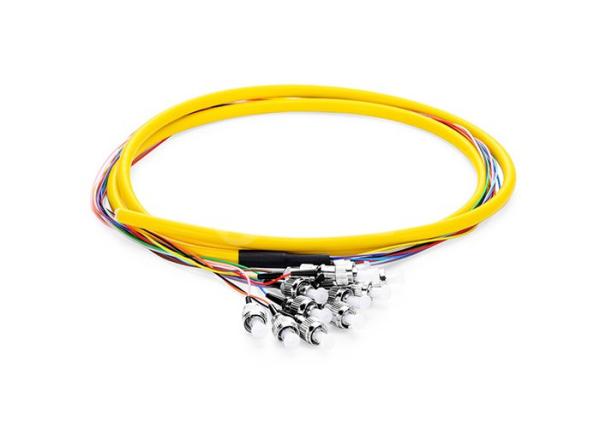

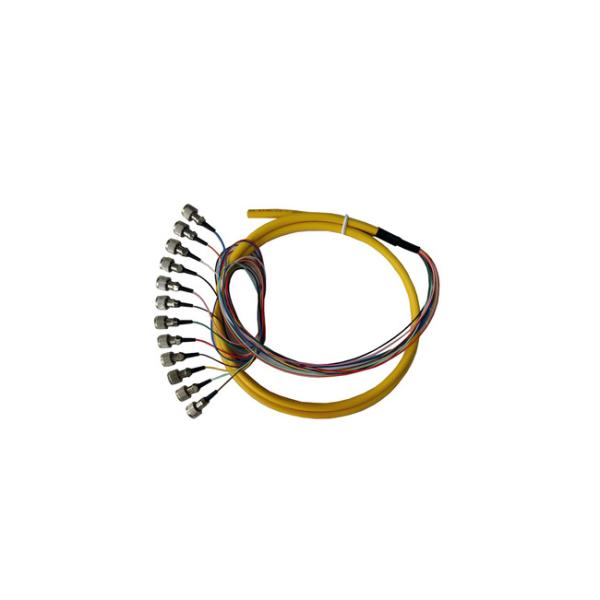

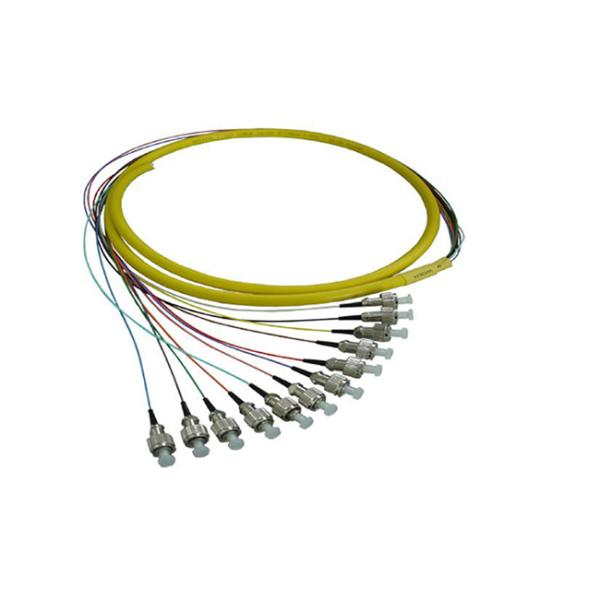

FCUPC 12 core Singlemode Fiber Optic Pigtail Staggered Or Same Length
FCUPC 12 core Singlemode Fiber Optic Pigtail Staggered Or Same Length
FCUPC 12 core Singlemode Fiber Optic Pigtail Staggered Or Same Length
FCUPC 12 core Singlemode Fiber Optic Pigtail Staggered Or Same Length
Specifications
Brand Name :
FURONG
Model Number :
BPIGTAIL-SC1209
Certification :
ROHS, SGS, ISO
Place of Origin :
CHINA
MOQ :
1
Price :
NEGOTIABLE
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
20000PCS
Delivery Time :
DEPENDS ON QUANTITY
Packaging Details :
PE BAG
CABLE CORE :
4-288
INSERTION LOSS :
0.3DB
STRUCTURE :
Staggered or SAME LENGTH
CONNECTOR TYPE :
FCUPC
LENGTH :
CUSTOMIZED
JACKET COLOR :
Yellow OR CUSTOMIZED
Description

Description:

FC 12C bundle fiber optic pigtail is with tight buffered 0.9mm fiber one side terminated with FC UPC or APC connectors. The pigtails are utilised in terminationg optical fibers either by fusion or mechanical splicing. It provides an easy operation, installation and maintainance.

We manufacture a series mutlicore Bundle fanout fiber optic pigtails with SC, FC, ST, E2000, MU ect connectors and fiber inside from 4C to 288C for indoor and outdoor usage for singlemode or multimode.

Features:

1. ST, FC, SC, LC, MPO connectors for option

2. Good Exchange ablility and durability

3. G652D, G657A1, G655, OM1, OM2, OM3, OM4 fiber for option

4. Indoor and outdoor pigtail are available

5. 4-288C for option

6. IEC, SGS, ROHS compliant

7. Easy operation and maintance

Applications for the FC UPC Bundle Fanout fiber optic pigtail:
1. CATV, metro test equipment;
2. Telecommunication networks;
3. FTTX application
4. Wide area networks (WAN);
5. Premise installations;
6. Data processing networks;

Optical Characteristics:

Fiber Type Various SM MM
Connector Type FC, SC, ST, LC, MU FC, SC, ST, LC, MU
Insertion Loss (Typical) ≤0.3dB ≤0.3dB
Return Loss (typical) PC ≥50dB ≥35dB
UPC ≥55dB ≥35dB
APC ≥65dB
Mating Durability ≤0.2dB
Storage Temperature 40℃～+ 80℃
Durability ≥1000 times
Working Temperature - 20℃～+ 80℃

FCUPC 12 core Singlemode Fiber Optic Pigtail Staggered Or Same LengthFCUPC 12 core Singlemode Fiber Optic Pigtail Staggered Or Same Length
