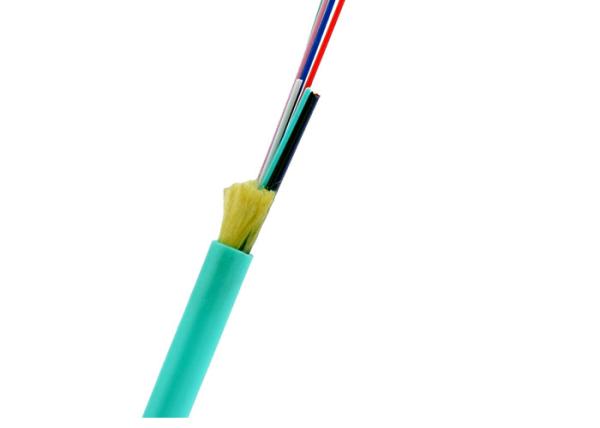

50/125 10 Gigabit Rated Indoor Fiber Optic Cable OM3 Break Out Raiser Rated
50/125 10 Gigabit Rated Indoor Fiber Optic Cable OM3 Break Out Raiser Rated
50/125 10 Gigabit Rated Indoor Fiber Optic Cable OM3 Break Out Raiser Rated
50/125 10 Gigabit Rated Indoor Fiber Optic Cable OM3 Break Out Raiser Rated
Specifications
Brand Name :
FURONG
Model Number :
GJBFJV
Certification :
ISO, SGS, ROHS
Place of Origin :
GUANGDONG
MOQ :
1000M
Price :
NEGOTIABLE
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
2000KM/DAY
Packaging Details :
2KM/ROLL
OUTER JACKET :
PVC, LSZH, OFNP
Stucture :
Tight Buffered
APPLICATION :
Indoor
OEM :
LOGO, COMPANY NAME, PART NUMBER CUSTOMIZED
Color :
Yellow , Orange, Aqua or Customized
Fiber Type :
SM, MM
Description

Description

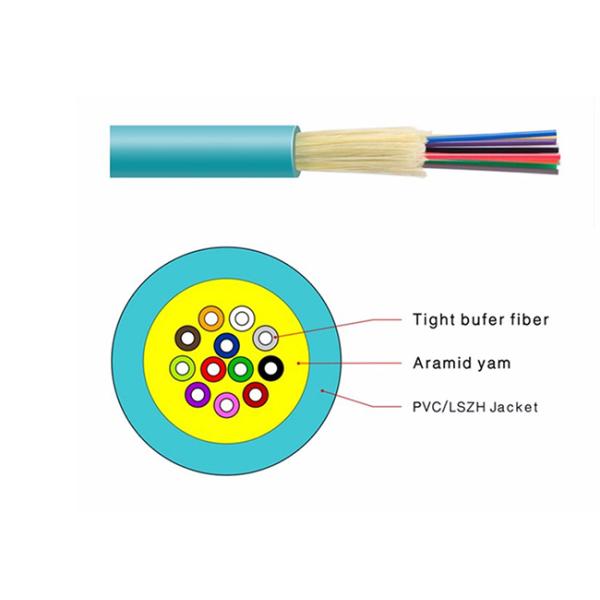

Distribution tight buffered, fiber optic cable is designed for installation in plenum, riser and horizontal environments and inter-building backbone structures. These all-dielectric, tight buffered, office distribution cables are constructed with colour coded, 900 micron, buffered fibres, surrounded by E-glass and/or aramid yarn strength members, within PVC, LSZH, OFNP outer jacket, compliant with IEC fire performance requirements.

4 - 24 core cables are simply but robustly constructed in a single unit.OM3 cable is suitable for running 10/100, Gigabit & 10 Gigabit Ethernet data communications.

Features:

--900 µm buffered fibers surrounded by aramid yarns

--All dielectric

--PVC, LSZH, OFNP Rated

--Flexible, small diameter, 900 µm tight buffered construction

--High tensile strength, crush resistant

--1500/500MHz.km Bandwidth

Application:

1.Indoor any purpose cabling;

2.Backbone distribution cable in building.

3.Installation: wall, interlayer, pipe, trough, duct

Fiber Cable Characteristics:

Technical Specification
Optical Performance:
Size Wavelength (nm) Attenuation (dB/km) Bandwidth (MHz/km)
50/125 850 <2.5 >1500
1300 <0.7 >500

Mechanical Performance:
No. fibres OD mm Min bend radius
Loaded / installed		 Max tensile load (N)
Short term / long term		 Weight kg/km
4 5.3 80 / 53 660 / 300 27
8 6.0 90 / 60 660 / 300 37
12 7.1 106 / 71 660 / 300 47
16 8.4 126 / 84 660 / 300 68
24 11.1 167 / 111 1320 / 600 78
