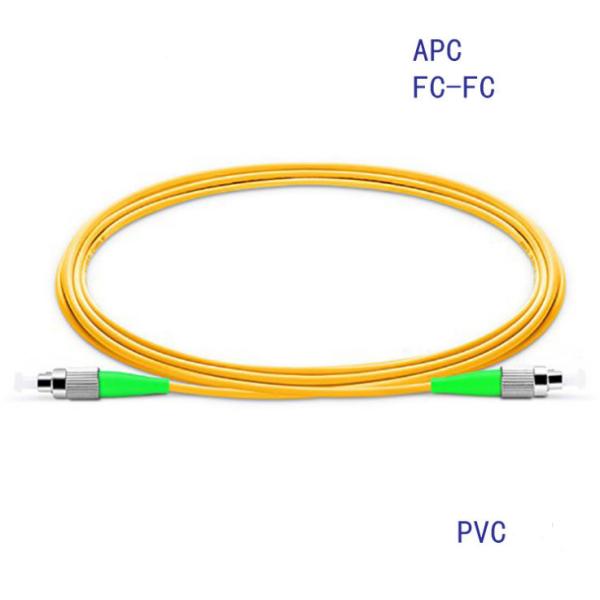

High Quality FC-FC/APC Single Mode Simplex Fiber Optic Patch Cord With High Return Loss
High Quality FC-FC/APC Single Mode Simplex Fiber Optic Patch Cord With High Return Loss
High Quality FC-FC/APC Single Mode Simplex Fiber Optic Patch Cord With High Return Loss
High Quality FC-FC/APC Single Mode Simplex Fiber Optic Patch Cord With High Return Loss
High Quality FC-FC/APC Single Mode Simplex Fiber Optic Patch Cord With High Return Loss
High Quality FC-FC/APC Single Mode Simplex Fiber Optic Patch Cord With High Return Loss
High Quality FC-FC/APC Single Mode Simplex Fiber Optic Patch Cord With High Return Loss
High Quality FC-FC/APC Single Mode Simplex Fiber Optic Patch Cord With High Return Loss
High Quality FC-FC/APC Single Mode Simplex Fiber Optic Patch Cord With High Return Loss
High Quality FC-FC/APC Single Mode Simplex Fiber Optic Patch Cord With High Return Loss
Specifications
Brand Name :
FURONG Or OEM Or ODM
Model Number :
FC-FC/APC
Certification :
ISO/ROSH
Place of Origin :
China
MOQ :
10
Price :
$0.8-1/pcs
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
9000pcs/day
Delivery Time :
3-5 days
Packaging Details :
Plastic Bag
Color :
Yellow or Customized
Jacket Material :
PVC or LSZH
Product Name :
FC-FC/APC Connector Fiber Jumper
Quality Control :
100% Testing Before Shipment
Cable Diameter :
3mm,2mm,0.9mm
Description

Optical Fiber Cable Features
1. PC, UPC, APC polished
2. Male, female optional(For MPO MTRJ)
3. High return loss, low insertion loss
4. High reliability, high temperature stability
5. Good exchangeability
6. Push pull structure, compact size, dense type

Optical Fiber Cable Applications
* CATV, Metro, Test equipment
* Telecommunication networks
* Wide Area networks(WANS)
* Data processing networks
* Local area netwirks(LANS)
* Premise installations

Fiber Optic Patch Cord Technical Standard:
Insertion Loss: PC≤0.3dB, UPC≤0.3dB, APC≤0.3dB ;
Return Loss: SM PC≥50dB, UPC≥55dB, APC≥60dB; MM PC≥35dB, UPC≥35dB
Interchangeability: ≤0.2dB
Salt Spray : ≤0.2dB
Repeatability : (1000 times) ≤0.1dB
Vibration: (550Hz 1.5mm) ≤0.1dB
High Temperature : ( +85 sustain 100 hours) ≤0.2dB
Low Temperature : (-40 sustain 100 hours) ≤0.2dB
Temperature Circularly: (-40+85 sustain 100 hours) ≤0.2dB
Humidity : (+25+65 93 R.H.100 hours) ≤0.2db
Apex Offset: 0μm≤≤50μm
Radius of Curvature: 7mm≤≤25mm
Cable TypeSimplex, Duplex, Fan-Out;

Technical parameter

Characteristic SM , MM
Connector type FC/SC/ST/LC/MU/MT-RJ/ESCON/E2000
Diameter(mm) 0.9,2.0,3.0
Polishing grade SM PC MM PC UPC APC
Insertion loss ≤0.3dB ≤0.3dB ≤0.3dB ≤0.3dB
Return loss ≥40dB ≥55dB ≥60dB
Interchangeability ≤0.2dB
Repeatability ≤0.2dB
Operation temperature -40~+80
