100G 200G 8 Channel G652D SC WDM CWDM DWDM
100G 200G 8 Channel G652D SC WDM CWDM DWDM
100G 200G 8 Channel G652D SC WDM CWDM DWDM
100G 200G 8 Channel G652D SC WDM CWDM DWDM
100G 200G 8 Channel G652D SC WDM CWDM DWDM
100G 200G 8 Channel G652D SC WDM CWDM DWDM
Specifications
Brand Name :
CY COM
Model Number :
8 DWDM
Certification :
ISO9001:2015, ISO14001:2015, ROSH
Place of Origin :
Shenzhen China
MOQ :
20pcs
Payment Terms :
T/T, Western Union
Supply Ability :
500PCS/day
Delivery Time :
5-8 days
Packaging Details :
PE foam and carton box
Channel :
8
Wavelength :
1530.33~1560.61（21~59 TU grid）
Fiber Type :
G652D，G657A or others
Pigtail diameter :
Bare fiber /900um loose or tight tube
Pigtail length :
0.5m/1m/1.5m/2m
Connector :
None/SC/FC/LC/ST or others
Description

100G 200G 8 Channel G652D SC WDM CWDM DWDM

50G/100G/200G 8 Channel Dense Wavelength Division MultiplexingMux or DeMux

1. Product information

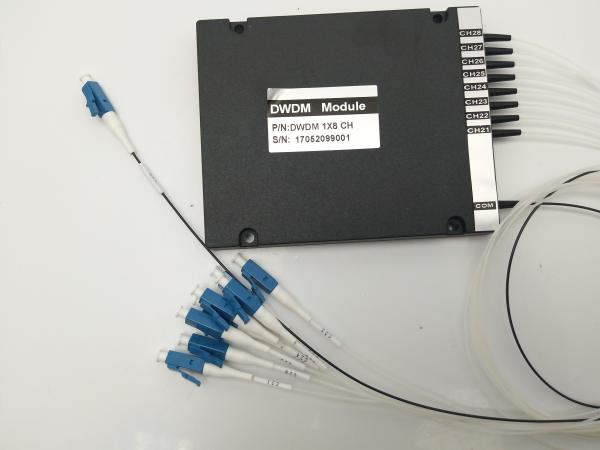

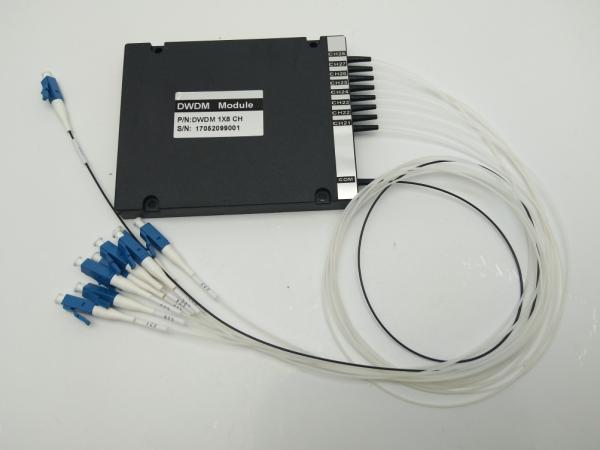

Description: 1×8CH DWDM Mux/Demux,900um(2.0mm,3.0mm),1m with customized connector,100×80×10mm ABS package

2. Specification:

Parameters Unit Specifications
Channel Count Ch 8
Channel Center Wavelength nm

C45,43,41,39,37,35,33,31
Channel Passband Min nm ±0.5
Insertion Loss Max dB <2.5
Isolation Adjacent Channel Min dB 30
Non-Adjacent Channel Min dB 40
Passband Ripple Max dB 0.3
Polarization Dependent Loss Max dB 0.1
Directivity Min dB 55
Return Loss Min dB 50
Polarization Mode Dispersion Max ps 0.1
Power Handling Max mW 500

Pigtail and Connector Type

 COM 0.9/mm black loose tube with connector
Other ports 0.9mm white loose tube with connector
Fiber Type SMF-28e
Fiber length m ≥1
Operating Temperature °C -40 ~ 110
Storage Temperature °C -40 ~ 85
Package Dimension mm (L)100×(W)80×(H)10

Remark:Specifications include connector.

3. Package drawing:

100G 200G 8 Channel G652D SC WDM CWDM DWDM100G 200G 8 Channel G652D SC WDM CWDM DWDM

4. Configuration drawing:

100G 200G 8 Channel G652D SC WDM CWDM DWDM
