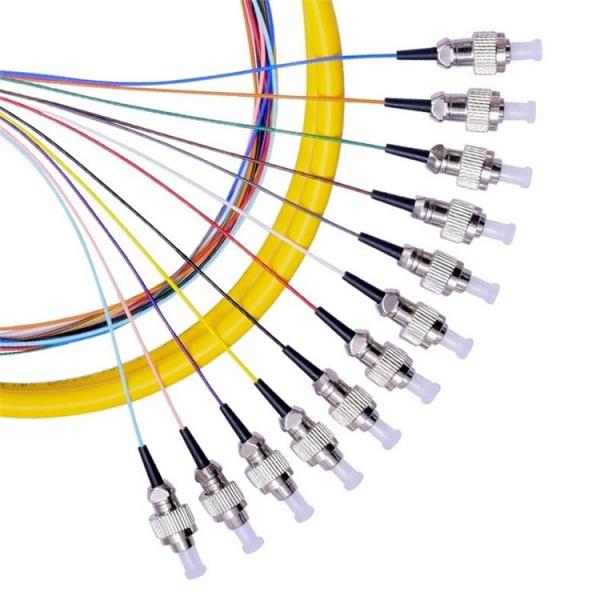

850nm 1310nm FC SC MultiMode 3.0mm Fiber Optic Pigtail
850nm 1310nm FC SC MultiMode 3.0mm Fiber Optic Pigtail
850nm 1310nm FC SC MultiMode 3.0mm Fiber Optic Pigtail
850nm 1310nm FC SC MultiMode 3.0mm Fiber Optic Pigtail
850nm 1310nm FC SC MultiMode 3.0mm Fiber Optic Pigtail
850nm 1310nm FC SC MultiMode 3.0mm Fiber Optic Pigtail
Specifications
Brand Name :
CY COM
Model Number :
ST
Certification :
ISO9001:2015 , ISO14001:2015, RoHS,SGS
Place of Origin :
Shenzhen China
MOQ :
10PCS
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
30000pcs per day
Delivery Time :
3-5 working days
Packaging Details :
PE bag or plastic box and Carton box
Connector :
SC,FC,LC,ST
Insertion loss :
IL<0.2db
Length :
1m or customized
Fiber type :
G652D/G657A1/G657A2 etc.
Connector type :
FC SC ST LC
Cable diameter :
0.9/2.0/3.0mm
Description
850nm 1310nm FC SC MultiMode 3.0mm Fiber Optic Pigtail
FTTH Multi-mode 0.9 Loose Tube Fiber Optic Pigtail 12 Core Bundle st Pigtail Patch Cord with LC Connectors
Description:
Fiber pigtails are a great solution for fusion splicing inside of a fiber optic enclosure. The ribbon fan-out fiber pigtails come with a partial outer jacket to help protect the tight buffer fibers from being damaged. If space is a premium, the outer jacket can easily be removed, allowing the pigtails to have a tighter bend radius and take up less space.
Features :
Complying with IEC, Telcordia GR-326-CORE, YD-T 1272.3-2005,standard.
Low insertion loss, high return loss
Good in repeatability and exchangeability
High dense connection, easy for operation
Application:
Telecommunication
Computer networks
CATV networks Active device termination
Instrumentation

Parameters

arameter: Single mode Multi mode(optional)
Insertion Loss ≤0.3dB ≤0.20dB
Return Loss

≥45 dB (PC)

≥50 dB (UPC)

≥60 dB (APC)

≥35 dB (PC)

≥45 dB (UPC)
Wavelength 1310nm,1550nm 850nm,1310nm
Repeatability ≤0.1
Durability ≤0.2 dB typical change, 1000 matings
Interchangeability ≤0.2dB
Cord diameter 3.0mm
Connector Available SC,FC,ST,LC,MU,MTRJ
Fiber core available 4,6,8,12,24 fiber…
