1310nm Network Multimode Duplex MPO MTP Patch Cord
1310nm Network Multimode Duplex MPO MTP Patch Cord
1310nm Network Multimode Duplex MPO MTP Patch Cord
1310nm Network Multimode Duplex MPO MTP Patch Cord
1310nm Network Multimode Duplex MPO MTP Patch Cord
1310nm Network Multimode Duplex MPO MTP Patch Cord
Specifications
Brand Name :
CY COM
Certification :
ISO9001:2015 ;ROSH
Place of Origin :
Shenzhen China
MOQ :
20pcs
Payment Terms :
Western Union, T/T
Supply Ability :
2K/Month
Delivery Time :
4-8 days
Packaging Details :
Carton and Wooden
Apply port :
SC Simplex or Duplex / MPO Simplex
Capacity :
12core
Size :
180 x 90 x 30 (mm)
Material :
Metal / ABS
Color :
Black
Application :
Network, Telecommunications
Fiber Type :
Singlemode / Multimode
Adapter :
Beige / Blue / Green /Auqa / purple
Description

1310nm Network Multimode Duplex MPO MTP Patch Cord

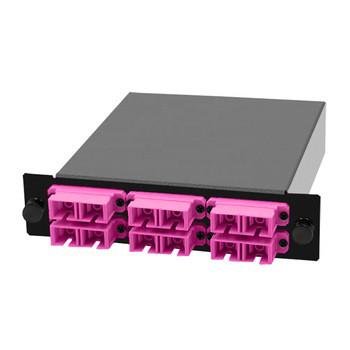

12F Optic fiebr MPO MTP Cassette Modules equipped with SC Patch Panel Simplex Duplex connector

Introduction:

MPO cassette module is mainly used to divide the 12 fibers MPO connector of the pre-assembled terminal end to the simplex or duplex standard connector. By using the simplex or duplex patch cord ,the output of the module can be directly connected with the equipments , frame or client’s end.

This transition module is characterized by single core or double core port in module front, 12 core SC simplex and LC duplex connectors are optional, one or two adapters are installed on the back, nodule is transition patch cord, directly connected the module front panel with the back of the adapter

Features:

High-density and small desing, Easy and fast installation

Available in 12/24/48 fiber versions.

Field connections with guaranteed quality and simplifies fiber routing.

Modular system management, easy reconfiguration for moves, adds and changes.

Customized fiber polarity in the module.

Application:

Data communication network
Optical System Access network
Storage area networking fiber channel
High density architectures

1310nm Network Multimode Duplex MPO MTP Patch Cord

PERFORMANCE OF ASSEMBLIES

MPO Connector

FIBER TYPE SINGLE MODE MULTI-MODE
Insertion Loss Typical(dB) 0.35 0.35
Maximum(dB) 0.75 0.75
Low Insertion Loss Typical(dB) 0.10 0.10
Maximum(dB) 0.35 0.35
Return Loss(dB) ≥60(APC) ≥20(PC)
≥50(PC)
Male/Female Male :have pin Female :no pin
Durability(dB) ≤0.2 500matings
Working Temperature(℃) -20~+70
Testing Wavelength(nm) 1310

LC/SC/FC and other Connectors

FIBER TYPE SINGLE MODE MULTI-MODE
Connector Type PC APC PC
Insertion Loss(dB) ≤0.3
Return Loss(dB) ≥50 ≥60 ≥35
Durability (dB) ≤0.2 1000matings
Working Temperature(℃) -20~+70
Testing Wavelength(nm) 1310
Our Service :
1. Advanced production and testing equipments;
2. Professional manufacturer, 100% tested;
3. Full compliance with ISO 9001:2015 quality management system and RoHS ;
4. Our company has experienced professiona R&D and Sales team
5. Provide reliable solutions and satisfactory services
6. Warmly services with careful attentions.
1310nm Network Multimode Duplex MPO MTP Patch Cord

1310nm Network Multimode Duplex MPO MTP Patch Cord
