72 Strand GYTA53 Outdoor Fiber Optic Cable With Two PE Sheath / One Steel Tape
72 Strand GYTA53 Outdoor Fiber Optic Cable With Two PE Sheath / One Steel Tape
72 Strand GYTA53 Outdoor Fiber Optic Cable With Two PE Sheath / One Steel Tape
72 Strand GYTA53 Outdoor Fiber Optic Cable With Two PE Sheath / One Steel Tape
Specifications
Brand Name :
Fiberall or OEM
Model Number :
FA-OC-GYTY53-72
Certification :
RoHS, UL
Place of Origin :
China
MOQ :
2KM
Price :
Negotiable
Payment Terms :
L/C,T/T,Western Union
Delivery Time :
5-10 days
Packaging Details :
Drum
Product Name :
Outdoor Fiber Optical Cable
Colored Fiber :
250um
Armour :
Corrugated Steel Tape
Inner Sheath :
PE
Outer Jacket :
PE
Strengthen Member :
Steel Wire
Cable shape :
Circular
Application :
Buried, Aerial, Duct
Description

FA-OC-GYTY53-72, 72 Cores GYTY53 Outdoor Optical Fiber Cable, Stranded Loose Tube, with Corrugated Steel Tape (Armour),One PE Inner Sheath and One Outer PE Jacket, with steel wire central strength member

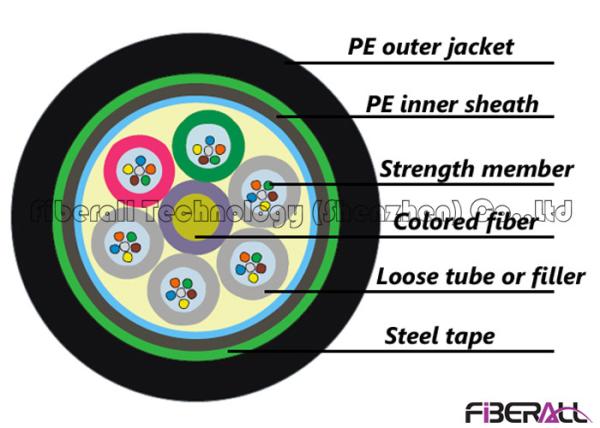

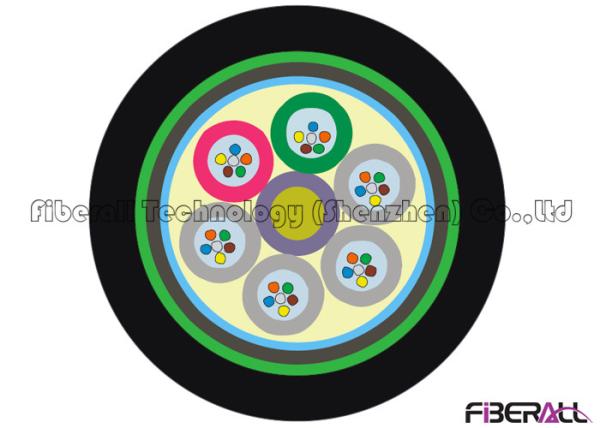

The GYTY53 Outdoor Fiber Optic Cable is with a single wire in the center of the cable as strengthen member, the loose tube with colored fibers and jelly inside stranded surround the single wire and form to be a circular cable core, a layer of PE sheath wrap the cable core and a layer of corrugated steel tape added outside the inner sheath and the tape act as a water barrier and it also enhance the tension and crush resistance of the fiber cable. And finally a black PE jacket wraps the steel tape and form it to be a completed fiber optic cable.

Main Features Of FA-OC-GYTY53-72

1, Recommend laying method : direct buried;

2, Good mechanical and temperature performance;

3, High strength loose tube is hydrolysis resistant;

4, Special tube filling compound ensure critical protection for fiber;

5, Metallic central strengthen member ( single phosphate steel wire);

6, Measures to ensure the cable waterproof performance : filling compound inside loose tube; 100% cable core filling; steel tape with plastic coating enhancing moisture-proof ability; Water blocking materials;

7, Compliant standard: YD/T 901-2001 (China) and IEC 60794-1 (International);

8, Dual layers PE jacket ( inner sheath and outer sheath );

9, Excellent Crush resistance and flexibility;

10, Single corrugated steel tape provides excellent anti-crush and rodent-proof ability.

Cable Parameters

Model Fiber account OD(mm) Tube account Nominal Weight (kg/km) Max.Tension (N) Max. Crushing Resistance (N/100 )
Short-term Long-term Short-term Long-term
GYTY53 2--60 12.0±0.5 5 145 3000 1000 3000 1000
GYTY53 62--72 13.0±0.5 6 196 3000 1000 3000 1000
GYTY53 74--96 14.0±0.5 8 230 3000 1000 3000 1000
GYTY53 98--120 16.0±0.5 10 270 3000 1000 3000 1000
GYTY53 122--144 18.5±0.5 12 360 3000 1000 3000 1000
