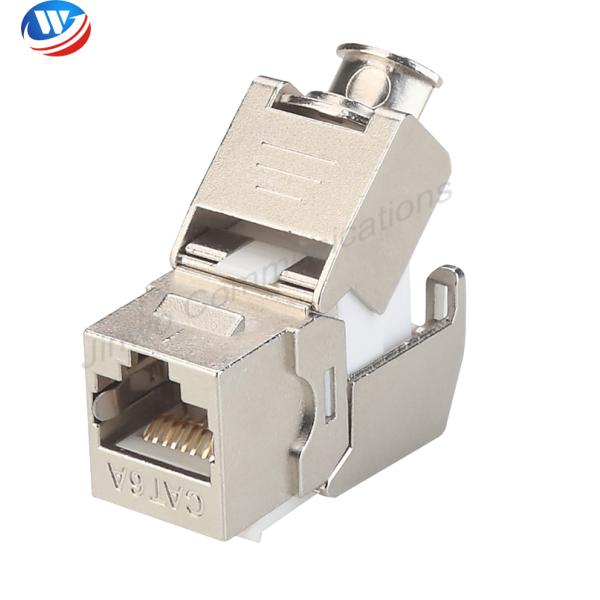

Insulation Resistant CAT6A RJ45 Keystone Jack Shielded Toolless Keystone Jack
Insulation Resistant CAT6A RJ45 Keystone Jack Shielded Toolless Keystone Jack
Insulation Resistant CAT6A RJ45 Keystone Jack Shielded Toolless Keystone Jack
Insulation Resistant CAT6A RJ45 Keystone Jack Shielded Toolless Keystone Jack
Specifications
Brand Name :
JINWO
Model Number :
JW-KJ6A-122
Certification :
ISO9001
Place of Origin :
NINGBO
MOQ :
1000pcs
Price :
negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
10000pcs each month
Delivery Time :
8work day
Packaging Details :
1pc/polybag,50pcs/inner box
Product Name :
RJ45 Keystone Jack
Type :
RJ45
Plating :
Gold Plating
Material :
Metal
Category :
CAT5e / CAT6 / CAT6A /CAT7
Install :
Straight Through
High Light :
Shielded STP Keystone Jack, CAT7 STP Keystone Jack, CAT6A RJ45 Toolless Keystone Jack
Description

CAT6A RJ45 Toolless Shielded STP Keystone Jack

Used for network communication in telecommunication field-cabling systems,

Gigabit Ethernet, together with Patch Panel, Face
Plate, Patch Cord, Cable Management, Cat5e/Cat6 Cables, etc
Electrinic Voltage Rating :125 VAC RMS
Current Rating : 1.5AMP
Contact Resistance:110 Milliohs MAX.
Insulation Resistance:1 000 megohms MIN 500 VDC
Dielectric Strength :750 VAC RMS 60Hz ,1 MIN
Environment Storge: -40~ 85°c
Operation: 0~70°c
Machanical Housing Material: PBT-UL90V-0
Panel Fram: Carbon Steel, Powder Coating in black color
Contact Material: PC-UL90V-0
Contact: Phosphor Bronze with Nickel Plating
RJ45 Jack:IFE:750 times MIN.
IDC Life :200 times MIN.
Wire:AWG 24-26
Tia Cat.5e Perm Link Test: Worst Pair NEXT Margin ≥3dB
Retentiveness of insertion structure:50N 60±5s

  • Electrical:
  • Voltage rating: 125V AC rms
  • Current rating: 1.5Amp
  • Contact resistance: 100m Ohms (maximum)
  • Insulation resistance: 1,000M Ohms (minimum) at 500V DC
  • Dielectric strength: 750V AC rms, 60Hz and one minute
  • Environment:

    Cat3 Cat5e Cat6 keystone jack white

    Storage temperature: -40 to +85°C

    Operating temperature: 0 to 70°C

    Conform to TIA/EIA 568B category 5e

  • Mates with modular plug conforming to FCC part 68 and subpart F
  • Mechanical:
    • Housing material: PC UL94V-0
    • Inner material: flame-retardant ABS UL94V-0
    • PCB material: FR-4
    • Thickness: 1.6mm
    • Contact material: phosphor bronze stamp and PIN T=0.35mm
    • IDC contact material: phosphor bronze, T=0.50mm with nickel plating
    • Wire: 24 to 26AWG

  • Payment mothod Accepted:

    1) Paying with Paypal

    2) Paying with Westunion

    3) Paying with T/T Bank

    Shipping and delivery details:

    1); :sample or trial order: 2 working days

    2): Official order: 5 days after paymen

    3): Package: PE bag, or Customized with Blister or Slide Card or Gift box etc

    Warranty and terms:

    Warranty year is 1 year under normal use!
