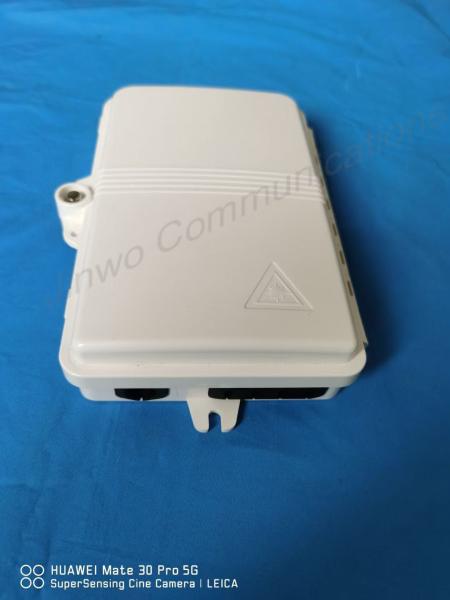

White 4 Core Fiber Optic Termination Box IP65 Outdoor Fiber Optic Distribution Box
White 4 Core Fiber Optic Termination Box IP65 Outdoor Fiber Optic Distribution Box
White 4 Core Fiber Optic Termination Box IP65 Outdoor Fiber Optic Distribution Box
White 4 Core Fiber Optic Termination Box IP65 Outdoor Fiber Optic Distribution Box
White 4 Core Fiber Optic Termination Box IP65 Outdoor Fiber Optic Distribution Box
White 4 Core Fiber Optic Termination Box IP65 Outdoor Fiber Optic Distribution Box
White 4 Core Fiber Optic Termination Box IP65 Outdoor Fiber Optic Distribution Box
White 4 Core Fiber Optic Termination Box IP65 Outdoor Fiber Optic Distribution Box
Specifications
Brand Name :
JINWO
Model Number :
JW-FB-007
Certification :
ROHS
Place of Origin :
NINGBO,CHINA
MOQ :
100
Price :
negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
50000pcs each month
Delivery Time :
8work days
Packaging Details :
Noraml Or Request Packing
Type :
Fiber Optic Distribution Box
Material :
ABS
Color :
White
Connector :
SC
Install :
Wall mounted
Numbers Of Adapter :
4PCS
Size :
210*130*40mm
Splitter :
1*4 Splitter
Description

FTTH Networking Outdoor Fat 4 Core Terminal Box Fiber Optic Distribution Box​

Supply Ability
Supply Ability
5000 Piece/Pieces per Month 4 core terminal box
Packaging & Delivery
Packaging Details
Packing of ftth optical node 4 ports olt gpon box:1pcs/box
50pcs/CTN
Carton size:40*29*56cm
Weight:16Kg
Port
Ningbo/Shanghai
Lead Time:
Quantity(Pieces) 1 - 5000 >5000
Est. Time(days) 15 To be negotiated
Product name
Terminal box ftth 4 ports ftth optical node 4 ports olt gpon box
Application
FTTH
Material
ABS
Size
210*130*40mm
Connector
SC
No. Of fiber
4
Install
Wall mounted
Color
White
Protection
IP 65
Splitter
1*4 splitter
Numbers of adapter
4pcs
Product Introduction Fiber optic distribution box applied to FTTH that links in the access of the terminal system, especially suitable for the outdoor wall hanging or hoop type. Feature * Design of double layer structure, the upper layer is the optical splitter wiring layer, the lower layer is the fiber fusion layer. * Easy to operate. Usually installed as wall mounted in the building or at the green belt. * The optical splitter module is designed of modular drawer type, and it has high interchangeability and generality. * SMC complex plastic or Cold rolled plate without material optional. * Fixed cable and protection. * Protect optical fiber splice joint. * Termination function of fiber core. Application * Telecommunication Networks. * Communication System. * Test Equipment. * Fiber CATV. * FTTH.
White 4 Core Fiber Optic Termination Box IP65 Outdoor Fiber Optic Distribution Box
