1.25/2.5mm SM/MM Ceramic Ferrule for LC/SC Fiber Connector Fiber Optic Equipment With Flange
1.25/2.5mm SM/MM Ceramic Ferrule for LC/SC Fiber Connector Fiber Optic Equipment With Flange
1.25/2.5mm SM/MM Ceramic Ferrule for LC/SC Fiber Connector Fiber Optic Equipment With Flange
1.25/2.5mm SM/MM Ceramic Ferrule for LC/SC Fiber Connector Fiber Optic Equipment With Flange
1.25/2.5mm SM/MM Ceramic Ferrule for LC/SC Fiber Connector Fiber Optic Equipment With Flange
1.25/2.5mm SM/MM Ceramic Ferrule for LC/SC Fiber Connector Fiber Optic Equipment With Flange
1.25/2.5mm SM/MM Ceramic Ferrule for LC/SC Fiber Connector Fiber Optic Equipment With Flange
1.25/2.5mm SM/MM Ceramic Ferrule for LC/SC Fiber Connector Fiber Optic Equipment With Flange
1.25/2.5mm SM/MM Ceramic Ferrule for LC/SC Fiber Connector Fiber Optic Equipment With Flange
1.25/2.5mm SM/MM Ceramic Ferrule for LC/SC Fiber Connector Fiber Optic Equipment With Flange
Specifications
Brand Name :
TTIFIBER
Model Number :
fiber ferrule
Certification :
CE/ROHS/ISO9001
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
20000pcs/day
Delivery Time :
60 working days
Packaging Details :
PE bag
Product name :
fiber ferrule
OD :
1.25 / 2.5mm
Material :
ceramic
Connector type :
SC / LC /ST /FC
Core type :
singlemode / multimode
Package :
PE bag
Description

1.25/2.5mm SM/MM Ceramic Ferrule for LC/SC Fiber Connector Fiber Optic Equipment With Flange​

Specification:
Outer diameter: (1.2499±0.0005)mm
Inner diameter: (0.125+0.001/-0)mm
Concentricity: 1.0μm
Insertion loss:≤0.2dB
return loss:≥60dB
length:(6.50±0.05)mm
Brief Introduction:
Ferrule is generally treated as the core part of the connector. Zirconia ceramic ferrules are recognized to have the best durability and reliability among various kinds of material. Ferrule is the best connection way for a fiber communication at present.

Materail:
Ferrule: Zirconia Ceramic
Flange: Ni-Plated Cu
Features:
Good compatibility
Accurate mechanical dimensions
Good reliability and stability
Compliant with RoHS, Bellcore, IEC
Application:
Telecommunication
CATV
LAN (including FTTx)
Data network

Specification
Parameter Single Mode Multi Mode
Outside Diameter Ø2.4990
OD Tolerance ±0.0005 ±0.001
Inner Diameter Ø0.125
ID Tolerance +0.001/0 +0.004/0
Ferrule Length 10.5±0.05 10.5+0.05/-0.1
Concentricity ≤0.001 ≤0.004
End Curve Radius 15+10/-5

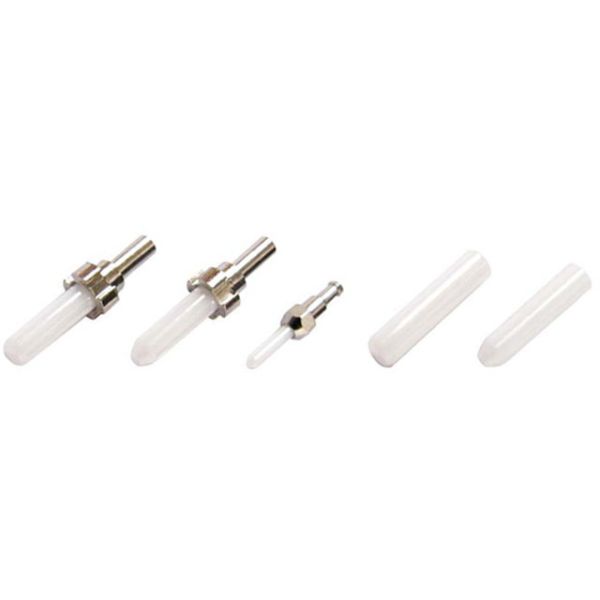

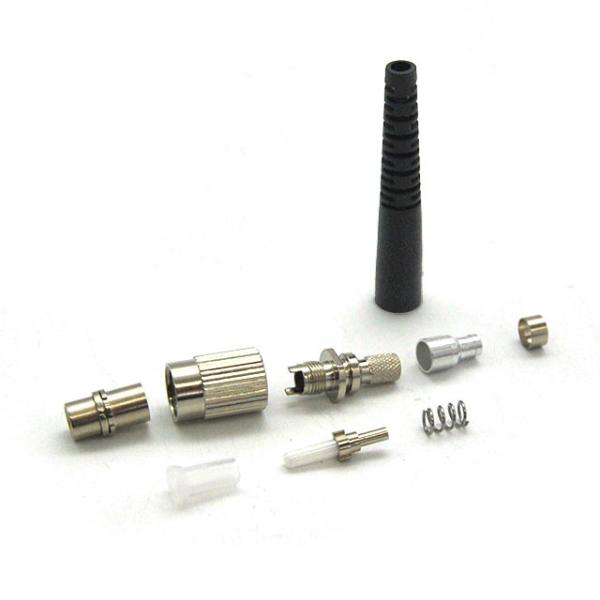

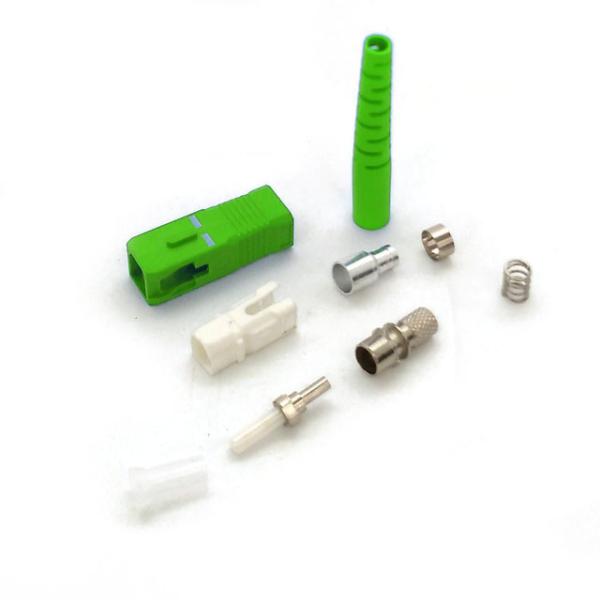

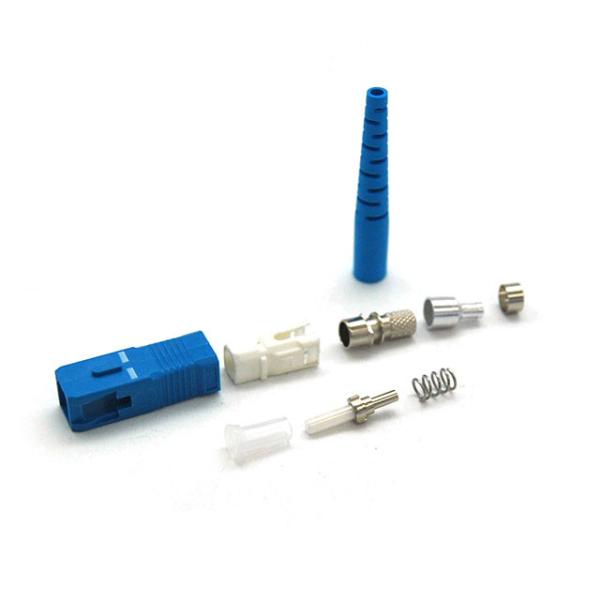

Product pictures
1.25/2.5mm SM/MM Ceramic Ferrule for LC/SC Fiber Connector Fiber Optic Equipment With Flange1.25/2.5mm SM/MM Ceramic Ferrule for LC/SC Fiber Connector Fiber Optic Equipment With Flange
1.25/2.5mm SM/MM Ceramic Ferrule for LC/SC Fiber Connector Fiber Optic Equipment With Flange

1.25/2.5mm SM/MM Ceramic Ferrule for LC/SC Fiber Connector Fiber Optic Equipment With Flange
