Specifications
Brand Name :
TTI Fiber
Model Number :
GJYXCH Fiber Optic Drop Cable
Certification :
ROHS,CE,ISO14001,ISO9001
Place of Origin :
China
MOQ :
1000
Price :
Negotiable
Payment Terms :
D/A, D/P, T/T...
Supply Ability :
100000 meters
Delivery Time :
5-8 Work Days
Packaging Details :
Standard Package(Surport OEM/ODM)
Product Name :
GJYXCH Fiber Optical Drop Cable
Application :
Outdoor Fiber Optic Cable
Color :
Black
Material :
LSZH PE
Fiber Type :
G652D G657A1 G657A2
Use :
FTTX
Length :
Customizted
Quality Control :
100% Test Before Shipping

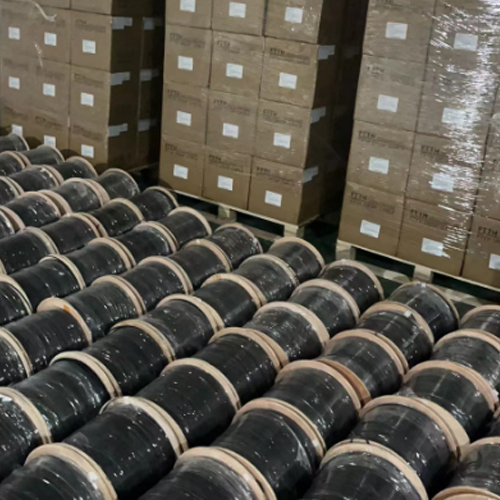

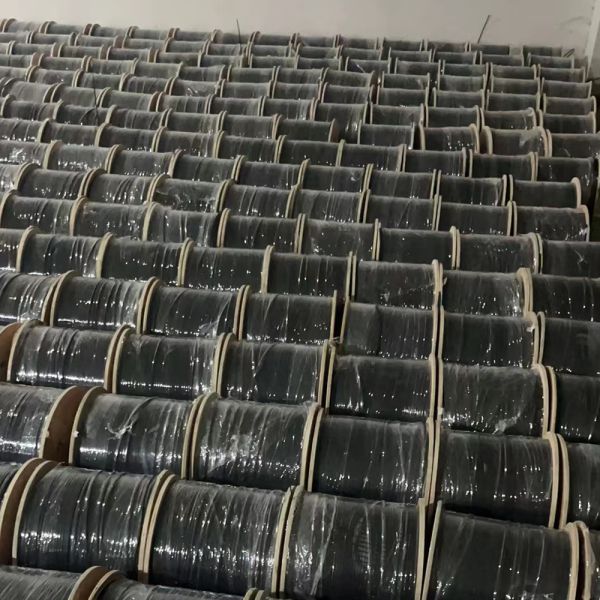

Package :
Wooden Ram
Description
Indoor Outdoor FTTH G657A2 GJYXFCH 1KM Outdoor Fiber Optic Drop Cable

GJYXCH Drop Cable Construction / Cross Sectional Diagram

Single Mode Fiber Drop Cable
Technical Specification

Items

Specification

Fiber count

1/2/4F

Fiber

Out diameter(±5μm)

250

Outer sheath

Self supporting element

1.0mm Steel wire

Tensile element

2*0.4mm Steel wires

Sheath material

LSZH

Color

Black

Out diameter

5.1(±0.2)*2.0(±0.1) mm

Cable weight(kg/km)

22
Single Mode Fiber Drop CableSingle Mode Fiber Drop Cable
Single Mode Fiber Drop CableSingle Mode Fiber Drop Cable
Optical Fiber

Single-mode

Single-mode

Single-mode

Fiber type

G652D

G657A1

G657A2

(1310/1550nm)

(1310/1550nm)

(1310/1550nm)

Attenuation

Typical

0.36/0.22

0.36/0.22

0.36/0.22

Maximum

0.5/0.4

0.5/0.4

0.5/0.4

Zero Dispersion Slope

≤0.091 ps/km·nm2

≤0.092 ps/km·nm2

≤0.092 ps/km·nm2

Dispersion(1285~1340nm)

-3.5 – 3.5ps/(nm·km)

-3.5 – 3.5ps/(nm·km)

-3.5 – 3.5ps/(nm·km)

Mode field Diameter(@1300nm)

9.3±0.4 µm

8.8±0.4 µm

8.8±0.4 µm

Cutoff wavelength cable(nm)

≤1260 nm

≤1260 nm

≤1260 nm

Min bend radius(mm)

16 mm

10 mm

7.5 mm

Cladding diameter(µm)

125±1.0

125±1.0

125±1.0

Mechanical and Environmental Performance of the Cable

Mechanical properties

Installation

Operation

Tensile strength

300N

600N

Min bend radius

15mm

30mm

Crush resistance

2000N/100mm

The mechanical properties of other optical fibers

and cables shall meet international standards of IEC 60794.

Fiber Optical Cable bending radius

Transportation temperature

-20℃~+60℃

Storage temperature

-20℃~+60℃

Installation temperature

-20℃~+60℃

Operation temperature

-20℃~+60℃
