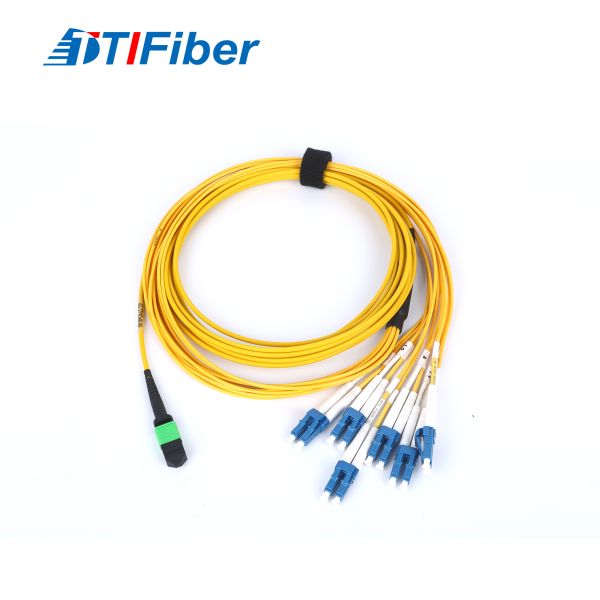

UPC - LC/UPC Polished SM MPO Trunk Cable With Female Connector
UPC - LC/UPC Polished SM MPO Trunk Cable With Female Connector
UPC - LC/UPC Polished SM MPO Trunk Cable With Female Connector
UPC - LC/UPC Polished SM MPO Trunk Cable With Female Connector
Specifications
Brand Name :
OEM
Model Number :
MPO
Certification :
ROHS
Place of Origin :
Guangdong
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
, T/T, D/A, L/C
Supply Ability :
7000pcs / Day
Delivery Time :
in 2-4 days
Packaging Details :
1pcs/PE bag
Model :
SM MPO Fiber Patch Cord
Polished :
UPC
Insertion Loss :
< 0.35dB
Cable Jacket :
LSZH
Cable Type :
Round Cable
Operating Temperature :
40~85°C
Description

SM Fiber Optic Patch Cord MPO Trunk Cable Female Connector UPC To LC/UPC Polished

MPO Trunk Cable Desciption:

The MTP/MPO Trunk Cable is designed for 40G (12 cores) and 100G (24 cores) optics direct connection and high-density data center applications; The original US Conec MTP connectors are fully compliant with the MPO standards.
FIBERCAN Fiber optic cable meets RoHS and UL compliant, and all fiber patch cables connectors are 100% optically tested for insertion loss to ensure nice quality.

MPO Trunk Cable Features:

  1. Single mode and Multimode (Flat/Round) available
  2. High fiber density (maximum 24 fibers)
  3. Fiber in single connector: 4, 8, 12 24
  4. Insert/Pull latching connector
  5. High reflection loss with APC

  6. small Form Factor, 12 Fiber or 24 Fiber push/pull optical connectors.

MPO Trunk Cable Applications:

  1. Telecommunication Networks
  2. Computer networks
  3. CATV networks
  4. FTTx Termination
  5. Gigabit Ethernet

The three polarity methods Type A, Type B and Type C are used to guarantee the right bi-directional allocation

UPC - LC/UPC Polished SM MPO Trunk Cable With Female Connector A Straight-Through MPO Trunk Cable:
Key-Up to Key-Down Adapters, 1 x A to B Duplex Patch Cable and 1 x .A to A Duplex Patch Cable.
B Cross MPO Trunk Cable:
Key-Up to Key-Up Adapters and 2 x .A to A Duplex Patch Cable.
C Cross Pair MPO Trunk Cable:
Key-Up to Key-Down Adapters and 2 x .A to A Duplex Patch Cable.
Notes: Your equipment mode and QSFP type has impact of the polarity of the MPO/MTP Trunk Cable.
The default color of the Single-mode MPO connector is green.

MPO Trunk Cable Specification:

MPO Trunk Cable Fiber Connector

Connector Type Fiber MPO/MTP (non-pinned)
Ferrule of end-face UPC(MM); APC(SM)
Housing Color MM (Beige), MM Elite (Aqua), SM (Yellow/Green)
Insertion Loss, Typical ≤ 0.10 dB
Insertion loss, max. ≤ 0.35 dB
Durability(500 Matings) < 0.2dB


MPO Trunk Cable Fiber Cable

Fiber Type OS2, OM1, OM2, OM3, OM4
Fiber Count 12, 24, 48, 72, 96, 144 cores
Cable Outer diameter 12cores:4.5±0.2mm ; 24cores:5.4±0.2mm
Outer jacket Color OS2(Yellow),OM2(Orange),OM3(Aqua),OM4(Violet)
Outer jacket material LSZH,OFNP,OFNR
Tensile strength 500N
Operating Temperature -20 ~ +60°C
Storage Temperature -40 ~ +70°C


MPO Trunk Cable Packing:

PE bag with stick label (we could add customer's logo in the label.)

UPC - LC/UPC Polished SM MPO Trunk Cable With Female Connector

UPC - LC/UPC Polished SM MPO Trunk Cable With Female Connector

Our service:

  1. All products are 100% fully tested by our technical expertise.
  2. Standard and customized OEM products from small to large quantity are welcome.
  3. Compliance with global environmental industry with RoHS and SGS standards.
