Specifications
Brand Name :
TTI
Model Number :
FOSC
Certification :
ROHS, ISO
Place of Origin :
China
MOQ :
100pcs
Price :
negotiation
Packaging Details :
Carton
Adapter :
SC/APC
Max splice Tray :
4
Max capacity :
96
Cable port :
3in,3 out
Sealing structure :
Mechanical Shrinkable
Description

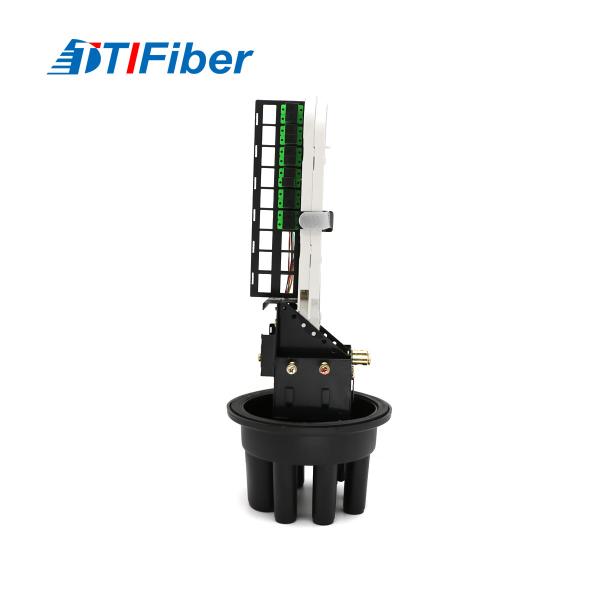

FTTH dome closures optical fiber optic splice closure 3in 3out

Distribution:

Dome Fiber Optic Splice Closure is used in aerial, wall-mounting applications, for the straight-through and branching splice of the fiber cable.

Features:

• Compact size and tight sealing.

• Side-lock splice trays make it easy to manage the fiber.

• reliable grounding device and high durable plastic material.

Installation procedure:

1. Open the closure

2. Fix the cable and check its length in the closure

3. Strip off the cable and cable jacket

4. Seek out the cable cores and get preparation for cable fixation

5. Fix the strengthen cores and reorganize the extra cores

6. Fix the cable an splice the cable

7. Arrange the splice protective tube and fiber

8. Complete inspection

9. Install the dome.

Specification:

Type FOSC-H001 FOSC-H002 FOSC-H003 FOSC-H004 FOSC-H005 FOSC-H006
Size(mm) 435*190*85 435*190*120 435*190*120 435*190*80 435*190*170 420*150*110
Cable diameter(mm) Φ 10 –Φ 17 Φ 10 –Φ 22 Φ 10 –Φ 22 Φ 10 –Φ 17 Φ 10 –Φ 22 Φ 10 –Φ 23
Max capacity(core) 96 168 192 96 288 96
Cable port 2 in, 2 out 4 in, 4 out 3 in, 3 out
Sealing structure Sticky cincture
Weight(kg) 2.6 2.8 2.6 2.3 4.7 2

Uses and properties:

It is belonged to open structure airproof tie-in system of machine pressure.

It is used for the protective connection between two or more optical cables

Suitable for single core fiber optic cable and ribbon fiber optic cable

Shipping:

1. Door to Door: by express (such as DHL, UPS, TNT, FedEx etc.)

2. Airport to Airport: by air

3. Seaport to Seaport: by sea (our location Shenzhen is a seaport.)
