Specifications
Brand Name :
TTI Fiber
Model Number :
QAC-SCU
Certification :
ISO 9001, ISO 14001, REACH， ROHS, CE and CPR certificates
Place of Origin :
China
MOQ :
1000
Price :
Negotiable
Payment Terms :
T/T, L/C, PayPal, Western Union
Supply Ability :
10000pcs/day
Delivery Time :
3-5days
Packaging Details :
1PCS/PE Bag
Product name :
fast connector
Brand :
TTIFiber/OEM/ODM
Mode :
SM MM
Insertion loss :
IL<0.2db, no more than 0.3db, ≤ 0.3dB, >5, ≤0.2 dB
Reusable times :
>10 times
Tensile strength :
>50N
Return loss :
> 55db, ≥50dB, max.50dB (SC/APC), ≤-40dB, more than 55db
Color :
Blue, Green, Other, Customized, OEM
Application :
FTTH FTTB FTTX Network, CATV, to make patch cord, Telecommunication
Connector type :
SC, SC/APC, 12 and 24 fiber connector, LC, MT based Multi-fiber Connector
Connector :
LC, SC Fiber Optic connector, SC/FC, Fast Connector SC APC, FC
Fiber type :
SM, SM or MM, G657A1, G652D, SM/MM
Operating temperature :
-40°C ~ +80°C, -40 to +85 degree, -40~75℃, -45 to +85
Insert loss :
less 0.1DB, <0.2dB, ≤0.3dB
Fiber cable type :
3x2mm Flat cable, 2.0mm 3.0mm cable, 3mm Drop cable, 3.1*2.0mm Butterfly Optical Cable Weight 3.2g, 0.5Kg/pack
Description

FTTH SC/UPC SC/APC Quickly Assembly Connector Optical Fiber Mechanical Fast Connector


Description:

Fast fiber optic connector

Fast fiber optic connector can provide a quick and easy termination of fibers in the field and options are available for 900 micron allowing the installer to terminate and make connection in minutes at equipment and fiber patch panels. This connector system removes any requirement for epoxy, adhesives or costly curing ovens


SC quick assembly connector has easy assembly and excellent stability.

Feature:

  • No special assembling tool
  • Easy for learning technology by a simple assembling method (within 1 and half minutes)
  • Minimize the defect rate by features of removal and reusable.
  • Easy for assembling with mechanical splice and no polishing


Application:

  • Optical network maintaining and repair.
  • Local area network environment of connection.
  • Fiber optic distribution frame.
  • Terminal connection-leg of FTTH optic network.


Specification:

Article value
Insertion loss ≤0.3 (max 0.4)
Return loss ≥60dB
Connector type SC/APC
Cable drop 3.0mm / flat 2x3mm cable
Fiber clamping force ≥3N
Tensile Strength Typical ≥40N (Max 50N)
Online tensile strength 20N IL variation (≤0.2dB) RL variation (≤5dB)
Working Temperature -40℃ ~ +75℃
Can be repeatedly used Possible


Ferrule Hole Sizes:
Singlemode
125.0+1/-0um, concentricity<=1.0um
125.5+1/-0um, concentricity<=1.0um
126.0+1/-0um, concentricity<=1.0um
Multimode
125um concentricity <=3um
127um concentricity <=3um
128um concentricity <=3um

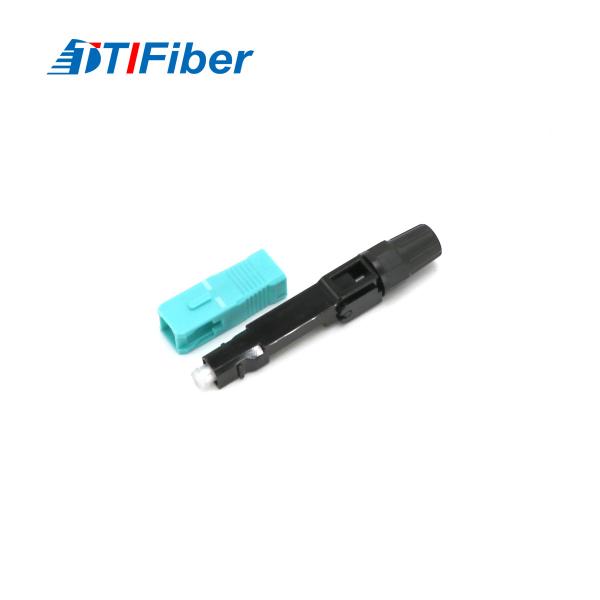

Product Photos:

SC/UPC SC/APC Mechanical FTTH Optical Fiber Fast Connector Quickly AssemblySC/UPC SC/APC Mechanical FTTH Optical Fiber Fast Connector Quickly Assembly
SC/UPC SC/APC Mechanical FTTH Optical Fiber Fast Connector Quickly AssemblySC/UPC SC/APC Mechanical FTTH Optical Fiber Fast Connector Quickly Assembly
SC/UPC SC/APC Mechanical FTTH Optical Fiber Fast Connector Quickly AssemblySC/UPC SC/APC Mechanical FTTH Optical Fiber Fast Connector Quickly Assembly
SC/UPC SC/APC Mechanical FTTH Optical Fiber Fast Connector Quickly AssemblySC/UPC SC/APC Mechanical FTTH Optical Fiber Fast Connector Quickly Assembly
SC/UPC SC/APC Mechanical FTTH Optical Fiber Fast Connector Quickly AssemblySC/UPC SC/APC Mechanical FTTH Optical Fiber Fast Connector Quickly Assembly


Shipping:

  1. Door to Door: by express (such as DHL, UPS, TNT, FedEx etc.)
  2. Airport to Airport: by air
  3. Seaport to Seaport: by sea (our location Shenzhen is a seaport.)

SC/UPC SC/APC Mechanical FTTH Optical Fiber Fast Connector Quickly Assembly

FAQ:

1. Why choose TTI FIBER ?
(1) Professional manufacturer: Low MOQ, free samples are available.
(2) Quality assurance: Stable high quality.
(3) Customers solutions: Quick.
(4) Win-Win Price: Save much costs, bring more benefits for customers.

2. Do you accept OEM,ODM?
Yes, we accept them .

3. Can you print our LOGO?
Sure, Your LOGO can be printed on the boxes, or products.

4. What's the method of shipment?
We accept all shipment, such as Delievery, ocean transport, land transport, airport transport.
