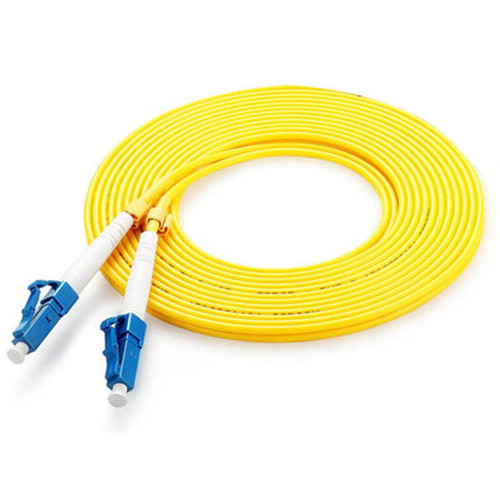

Singlemode Fiber Optic Patch Cord Low Insertion Loss With SC / LC / ST / FC Connector
Singlemode Fiber Optic Patch Cord Low Insertion Loss With SC / LC / ST / FC Connector
Singlemode Fiber Optic Patch Cord Low Insertion Loss With SC / LC / ST / FC Connector
Singlemode Fiber Optic Patch Cord Low Insertion Loss With SC / LC / ST / FC Connector
Singlemode Fiber Optic Patch Cord Low Insertion Loss With SC / LC / ST / FC Connector
Singlemode Fiber Optic Patch Cord Low Insertion Loss With SC / LC / ST / FC Connector
Specifications
Brand Name :
TTI Fiber
Model Number :
fiber jumper
Certification :
ISO 9001, ISO 14001, REACH， ROHS, CE and CPR certificates
Place of Origin :
China
MOQ :
1000
Price :
Negotiable
Payment Terms :
L/C, T/T,
Supply Ability :
200pcs/day
Delivery Time :
3-5 working days
Packaging Details :
PE bag
type :
fiber optic patch cord
connector :
FC/SC/ST/LC /MPO
ferrule :
UPC /APC
Core type :
singlemode
OD :
0.9mm/2.0mm/3.0mm
warranty :
5 years
Description

Singlemode Fiber Optic Patch Cord With SC / LC / ST / FC Connector

Definition

A fiber optic patch cord is a fiber optic cable capped at either end with connectors that allow it to be rapidly and conveniently connected to CATV, an optical switch or other telecommunication equipment. Its thick layer of protection is used to connect the optical transmitter, receiver, and the terminal box. This is known as "interconnect-style cabling"

Feature

1) Low insertion loss high return loss

2)Excellent mechanical endurance

3)High credibility and stability

4)Good in repeatability and exchangeability

Application

1) Fiber optic communication networks

2) Optical access network

3) Data processing networks

4)Premise installations

Specification

Connector Type FC,SC,LC,ST,MU,MTRJ,MPO
Fiber Type SM(G.652D/G.657A) MM(OM1/OM2/OM3/OM4)
Ferrule End-face PC UPC APC PC
Insertion loss ≤0.3db ≤0.3db ≤0.3db ≤0.3db
Return loss ≥45db ≥50db ≥60db ≥35db
Exchangeability ≤0.2db
Repeatability ≤0.1db(1000times)
Durability >1000times
Operating Temperature (℃)

FIber Type Min.Bandwidth Distance Attenuation
62.5/125 850/1300nm
200/500MHz/KM		 @100Mbps 2km @1Gig 220m 850/1300nm
3.0/1.0db/km
50/125 850/1300nm
500/500MHz/KM		 @100Mbps 2km @1Gig 500m 850/1300nm
3.0/1.0db/km
50/125
10Gig Optimized		 850/1300nm
2000/500MHz/KM		 @100Gig Varies by VCSEL
typical 300m2850nm		 850/1300nm
3.0/1.0db/km
9/125 1310/1550nm
Approx100Terahertz		 Up to 100km Varies by transceiver 1310/1550nm
0.4/0.3db/km

Product pictures

Singlemode Fiber Optic Patch Cord Low Insertion Loss With SC / LC / ST / FC ConnectorSinglemode Fiber Optic Patch Cord Low Insertion Loss With SC / LC / ST / FC ConnectorSinglemode Fiber Optic Patch Cord Low Insertion Loss With SC / LC / ST / FC Connector

Company information

Singlemode Fiber Optic Patch Cord Low Insertion Loss With SC / LC / ST / FC ConnectorSinglemode Fiber Optic Patch Cord Low Insertion Loss With SC / LC / ST / FC ConnectorSinglemode Fiber Optic Patch Cord Low Insertion Loss With SC / LC / ST / FC Connector

Product tags

fiber patch cord sc to lc

,

d4 optic fiber patch cord

,

d4 fiber optic patch cords
