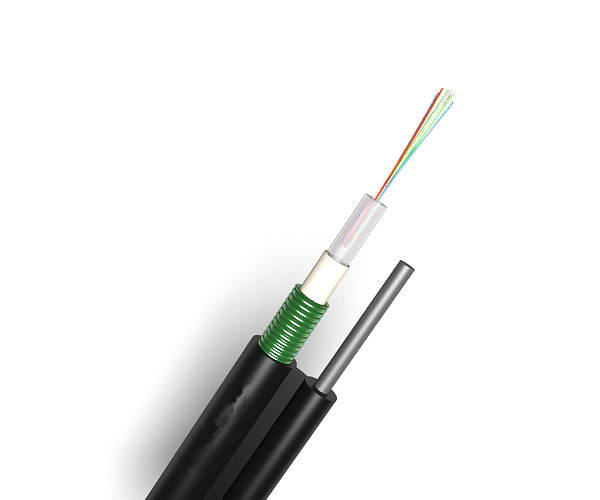

Figure 8 Fiber Optic Cable Steel Wire Stranded Self Supporting Aerial For LAN communication
Figure 8 Fiber Optic Cable Steel Wire Stranded Self Supporting Aerial For LAN communication
Figure 8 Fiber Optic Cable Steel Wire Stranded Self Supporting Aerial For LAN communication
Figure 8 Fiber Optic Cable Steel Wire Stranded Self Supporting Aerial For LAN communication
Specifications
Brand Name :
TTI
Model Number :
GYFTC8S
Certification :
CE/ISO9001
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T,Paypal
Supply Ability :
5000m/day
Delivery Time :
5-8 working days
Packaging Details :
wooden drum
Product name :
GYFTC8S
Laying method :
self-supporting aerial
Fiber count :
2-288 core
Application :
long distance and LAN communication
Standards :
IEC60794
Temperature range :
-40~+70
Color :
black
Outer sheath :
PE
Package :
wooden drum
Warranty :
30 years
Description

Figure 8 Fiber Optic Cable Steel Wire Stranded Self-Supporting Aerial Used For LAN communication

Characteristics

1.Non-metal strength has an excellent anti-electromagnet ability.
2. Loose tube design for good performance.
3. Excellent mechanical and environmental characteristics.
4. Good flexibility and bending performance.
5. Small outer diameter,light weigh easy to installation.
6. 100% cable core filling.
7. Aluminum tape moisture barrier.

Specification

No. of fibers 6 12 24 48 72 96 144
No. of tubes 1 2 4 4 6 8 12
fibers per tube 6 6 6 12 12 12 12
Filler Rod 4 3 1 1 0 0 0
Tube diameter (±0.1mm) 2.0 2.0 2.0 2.0 2.0 2.0 2.0
Thickness of loose tube
(±0.05mm)		 0.3 0.3 0.3 0.3 0.3 0.3 0.3
Outer diameter (±0.5mm) 5.4X8.6
-15.0		 5.4X8.6
-15.0		 5.4X8.6
-15.0		 5.4X9.8
-16.5		 5.4X10.8
-17.5		 5.4X12.2
-19.0		 5.4X14.9
-22.0
Thickness of out diameter
(±0.1mm)		 1.6 1.6 1.6 1.6 1.6 1.7 1.7
Loose tube Material PBT Color standard spectrum
Water blocking
system		 Material Filling gel / Water blocking tape
Central strength
member		 Material FRP Diameter 1.4(6-48)
2.0(72-144)
Mental strength
member		 Material Stranded steel wire Type 1.0mm*7
Armor Material Aluminum tape
Gallus Material PE Size
(h*w)		 2.5*1.5mm
Out sheath Material PE Color Black

Application

• Adopted to outdoor distribution.
• Suitable for aerial, pipeline laying method.
• Long distance and local area network communication.

Product pictures

Figure 8 Fiber Optic Cable Steel Wire Stranded Self Supporting Aerial For LAN communication

Figure 8 Fiber Optic Cable Steel Wire Stranded Self Supporting Aerial For LAN communication

Company information

Figure 8 Fiber Optic Cable Steel Wire Stranded Self Supporting Aerial For LAN communication

Figure 8 Fiber Optic Cable Steel Wire Stranded Self Supporting Aerial For LAN communication

Figure 8 Fiber Optic Cable Steel Wire Stranded Self Supporting Aerial For LAN communication

Figure 8 Fiber Optic Cable Steel Wire Stranded Self Supporting Aerial For LAN communication

Figure 8 Fiber Optic Cable Steel Wire Stranded Self Supporting Aerial For LAN communication
