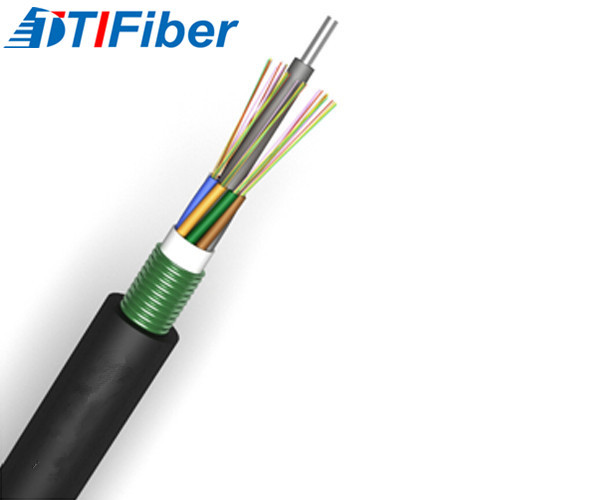

Single Mode Armoured GYTS Fiber Optic Cable For Telecommunication
Single Mode Armoured GYTS Fiber Optic Cable For Telecommunication
Single Mode Armoured GYTS Fiber Optic Cable For Telecommunication
Single Mode Armoured GYTS Fiber Optic Cable For Telecommunication
Single Mode Armoured GYTS Fiber Optic Cable For Telecommunication
Single Mode Armoured GYTS Fiber Optic Cable For Telecommunication
Single Mode Armoured GYTS Fiber Optic Cable For Telecommunication
Single Mode Armoured GYTS Fiber Optic Cable For Telecommunication
Specifications
Brand Name :
TTI Fiber
Model Number :
GYTS
Certification :
ISO 9001, ISO 14001, REACH， ROHS, CE and CPR certificates
Place of Origin :
China
MOQ :
1000
Price :
Negotiable
Payment Terms :
T/T, T/T
Supply Ability :
1000KM/M
Delivery Time :
5-8work days
Packaging Details :
Drum
Model :
Single Mode/Multi Mode
Fiber core :
2-288core
Fiber type :
G.652,G.657 or G.655 A1a or A2
Application :
Telecommunication
Color :
Black
Package :
2KM/wood drum
Single package size :
80X40X80 cm
Single gross weight: :
0.200 kg
Description

Single Mode Outdoor Armoured GYTS 2 / 4 / 6 / 8 / 12 / 16 / 24 Core Fiber Optic Cable Price

Product Description

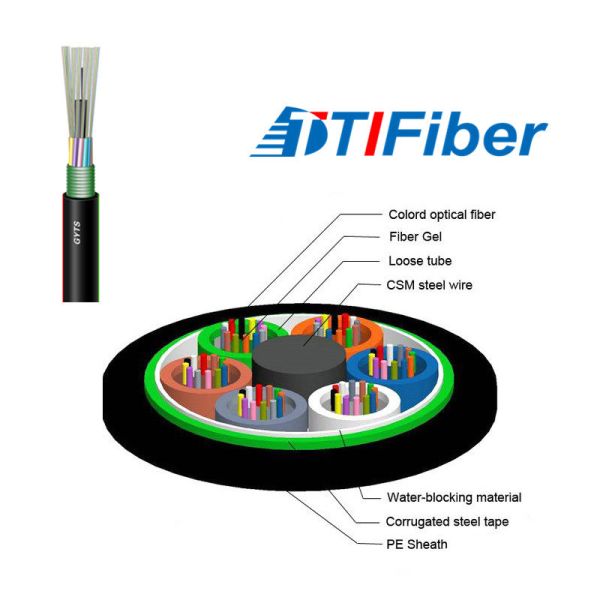

The fibers are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The tube is wrapped with a layer of corrugated steel tape. Between the corrugated steel tape and the loose tube water-blocking material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel tape. The cable is completed with a polyethylene (PE) sheath.

Single Mode Armoured GYTS Fiber Optic Cable For Telecommunication

Techniacal Parameters

· Good mechanical and temperature performance.
· High strength loose tube that is hydrolysis resistant.
· Special tube filling compound ensure a critical protection of fiber.
· Crush resistance and flexibility.
· Two parallel steel wires ensure tensile strength.
· Small diameter, light weight and friendly installation.

G.652D Single Mode Optical Fiber (B1.3)
Item
Standard
Unit
Attenuation
1310nm
≤0.35
dB/km
1383nm
≤0.33
dB/km
1550nm
≤0.21
dB/km
1625nm
≤0.24
dB/km
Dispersion
1288nm～1339nm
|D|≤3.4
ps/(nm·km)
1271nm～1360nm
|D|≤5.3
ps/(nm·km)
1550nm
≤17.8
ps/(nm·km)
Zero-dispersion wavelength
1300～1322
(nm)
Zero-dispersion slope
≤0.091
ps/(nm2•km)
PMD
PMD single fiber
≤0.15
ps/√km
PMD Q links
≤0.08
ps/√km
MDF
1310nm
9.2±0.4
um
Cladding diameter
125±1.0
μm
Cladding non-circularity
≤0.8
%
Core-cladding concentricity error
≤0.6
μm
Coating diameter
245±10
μm
Cladding/coating concentricity error
≤10.0
μm
Cut-off wavelength
1.18～1.33
μm
Macrobend attenuation
(ф 50mm, 100 cycles)
1550nm
≤0.05
dB
1625nm
≤0.05
dB
Bending radius
≥5
m
Dynamic fatigue parameters
≥20
nd
Additional Attenuation
@1310nm &
@1550nm
Temperature cycling test:
(-60℃～85℃, 3 cycles)
≤0.03
dB/km
Water soak test:
(23℃ for 30 days)
≤0.03
dB/km
Damp heat test:
(85℃, 85%RH for 30 days)
≤0.03
dB/km
Thermal aging test
(85℃ for 30 days)
≤0.03
dB/km
Warm water soak test: (60℃ for 15 days)
≤0.03
dB/km
