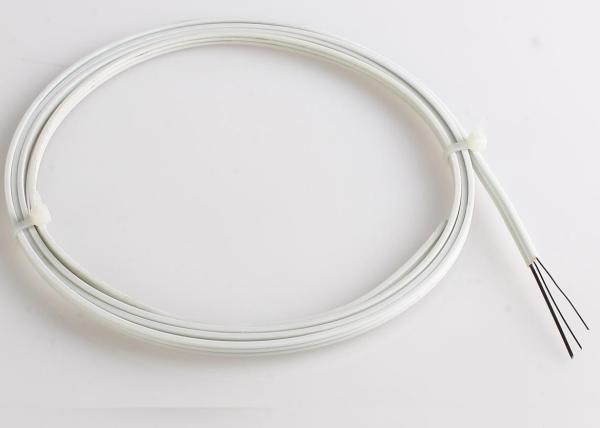

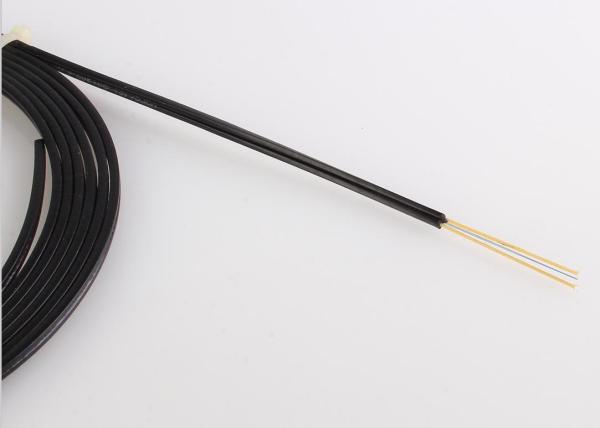

12cores Bow Type FTTH Drop Cable with Steel Wire / Singlemode Fiber
12cores Bow Type FTTH Drop Cable with Steel Wire / Singlemode Fiber
12cores Bow Type FTTH Drop Cable with Steel Wire / Singlemode Fiber
12cores Bow Type FTTH Drop Cable with Steel Wire / Singlemode Fiber
12cores Bow Type FTTH Drop Cable with Steel Wire / Singlemode Fiber
12cores Bow Type FTTH Drop Cable with Steel Wire / Singlemode Fiber
12cores Bow Type FTTH Drop Cable with Steel Wire / Singlemode Fiber
12cores Bow Type FTTH Drop Cable with Steel Wire / Singlemode Fiber
Specifications
Place of Origin :
Guangdong, China
Brand Name :
TTI
Certification :
ROHS, SGS
Model Number :
FOC-FTTH
MOQ :
Negotiable
Price :
Negotiable
Packaging Details :
Wooden drum with test report
Delivery Time :
3-5 days
Payment Terms :
T/T, , PayPal, Monthly settlement
Supply Ability :
100000M/Day
Description

12cores Bow Type FTTH Drop Cable with Steel Wire / Singlemode Fiber

Quick Detail:

  1. Single mode FTTH Drop cable
  2. Fiber core: 2-12cores
  3. indoor and outdoor
  4. with FRP and steel
  5. White color and Black color
  6. LSZH Jacket

Features:

  1. Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property
  2. Two parallel FRP ensure good performance of crush resistance to protect the fiber
  3. Single steel wire as the additional member ensure good performance of tensile strength
  4. Simple structure, light weight and high practicability
  5. Novel flute design, easily strip and splice, simplify the installation and maintenance
  6. Low Smoke, Zero Halogen and flame retardant sheath

Application:

  1. Access network, fiber to the home.
  2. Support the internet, CATV and telephone
  3. High bandwidth, easily reach 100M
  4. Flexible network construction, reduce the cost of installation and maintenance, convenient for network management.
  5. Usable equipment ports, easy to increase the user and expand accommodates gradually.
  6. Support more network increase service in future.

Cable Construction Parameter:

Fiber Core 1 2 1 4
Cable Dimension(mm) 2.0×5.0 2.0×5.0 2.0×5.3 2.0×5.3
Cable Weight(kg/km) 9 10 11 12

Mechanical & Environmental Performance:

Max Load (N) Long Term 60 60 60 60
Short Term 120 120 120 120
Bending Radius(CM) Dynamic 30
Static 15

Shipping:

  1. Door to Door: by express (such as DHL, UPS, TNT, FedEx etc.)
  2. Airport to Airport: by air
  3. Seaport to Seaport: by sea (our location Shenzhen is a seaport.)

12cores Bow Type FTTH Drop Cable with Steel Wire / Singlemode Fiber

12cores Bow Type FTTH Drop Cable with Steel Wire / Singlemode Fiber

12cores Bow Type FTTH Drop Cable with Steel Wire / Singlemode Fiber
