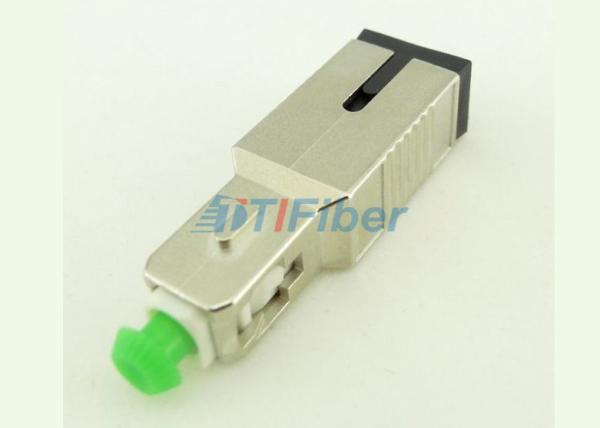

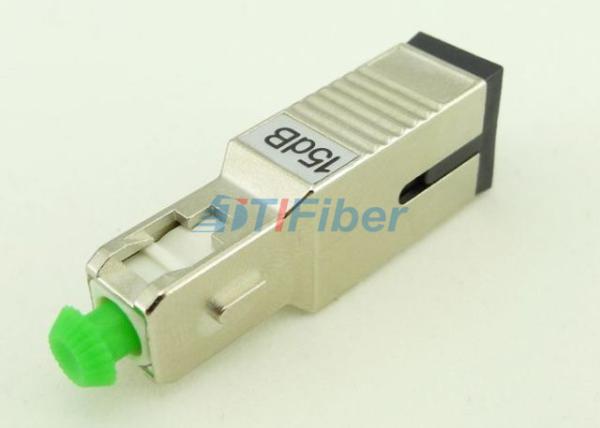

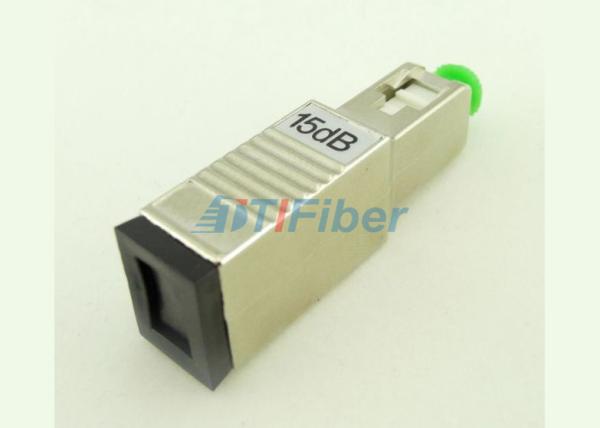

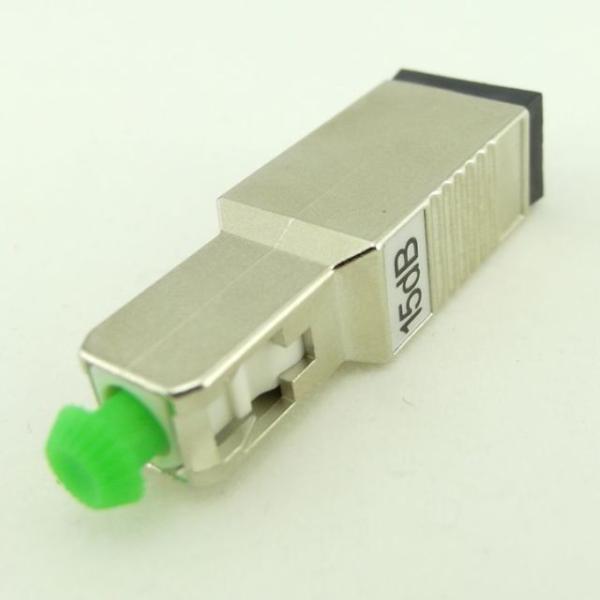

15dB SC UPC APC Fiber Optical Attenuator Female to Male Type Metal Housing

Description::

• Fiber optic attenuators are devices that reduces signal power in fiber optic links by fixed loss.
• Fiber Attenuators are used to control the power level of optical signals at the outputs of light sources and electrical-to-optical (E/O) converters.
• Fiber Attenuators are also used to test the linearity and dynamic range of photo sensors and photo detectors.

Features:

• Attenuation fiber mixed with metal ion to achieve the effect of attenuation
• High precision
• Good for High power source
• Light weight
• Small volume
• Good stability
• A variety of forms, and it is easy to use

Application:

• Optical fiber network system
• Light Fiber distribution frame
• cable television (CATV) system
• High-speed optical fiber transmission system
• Long-distance mains dense wavelength division multiplexing (DWDM) system
• Light points check multiplexer (OADM)

Specification:

• Wave length: 1310/1490/1550/1620

• Return Loss UPC ≥55 dB APC ≥65 dB

• Repeatability 1000 times≤ 0.2dB

• Temperature Range -40 to +85°C

Ordering Information:

SC/UPC-SM-5dB-Fixed

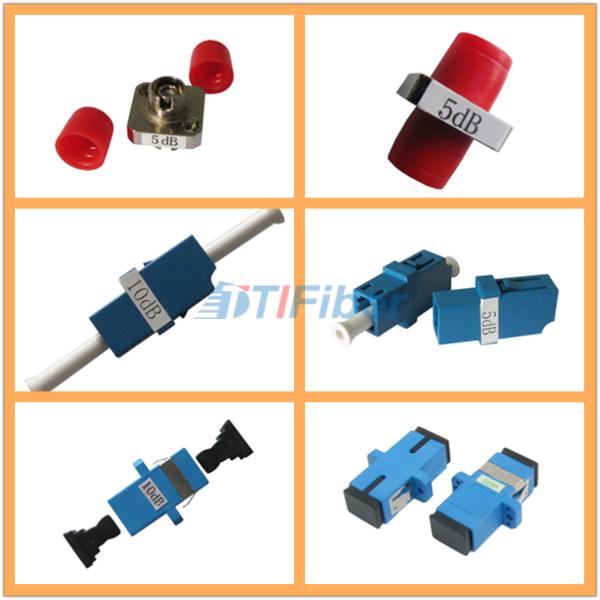

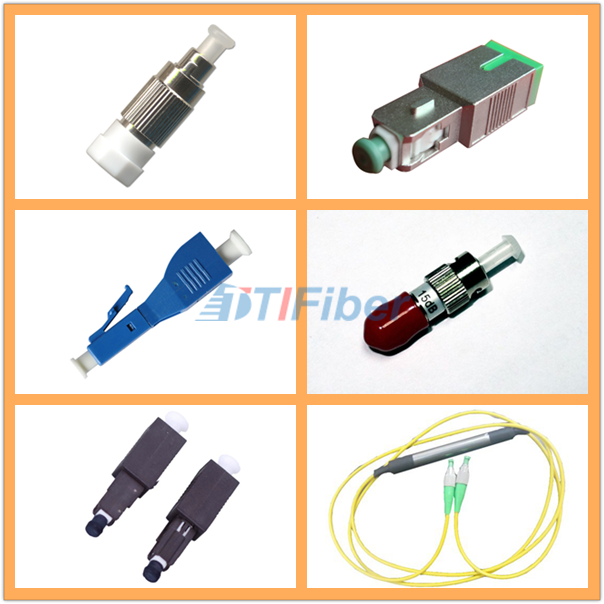

Step 1: Connector type: FC, SC, LC, ST, MU
Step 2: Ferrule End-face: PC, UPC, APC
Step 3: Type: Single-mode, Multimode
Step 4: Attenuation: 1-10dB(1dB step), 15, 20, 25, 30dB
Step 5: Mode: Fixed, Female&Male, In-line, Variable
Step 6: Wavelength: 1310nm, 1550nm, 850nm, 1300nm
