GYFTC8S Fiber Optic Patch Cables , Self Supporting Figure 8 Loose Tube Cable
GYFTC8S Fiber Optic Patch Cables , Self Supporting Figure 8 Loose Tube Cable
GYFTC8S Fiber Optic Patch Cables , Self Supporting Figure 8 Loose Tube Cable
GYFTC8S Fiber Optic Patch Cables , Self Supporting Figure 8 Loose Tube Cable
Specifications
Brand Name :
TTI
Model Number :
GYFTC8S
Certification :
CE/ISO9001
Place of Origin :
Shenzhen, China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T, L/C,Paypal
Supply Ability :
2000m/day
Delivery Time :
3-5 working days
Packaging Details :
package with wooden drum
Product name :
GYFTC8S
Fiber count :
2-288 cores
Instalation :
Self-surpting aerial
Temperature range :
-40~+70
Application :
Long distance
Package :
wooden drum
Outer sheath :
PE or LSZH
Core type :
Singlemode
Strength member :
FRP
Description

Outdoor Fiber Optic Cable GYFTC8S Self-Supporting Figure 8 Loose Tube Cable

Description

The fibers, 250μm, are positioned in a loose tube made of PBT, the tubes are filled with a water-resistant filling compound. Loose tubes filled with water proof compound to ensure compact and longitudinally water blocking ,this part of cable accompanied with the steel wires as the supporting part are completed with a polyethylene(PE) sheath to be figure 8 structure.

Characteristics

· High tensile strength of stranded wires meet the requirement of self-supporting


· Good mechanical and temperature performance


· High strength loose tube that is hydrolysis resistant


· Special tube filling compound ensure a critical protection of fiber


· The following measures are taken to ensure the cable watertight:


· Loose tube filling compound


· 100% cable core filling


· steel tape moisture barrier

Specification

fiber count configuration filler number out diameter mass minimum bend radius tensile strength crush resistance
dynamic static short term long term short term long term
tubesxfibres mm kg/km mm mm N N N/10CM N/10CM
6 1x6 5 10.9*18.8 180 220 110 5000 2500 1000 300
12 2x6 4 10.9*18.8 180 220 110 5000 2500 1000 300
24 4x6 2 10.9*18.8 180 220 110 5000 2500 1000 300
36 6x6 0 10.9*18.8 180 220 110 5000 2500 1000 300
48 4X12 2 11.7*19.6 200 240 120 5000 2500 1000 300
60 5x12 1 11.7*19.6 200 240 120 5000 2500 1000 300
72 6x12 0 11.7*19.6 200 240 120 5000 2500 1000 300
96 8X12 0 13.1*21.0 230 270 135 5000 2500 1000 300
144 12x12 0 15.8*23.7 310 320 160 5000 2500 1000 300
192 8x24 0 14.9*22.8 280 300 150 5000 2500 1000 300
288 12x24 0 18.4*26.3 390 370 185 5000 2500 1000 300

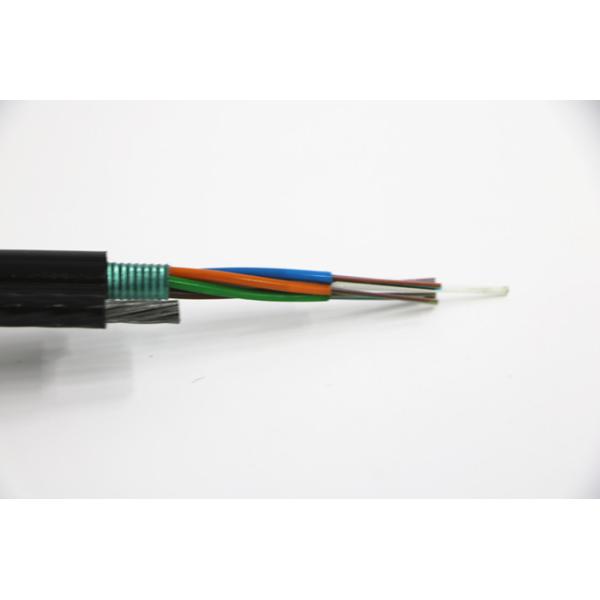

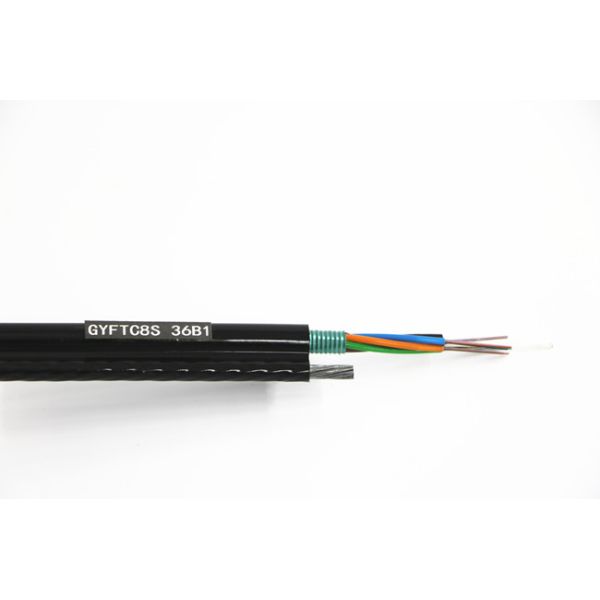

Product pictures

GYFTC8S Fiber Optic Patch Cables , Self Supporting Figure 8 Loose Tube Cable

GYFTC8S Fiber Optic Patch Cables , Self Supporting Figure 8 Loose Tube Cable

GYFTC8S Fiber Optic Patch Cables , Self Supporting Figure 8 Loose Tube Cable
