Fiber Optic Attenuator Singlemode
Fiber Optic Attenuator Singlemode
Fiber Optic Attenuator Singlemode
Fiber Optic Attenuator Singlemode
Fiber Optic Attenuator Singlemode
Fiber Optic Attenuator Singlemode
Fiber Optic Attenuator Singlemode
Fiber Optic Attenuator Singlemode
Specifications
Brand Name :
TTI Fiber
Model Number :
FC Attenuator
Certification :
ISO 9001, ISO 14001, REACH， ROHS, CE and CPR certificates
Place of Origin :
China
MOQ :
1000
Delivery Time :
5-7 work days
Packaging Details :
PE bag and carton
Price :
Negotiable
Application :
Telecommunication
Color :
Customized
Fiber Type: :
SM / MM
Material :
Plastic
Optical Connector :
FC SC LC ST
Fiber mode :
Singlemode or Multimode
Description

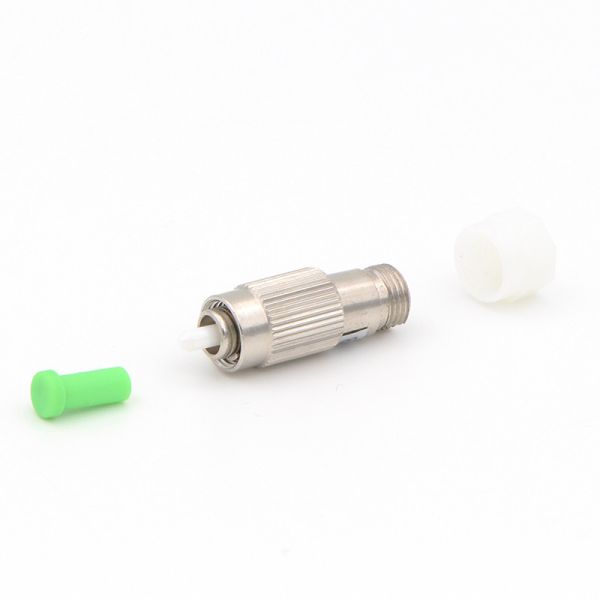

Fiber Optic Attenuator Fixed type Or Plug type FC/APC Male To Female Singlemode

Specification

Operating wavelength: SM:1200-1600nm or 1310nm, 1550nm&MM:850nm,1300nm
Return Loss: Less than 50dB(SPC)
Less than 55dB(UPC)
Less than 65dB(APC)
Attenuation Accuracy: +/-0.5(1-10) or +/- 1.0(11-30)
Polarization Dependent Loss: Less than 0.2dB
Maximum Optical Input Power: 200mW
Operating Temperature: -40 ~ +80 C

Operation wavelength SM: 1200 to 1600nm or 1310/1550nm
MM: 850nm, 1300nm
Return Loss ≥ 50 db (PC)
≥ 55 db (UPC)
≥ 65 db (APC)
Attenuation Accuracy +/-0.5 db for 1 to 5db attenuation
+/-10% for 6 to 30db attenuation
Polarization Dependent loss ≤ 0.2db
Maximum optical Input power 200mW
Operating Temp Range -40 to + 80 degree

Ordering Options

Connector Type Application Wavelength Attenuation
FC

PC

UPC

APC

1310nm

1550nm

1310/1550nm

1, 2, 3, ….., 25db

Application

CATV

Telecommunication networks

Test equipment

Metro

Local Area Networks(LANs)

Data processing networks

Multimedia

Gigabit Ethernet

Active device/Transceiver

Features

Bellcore Compliant

Wavelength Independent (DWDM)

Durability (well over 100mw)

Simple and Reliable structure

Ordering Information:

LC/UPC-SM-5dB-Female&Male

Step 1: Connector type: FC, SC, LC, ST, MU

Step 2: Ferrule End-face: PC, UPC, APC

Step 3: Type: Single-mode, Multimode

Step 4: Attenuation: 1-10dB(1dB step), 15, 20, 25, 30dB

Step 5: Mode: Fixed, Female&Male, In-line, Variable

Step 6: Wavelength: 1310nm, 1550nm, 850nm, 1300n

Fiber Optic Attenuator Singlemode

Fiber Optic Attenuator Singlemode
