Self - Support Stranded Fiber Optic Wire Cable Figure 8 12 Cores GYXTC 8S Aeria Application
Self - Support Stranded Fiber Optic Wire Cable Figure 8 12 Cores GYXTC 8S Aeria Application
Self - Support Stranded Fiber Optic Wire Cable Figure 8 12 Cores GYXTC 8S Aeria Application
Self - Support Stranded Fiber Optic Wire Cable Figure 8 12 Cores GYXTC 8S Aeria Application
Self - Support Stranded Fiber Optic Wire Cable Figure 8 12 Cores GYXTC 8S Aeria Application
Self - Support Stranded Fiber Optic Wire Cable Figure 8 12 Cores GYXTC 8S Aeria Application
Specifications
Brand Name :
TTI
Model Number :
GYXTC
Certification :
ROHS, SGS, ISO9001
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T,
Supply Ability :
10000 pieces per day
Delivery Time :
3-5 days
Packaging Details :
Wooden Drum or as Client's Request
Name :
GYXTC 8S
Application :
Aeria
Mode :
Single mode or multimode
Core :
12,24
OEM :
Support
Jacket :
HDPE
Description

Self - Support Stranded Figure 8 Fiber Optical Cable 12 Cores GYXTC 8S

Product Description:
China manufacturer supplier Loose tube stranding Figure 8 Self-support Cable

Recommended laying methods:

1. Self-support aerial

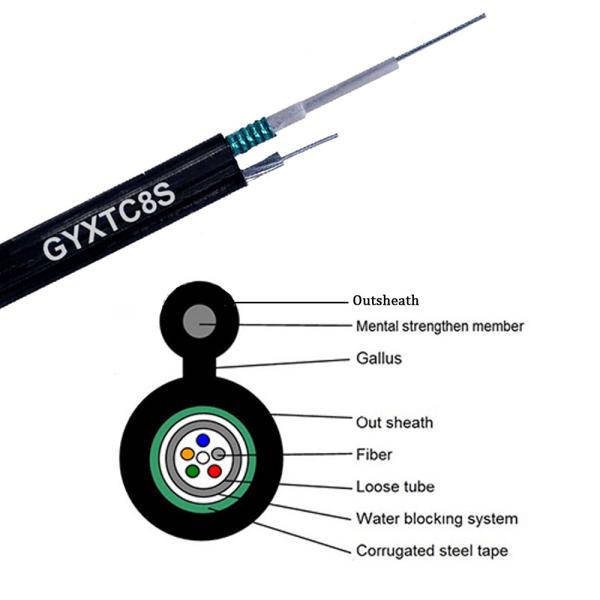

Structure characters:

1. Water proof layer between steel tape and cable core

2. “8” Figure cross section

3. Double coated PE corrugated steel tape under PE sheath

4. Steel messenger wire

Feature:

1. Excellent water proof layer

2. Steel tape armored, excellent anti-crush properties

3. Good anti-bullet properties

4. Messenger wire as the support member made excellent

5. Anti-pull performance and easy installation

Applicable fields:

Long-distance communication, LAN

Technical data:

Fiber range Steel messenger specs Cable outer diameter Messenger wire outer diameter Cable weight Cable height Min bending radius Safe tension Min broken tension Max crush loading force Allowable tension
Static Dynamic Short term Long term
2-12 1*7-3.0 8.3 5.0 135 15.8 10D 20D 1000 7990 2000 1000 3000

Self - Support Stranded Fiber Optic Wire Cable Figure 8 12 Cores GYXTC 8S Aeria Application
