Outdoor GYTA Fiber Optic Cable Loose Tube Aluminum Tape Flame Retardant Duct Installation
Outdoor GYTA Fiber Optic Cable Loose Tube Aluminum Tape Flame Retardant Duct Installation
Outdoor GYTA Fiber Optic Cable Loose Tube Aluminum Tape Flame Retardant Duct Installation
Outdoor GYTA Fiber Optic Cable Loose Tube Aluminum Tape Flame Retardant Duct Installation
Specifications
Brand Name :
TTI
Model Number :
GYTA
Certification :
IEC60794-3-10
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T,Paypal
Supply Ability :
2000km/day
Delivery Time :
5-7 working day
Packaging Details :
wooden drum
Product Name :
GYTA fiber cable
Core Type :
Singlemode
Installation :
Duct
Application :
Long distance
Fiber count :
6-288
Temperature range :
-40℃ ~ +70℃
Out sheath :
PVC
Strength member :
steel wire
Description

GYTA Outdoor Fiber Optic Cable Loose Tube Aluminum Tape (Flame-Retardant) Cable ​

1) Features

a: excellent mechanical and temperature performance

b:special tube filling compound ensure a critical protection of fiber and resist the water

c: single steel wire as the central strength member to withstand axial loads

d: aluminum tape longitudinal cover cable core as moisture barrier

2) Application

Long distance , LAN communication

3)Specification

fiber count configuration filler number out diameter mass minimum bend radius tensile strength crush resistance
dynamic static short term long term short term long term
tubesxfibres mm kg/km mm mm N N N/10CM N/10CM
6 1X6 4 8.9 70 20D 10D 1500 600 1000 300
12 2X6 3 8.9 70 20D 10D 1500 600 1000 300
24 4X6 1 8.9 70 20D 10D 1500 600 1000 300
36 3X12 3 9.7 80 20D 10D 1500 600 1000 300
48 4X12 1 9.7 80 20D 10D 1500 600 1000 300
60 5X12 0 9.7 80 20D 10D 1500 600 1000 300
72 6X12 0 10.2 100 20D 10D 1500 600 1000 300
96 8X12 0 11.4 120 20D 10D 1500 600 1000 300
144 12X12 0 14 170 20D 10D 1700 600 1000 300
192 8X24 0 13.3 160 20D 10D 1600 600 1000 300
288 12X24 0 16.5 240 20D 10D 2400 600 1000 300

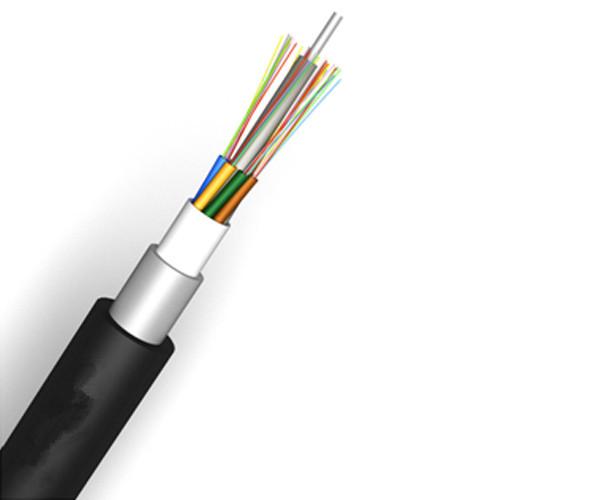

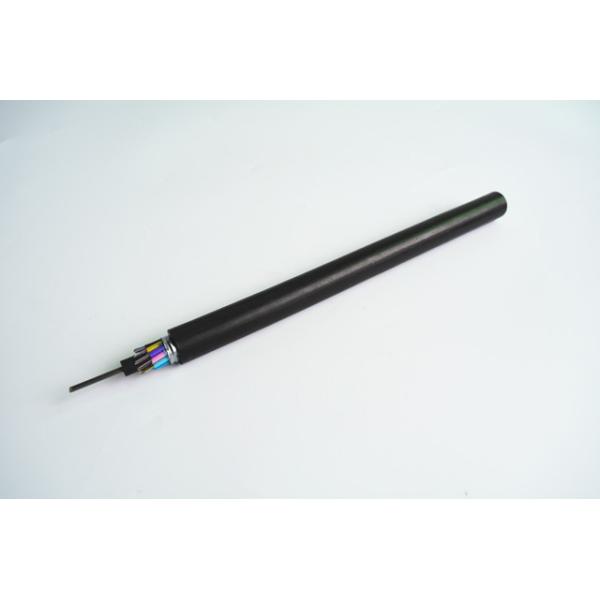

d: Product pictures

Outdoor GYTA Fiber Optic Cable Loose Tube Aluminum Tape Flame Retardant Duct Installation
