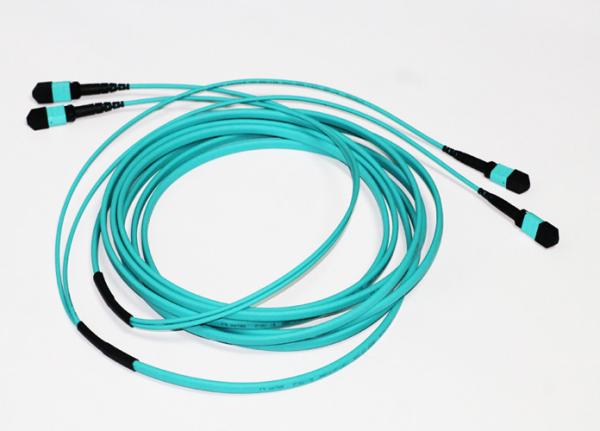

OM3 Multimode Fiber Optic MPO MTP Cable LSZH Low Insertion Loss
OM3 Multimode Fiber Optic MPO MTP Cable LSZH Low Insertion Loss
Specifications
Brand Name :
Hangalaxy
Model Number :
HGYN-01445
Certification :
CE, UL, ROHS, SGS
Place of Origin :
China
MOQ :
MOQ Saying is 10pcs
Price :
Negotiation By email or Phone Call
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
25000PCS Monthly
Delivery Time :
7-10 Business Days
Packaging Details :
1PCS Each Individual Quality PE Bag
Name :
Fiber Optic MPO MTP Cable
Cable OD :
3.0mm
Fiber Mode :
OM3 Multimode
Material :
LSZH
Connector :
MTP
Operating Wavelength :
1310/1550
Description

OM3 Multimode Fiber Optic MPO MTP Cable LSZH Low Insertion Loss

Benefits & Features

* Simplex & Duples

* Singlemode & Multimode

* PC, UPC & APC polishing

* Various boot (cable) sizes available

* FC/ LC/ SC/ ST/ MTR/ MPO connectors available

* Interferential parameters

* Hybrid patch-cords are available upon request

* Low Insertion loss

* Low PDL

* Excellent channel-to-channel uniformity

* High return loss and Good repeatability

* Wide wavelength range

* Supports 40G and 100G network applications

Applications

1. LAN, WAN and Metro Networks

2. FTTH project & FTTX Deployments

3. CATV System

4. GPON, EPON

5. Fiber Optic Test Equipment

6. Data-base Transmit Broadband Net

Technical Information

Parameters Min Typical Max Unit
Operating Wavelength Single Mode OS1/OS2 1310/1550 nm
Insertion Loss Single Mode Low Loss Min 0.3 & max 0.5 dB
Return Loss Single Mode 60
Fiber Type SMF-28e G652 and G657 Fiber
Connector Type MPO/MTP®, meet standard customized
Length 1 meter or meet customized length Meters

Length Tolerance

 L < 1m ±50 mm
1m < L < 3m ±100
3m < L < 10m ±200
L > 10m ±3
Jacket Type Flat Cable / Round Cable OFNP / OFNR
Jacket Diameter 3.0mm, 4.5mm, 5.0mm or meet customized mm
Jacket Color Yellow SMF-28e G652 and G657 Fiber

Environmental Condition

Parameters Unit Specification
Min Max
Uncontrolled Environment ℃ -40 +75
Controlled Environment ℃ -10 +60

Packing Information

1PCS Each Individual Quality PE Bag

Ordering Information

Lower Insertion Loss & Higher Performance
8 fibers used when mated with 40G QSFP+ transceivers. 0.35dB Low IL and stable signal transmission ensuring your network safety. High-quality MTP connectors tested and guaranteed by 3D interferomete.

The reason why Choose us:

1. On time delivery

2. Customization

3. Factory outlet

4. Large product inventory with massive production line

5. China's professional gas detection leader

6. Quality guarantee

7. Product distribution involves multi-fields, dozens of countries including some developed countries.
