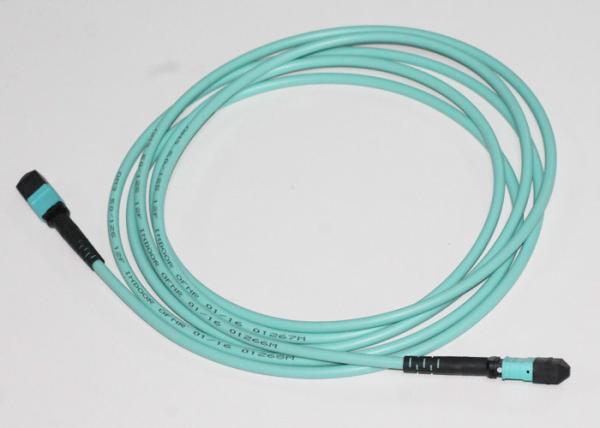

24 Cores MTP MPO Optical Cable Fiber Trunk Cable Multimode OM3

The MTP is a mullti-fibre connector with the most popular accepting 12 cores. The connector was developed many years ago, primarily for use in pre-terminated systems. The pre-terminated systems allow fibre to be deployed and connected without the need for onsite termination. More recently the MTP (and the generic MPO connector) has been identified as the method of delivering parallel optic systems.

Over multimode fibre, up to and including 10 Gigabit Ethernet, duplex configuration has been used (2 fibre). One fibre for Transmit (Tx) and one fibre for Receive (Rx). New Ethernet applications over multimode fibre will use parallel optics. This is to say, multiple fibres for transmit and receive. The MTP, having 12 cores, will satisfy this requirement and support the following emerging Ethernet applications.

Key Characteristic

1. Insertion loss type available in Standard, Elite / Low Loss

2. Fiber count available in 6, 8, 12, and 24

3. MTP/MPO connector type available in Male and Female

4. Fiber type available in SM (G652D, G657A1, G657A2), MM (OM3, OM4)

5. Fanout length available in 0.5m, 1m, etc.

6. Multi-fiber connector type available in MTP, MPO with APC or PC polishing type

7. Single-fiber connector type available in LC, SC with APC or UPC polishing type

8. Factory terminated & tested with guaranteed quality

9. High density to dramatically save space

Application

(1) Local Area Network (LAN);
(2) Data communication network;
(3) Telecommunication optical transmission network;
(4) Optical access network(OAN);
(5) Active device termination;
(6) Fiber optics data transmission(FODT);

Visual Specification

Performance

Environmental

Part Numbers

Quality Assurance

The customer shall be notified in writing at least 30 days in advance of any significant modifications that would alter the properties of the final product. The customer reserves the right to reject any or all portions of a lot of material that does not conform to the requirements of this specification based upon internal inspection or analysis.

Hangalaxy Factory

Packing

(1) According to Stardard Export Packing.
(2) Carton box, wooden box, wooden pallet.

Shipping

(1) International express such as UPS, TNT, DHL, etc.
(2) Internatioal air: CA, AA, EA, etc.
(3) By sea.

Hangalaxy Exhibition

If you feel any more request about the fiber optic connectivity, please give us a email and a call for asking and we will try our best service for you.

FAQ

1. Are you factory direct?

as a professional Cable manufacturer, specialized in MPO Patch Cable, MPO Breakout Cable, Fiber Optic Patch Cord, Our products are mainly exported to Europe, South America, and some other countries and areas.

2. What is your main products?

Outdoor fiber optic cables indoor fiber optic cables FTTH Drop cables ADSS

Indoor armored patch cords fiber cable Optical patch cords Sc LC FC ST MTP MPO optical patch cord

3. Product quality guarantee period?

20 years Guarantee for fiber optic cable

4. Do you have certificate for raw material?

We build long-term relationship cooperation with qualified ISO9001 ROHS raw material suppliers
