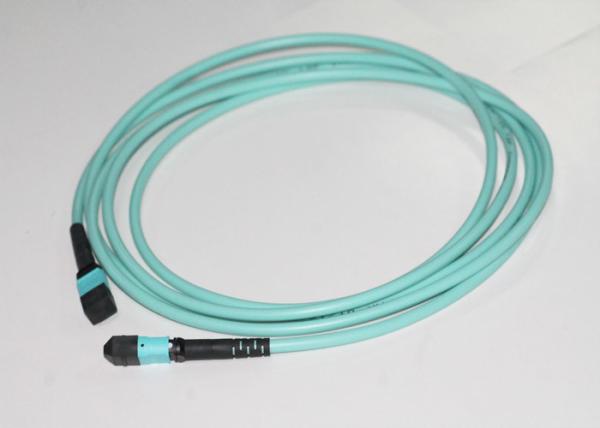

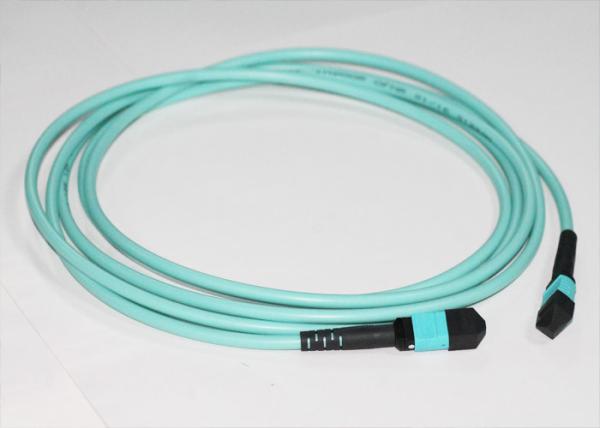

5.0mm MTP-MTP Female Fiber Optic Multimode ClearCurve OM3 Patch Cable Aqua LSZH Jacket

The MTP is a mullti-fibre connector with the most popular accepting 12 cores. The connector was developed many years ago, primarily for use in pre-terminated systems. The pre-terminated systems allow fibre to be deployed and connected without the need for onsite termination. More recently the MTP (and the generic MPO connector) has been identified as the method of delivering parallel optic systems. Over multimode fibre, up to and including 10 Gigabit Ethernet, duplex configuration has been used (2 fibre). One fibre for Transmit (Tx) and one fibre for Receive (Rx). New Ethernet applications over multimode fibre will use parallel optics. This is to say, multiple fibres for transmit and receive. The MTP, having 12 cores, will satisfy this requirement and support the following emerging Ethernet applications.

Key Characteristic

(1) 40GBASE-SR4 40 Gigabit Ethernet 4 fibres transmit & 4 fibres receive;
(2) 1 qty 12 Core MTP Connector;
(3) Mates to all MTP or MPO connectors;
(4) Precision polished for minimum insertion loss and back reflection;
(5) Push/Pull Connector Mating;
(6) Plenum Rated Cable;
(7) Meets EIA/TIA 568-B.3;
(8) Fanouts to discrete simplex connecters available;
(9) 50 and 62.5 micron core fiber available.

Application

(1) Local Area Network (LAN);
(2) Data communication network;
(3) Telecommunication optical transmission network;
(4) Optical access network(OAN);
(5) Active device termination;
(6) Fiber optics data transmission(FODT);
(7) Test Equipment;
(8) CATV.

Physical

Performance

Environmental

Part Numbers

Standard

♦ Using a standard cassette at each end of the trunk cable will achieve the following configurations;
♦ EN 50174-1;
♦ ISO/IEC 14763-2;
♦ ANSI/TIA-568-C Method B (modified).

Hangalaxy Factory

Packing

(1) According to Stardard Export Packing.
(2) Carton box, wooden box, wooden pallet.

Shipping

(1) International express such as UPS, TNT, DHL, etc.
(2) Internatioal air: CA, AA, EA, etc.
(3) By sea.

Hangalaxy Exhibition

If you feel any more request about the fiber optic connectivity, please give us a email and a call for asking and we will try our best service for you.
