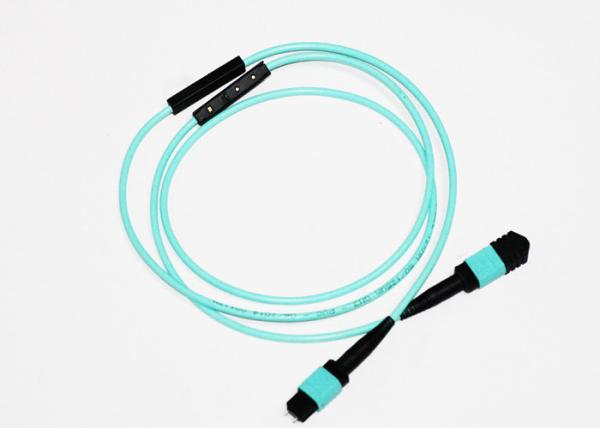

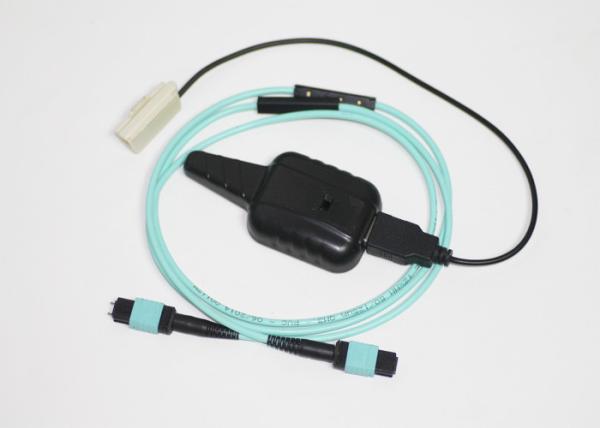

High Density Fiber Optic MPO MTP Cable OM3 Optical Tracing 3.0mm 12 Cores
High Density Fiber Optic MPO MTP Cable OM3 Optical Tracing 3.0mm 12 Cores
High Density Fiber Optic MPO MTP Cable OM3 Optical Tracing 3.0mm 12 Cores
High Density Fiber Optic MPO MTP Cable OM3 Optical Tracing 3.0mm 12 Cores
High Density Fiber Optic MPO MTP Cable OM3 Optical Tracing 3.0mm 12 Cores
High Density Fiber Optic MPO MTP Cable OM3 Optical Tracing 3.0mm 12 Cores
High Density Fiber Optic MPO MTP Cable OM3 Optical Tracing 3.0mm 12 Cores
High Density Fiber Optic MPO MTP Cable OM3 Optical Tracing 3.0mm 12 Cores
Specifications
Brand Name :
Hangalaxy
Model Number :
HGYN-017
Certification :
CE, SGS, ROHS, UL
Place of Origin :
China
MOQ :
MOQ Saying is 10pcs
Price :
Negotiation By email or Phone Call
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
25000PCS Monthly
Delivery Time :
7-10 Business Days
Packaging Details :
1PCS Each Individual Quality PE Bag
Fiber Mode :
ClearCurve OM3
Fiber Count :
12
Cable Color :
Aqua
Connector Type :
MPO
Cable OD :
3.0mm
Insertion Loss :
0.5dB
Description

3.0mm 12 Cores MPO Fiber Multimode ClearCurve OM3 Optic Tracing Cable Aqua LSZH Jacket

Key Characteristic

(1) High Density Fiber Management Solution;
(2) 8 or 12 Fibers per connecter;
(3) Mates to all MTP or MPO connectors;
(4) Precision polished for minimum insertion loss and back reflection;
(5) Push/Pull Connector Mating;
(6) Plenum Rated Cable;
(7) Meets EIA/TIA 568-B.3;
(8) Fanouts to discrete simplex connecters available;
(9) 50 and 62.5 micron core fiber available.

Physical

Cable 50 micron 62.5 micron
Minimum Bend Radius 30mm 30mm
Core/Cladding Diameters 50/125um 62.5/125um
Certification/Flame Rating USA (UL)=OFNP, Canada (CSA)=OFN/FT6
Ferrule Material Glass Filled Resin
Guide Pins Surgical Grade Stainless Steel
Polish PC, 1 micron (typical) protrusion
Rematability (per EIA-455-21A) 200 200

Performance

Connectors (per termination) 50 micron 62.5 micron
Typical Insertion Loss 0.13-0.31 dB 0.10-0.24 dB
Maximum Insertion Loss 0.5dB 0.5dB
Maximum Return Loss 20.0dB 20.0dB
Standard Cable 850nm 1300nm
Cable Attenuation <5.0dB/km <3.0dB/km
Cable Attenuation @23º, Typ 3.5dB/km 0.75dB/km
LED Bandwidth-62.5u core >160MHz-km >500MHz-km
LED Bandwidth-50u core >500 MHz-km >500 MHz-km
Skew <45ps/m <45ps/m

Environmental

Operating Temperature Rating -5°C to +70°C (exceeds EIA/TIA 568-B.3)
Storage Temperature Rating -40°C to +70°C (exceeds EIA/TIA 568-B.3)

High Density Fiber Optic MPO MTP Cable OM3 Optical Tracing 3.0mm 12 Cores


Application


(1) Local Area Network (LAN);
(2) Data communication network;
(3) Telecommunication optical transmission network;
(4) Optical access network(OAN);
(5) Active device termination;
(6) Fiber optics data transmission(FODT);
(7) Test Equipment;
(8) CATV.

Hangalaxy Factory

High Density Fiber Optic MPO MTP Cable OM3 Optical Tracing 3.0mm 12 Cores

Packing


(1) According to Stardard Export Packing.
(2) Carton box, wooden box, wooden pallet.

High Density Fiber Optic MPO MTP Cable OM3 Optical Tracing 3.0mm 12 Cores

Shipping


(1) International express such as UPS, TNT, DHL, etc.
(2) Internatioal air: CA, AA, EA, etc.
(3) By sea.
