Specifications
Brand Name :
Hangalaxy
Model Number :
HGYN-018
Certification :
CE, SGS, ROHS, UL
Place of Origin :
China
MOQ :
MOQ Saying is 10pcs
Price :
Negotiation By email or Phone Call
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
25000PCS Monthly
Delivery Time :
7-10 Business Days
Packaging Details :
1PCS Each Individual Quality PE Bag
Fiber Mode :
ClearCurve OM3
Fiber Count :
12
Cable Color :
Aqua
Connector Type :
MTP
Cable OD :
3.0mm
Insertion Loss :
0.5dB
Pin :
No
Length :
10ft
Description

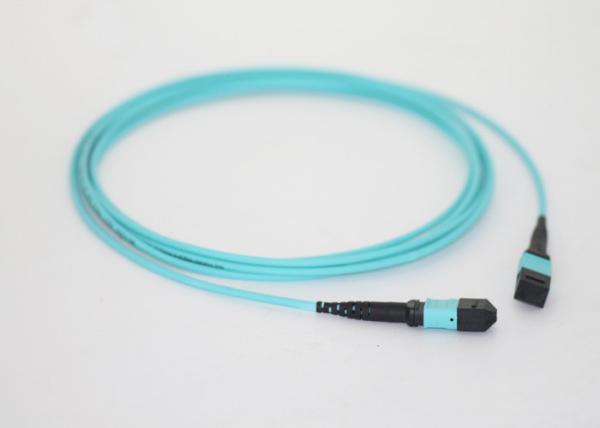

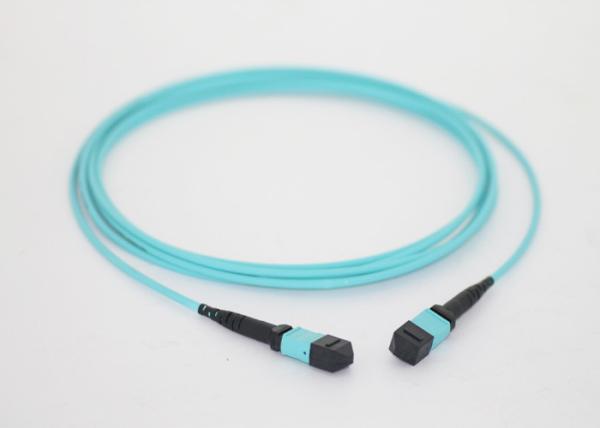

12 Cores MTP-MTP Female Fiber Multimode ClearCurve OM3 Optic Cable Aqua LSZH Jacket

The MTP is a mullti-fibre connector with the most popular accepting 12 cores. The connector was developed many years ago, primarily for use in pre-terminated systems. The pre-terminated systems allow fibre to be deployed and connected without the need for onsite termination. More recently the MTP (and the generic MPO connector) has been identified as the method of delivering parallel optic systems.

Key Characteristic

(1) High Density Fiber Management Solution;
(2) 8 or 12 Fibers per connecter;
(3) Mates to all MTP or MPO connectors;
(4) Precision polished for minimum insertion loss and back reflection;
(5) Push/Pull Connector Mating;
(6) Plenum Rated Cable;
(7) Meets EIA/TIA 568-B.3;
(8) Fanouts to discrete simplex connecters available;
(9) 50 and 62.5 micron core fiber available.

Application


(1) Local Area Network (LAN);
(2) Data communication network;
(3) Telecommunication optical transmission network;
(4) Optical access network(OAN);
(5) Active device termination;
(6) Fiber optics data transmission(FODT);
(7) Test Equipment;
(8) CATV.

Physical

Cable 50 micron 62.5 micron
Minimum Bend Radius 30mm 30mm
Core/Cladding Diameters 50/125um 62.5/125um
Certification/Flame Rating USA (UL)=OFNP, Canada (CSA)=OFN/FT6
Ferrule Material Glass Filled Resin
Guide Pins Surgical Grade Stainless Steel
Polish PC, 1 micron (typical) protrusion
Rematability (per EIA-455-21A) 200 200

Performance

Connectors (per termination) 50 micron 62.5 micron
Typical Insertion Loss 0.13-0.31 dB 0.10-0.24 dB
Maximum Insertion Loss 0.5dB 0.5dB
Maximum Return Loss 20.0dB 20.0dB
Standard Cable 850nm 1300nm
Cable Attenuation <5.0dB/km <3.0dB/km
Cable Attenuation @23º, Typ 3.5dB/km 0.75dB/km
LED Bandwidth-62.5u core >160MHz-km >500MHz-km
LED Bandwidth-50u core >500 MHz-km >500 MHz-km
Skew <45ps/m <45ps/m

Environmental

Operating Temperature Rating -5°C to +70°C (exceeds EIA/TIA 568-B.3)
Storage Temperature Rating -40°C to +70°C (exceeds EIA/TIA 568-B.3)

12 Cores Multimode Fiber Optic MPO MTP Cable / Multimode Fiber Optic Cable

Hangalaxy Factory

12 Cores Multimode Fiber Optic MPO MTP Cable / Multimode Fiber Optic Cable

Packing


(1) According to Stardard Export Packing.
(2) Carton box, wooden box, wooden pallet.

12 Cores Multimode Fiber Optic MPO MTP Cable / Multimode Fiber Optic Cable

Shipping


(1) International express such as UPS, TNT, DHL, etc.
(2) Internatioal air: CA, AA, EA, etc.
(3) By sea.
