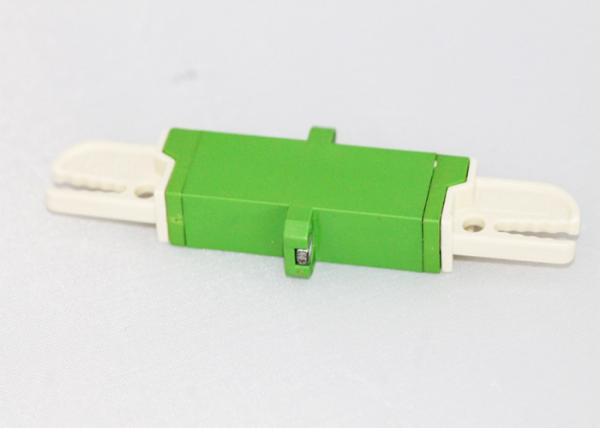

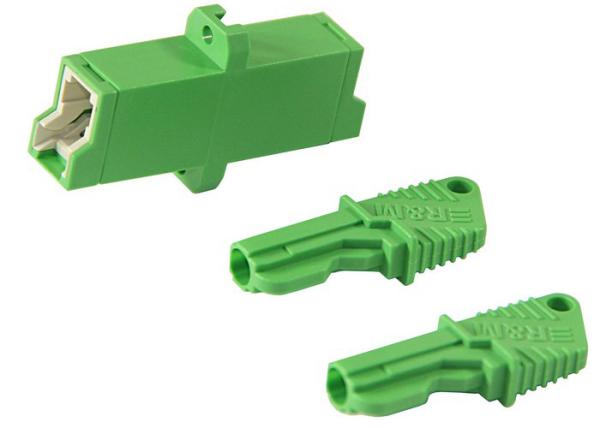

E2000 APC Simplex Fiber Optic Adapters Ceramic Sleeve Telecommunication
E2000 APC Simplex Fiber Optic Adapters Ceramic Sleeve Telecommunication
E2000 APC Simplex Fiber Optic Adapters Ceramic Sleeve Telecommunication
E2000 APC Simplex Fiber Optic Adapters Ceramic Sleeve Telecommunication
Specifications
Brand Name :
Hangalaxy
Model Number :
HGYN-013
Certification :
ISO9001, CE, RohS, SGS, UL
Place of Origin :
China
MOQ :
MOQ Saying is 10pcs
Price :
Negotiation By email or Phone Call
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
25000PCS Monthly
Delivery Time :
7-10 Business Days
Packaging Details :
1PCS Each Individual Quality PE Bag
Fiber Type :
Singlemode
Adapter Type :
E2000
Polish Type :
APC
Color :
Green
Material :
Ceramic Sleeve
Application :
FTTx,LAN,CATV,Telecom
Flange :
With Flange/with Ear
HS Code :
8517709000
Description

E2000 APC Singlemode Simplex Fiber Optic Adapters Ceramic Sleeve

Products Description


Hangalaxy offers a range of high quality E2000 adaptors which have high precision alignment sleeves for reliability and better reconnectability. Each E2000 connector has an inbuilt mechanism to open the shutter and guide the ferrule in the alignment sleeve. E2000 adaptors come with a ceramic sleeves for the singlemode and phosphor bronze sleeves for the multimode. The housing is available in different colours and a flangeless body option.

Keyed Characteristics


(1) Complies with IEC 61754-15
(2) High precision alignment sleeve
(3) Low insertion loss and high reconnectability
(4) RoHS, REACH SvHC compliant
(5) Available in simplex only

Application


(1) Suitable for high power laser applications
(2) Telecommunications networks
(3) WDM, DWDM applications
(4) Testing and measuremebt equipm

Technical Specification

Ceramic Phosphor Bronze Conformance
Insertion Loss (Typ) 0.1 dB 0.15 dB IEC 61300-3-4
Mating Durability 500 IEC 61300-2-2
Receptacle Retention force 2N – 5.9N IEC 61754-20
Operating temperature -25 to +70, 12 cycles IEC 61300-2-22

Ordering Information

Mode Type Colour Simplex Configuration
SM APC Green E2APCUGREEN

Flange with two holes and

SC footprint
SM PC Blue E2UBLUE
MM PC Beige E2UBEIGE
SM APC Green E2APCUGREEN/FL

Flangeless with SC footprint
SM PC Blue E2UBLUE/FL
MM PC Beige E2UBEIGE/FL

E2000 APC Simplex Fiber Optic Adapters Ceramic Sleeve Telecommunication

Ordering Information

Mode Type Colour Simplex Configuration
SM APC Green E2APCUGREEN

Flange with two holes and

SC footprint
SM PC Blue E2UBLUE
MM PC Beige E2UBEIGE
SM APC Green E2APCUGREEN/FL

Flangeless with SC footprint
SM PC Blue E2UBLUE/FL
MM PC Beige E2UBEIGE/FL

OEM/ODM Service


If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

Packing


(1) According to Stardard Export Packing.
(2) Carton box, wooden box, wooden pallet.

Shipping


(1) International express such as UPS, TNT, DHL, etc.
(2) Internatioal air: CA, AA, EA, etc.
(3) By sea.
