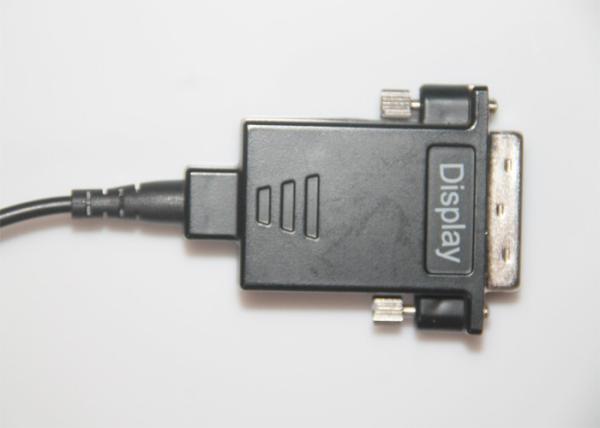

10.2Gbps 3.0mm Hangalaxy DVI Active Optical Cable, LSZH Black Jacket

Item Description

our Hangalaxy Series of DVI AOC is a new generation of advanced Active Optical Cables (AOC) that employs cutting edge technology to deliver unprecedented resolution, performance and value. Hangalaxy DVI cables provide robust features in a rugged yet compact and lightweight form factor. They are fully HDCP 1.4 compliant and support signals with data rates up to 10 Gbps. These features enable cables to support any Single-Link DVI resolution with cable lengths up to 300 meters.

Feature

(1) Lightweight, compact, flexible, plenum-rated Active Optical Cables (AOC) Supports DVI 1.0 and HDCP 1.4;
(2) Supports HDMI using optional adapter cables Supports data rates up to 10 Gbps / lane or 4.95 Gbps total;
(3) Extends any DVI Single-Link resolution up t0 1000 ft. (300 meters);

(4) Plug and play without driver dependent, no extra power needed, highly resistant with EMI and RFI.

Professional Environments

Hangalaxy cables are designed for use in mission critical applications where image quality and dependability are paramount. The video signals are transmitted over four optical fibers, which make them immune to interference from environmental noise. The optical transmission path provides a very low RFI / EMI profile, which allows the cables to be installed in sensitive applications with strict security requirements. The cables draw power from the connected DVI source, eliminating the need for an external power supply. Hangalaxy AOC cables are ideally suited for applications that require ultra-high resolution DVI signals to be extended over long cable runs with flawless image quality.

Specification

Typical Application

DVI Cables Extensiv DVI cables support all singlelink DVI resolutions up to 1000 feet (300m). The DVI specification does not support audio. Compared to copper cables, the diameter is much less and the cable is more flexible. The Hangalaxy style uses the HDMI cable with a HDMI type D to DVI adapter.
