Specifications
Brand Name :
Hangalaxy
Model Number :
HGYN-0026
Certification :
CE, SGS, UL, ROHS
Place of Origin :
China
MOQ :
MOQ Saying is 10pcs
Price :
Negotiation By email or Phone Call
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
25000PCS Monthly
Delivery Time :
7-10 Business Days
Packaging Details :
1PCS Each Individual Quality PE Bag
Standards Compliance :
DisplayPort 1.4 / HBR3, HDCP 1.4 / 2.2, UL CMP-OF
Maximum Color Depth :
Up to 30 bits/pixel
AUX Channel Data Rate :
1 Mbps
HDCP Support :
HDCP 1.4 and HDCP 2.2
Minimum Bend Radius :
2 mm (fiber and jacket)
Crush Resistance :
500N
Description

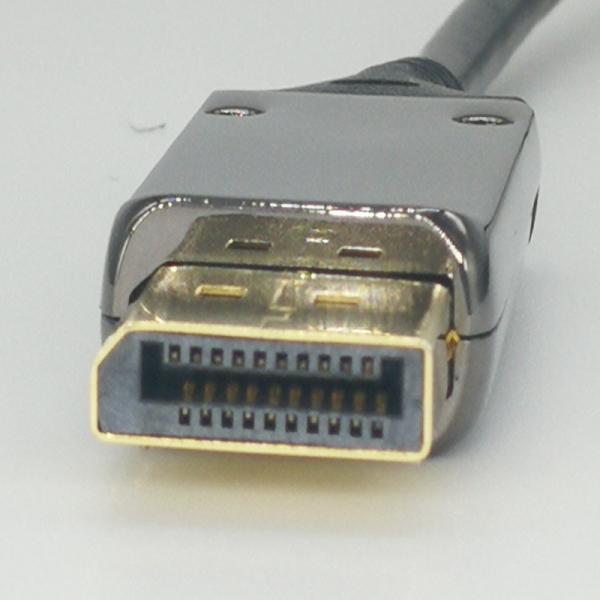

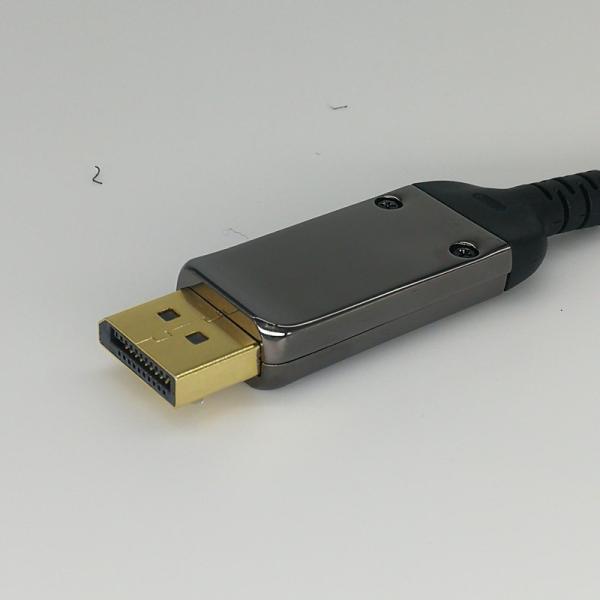

DisplayPort DP 1.4 Active Optical Cable Fully HDCP 1.4 / 2.2 Compliant

Hangalaxy Series cables are plenum rated (UL CMP-OF), compact, lightweight and highly flexible. Constructed using a hybrid design of 4x POF (Polyfluorinated Optical Fiber) and 6x copper wires, they are rugged, yet flexible, with a minimum bend radius of just two millimeters. To minimize cable diameter, two removable DisplayPort docking connectors may be detached, revealing a connector cross‑section that measures just 10 x 12.4 millimeters. The docking connectors include a locking pin for added security. These features make the cables easy to install even in narrow conduits as well as in plenum spaces.

Features & Benefits

1. DVI AOC needs to write the EDID information of the target display device at the source end, and the source end, connector come with EDID function;
2. The Active Optical Cable has directivity which are Display and Source;
3. Plug and play without driver dependent, no extra power needed, highly resistant with EMI and RFI;

4. Lightweight, compact, flexible, Plenum-rated Active Optical Cables (AOC);
5. Supports DisplayPort 1.4 HBR3, HDCP 1.4 / 2.2;
6. Supports data rates up to 8.1 Gbps / lane or 32.4 Gbps total;
7. Extends resolutions up to 8K / 30 Hz up to 164 ft. (50 meters);
8. Extends resolutions up to 4K / 60Hz up to 328 ft. (100 meters).

Technical Parameter

Bandwidth Rate

10.2Gbps
Cable Diameter 3.0mm
Tensile (Long-term / Short-term) 130N / 230N
Crush (Long-term / Short-term) 200N / 400N
Bend Radius (Dynamic / Static) 80mm / 40mm
Operating Temp. / Storage Temp. -10℃ ~ +50℃ / -20℃ ~ +80℃
Weight 50m<1kg
Connector Type Both DVI type A pluggable
Power Supply From the main equipment of the DVI electric: 5V (International Standard)
Power Consumption <250mW
Length Request 10m / 20m / 60m......100m / 300m (Has to be customized over 100m)

Data Speed 5Gbps
Crush 200N
Tensile Performance 100N
Power Consumption 0.58W
Cable Diameter 3.0mm
Bend Radius 20mm
Operating Temp. 0℃ ~ +55℃
Storage Temp. -20℃ ~ +80℃
Length 10m/15m/35m/40m/.....100m

Applications

● Industrial Control;
● Digital Signage;
● Home Network Integration;
● Medical Device Connectivity;
● KVM Extension;
● Security: web camera, access control;
● Display Port Devices Sharing: print, scan, storage.

1.4 DP Active Optical Cable Fully HDCP 1.4 2.2 Compliant 500N Crush Resistance

Hangalaxy Workshop

1.4 DP Active Optical Cable Fully HDCP 1.4 2.2 Compliant 500N Crush Resistance

Hangalaxy Exhibition Activities

1.4 DP Active Optical Cable Fully HDCP 1.4 2.2 Compliant 500N Crush Resistance

Professional Environments

These cables are designed for use in mission critical applications where image quality and dependability are paramount. The video signals are transmitted over four optical fibers, which make them immune to interference from environmental noise. The optical transmission path provides a very low RFI / EMI profile, which allows the cables to be installed in sensitive applications with strict security requirements. The cables draw power from the connected DisplayPort source, eliminating the need for an external power supply. Hangalaxy AOC cables are ideally suited for applications that require ultra-high resolution DisplayPort signals to be extended over long cable runs with flawless image quality.
