High Stability Fiber Optic Polishing Jig with Good Surface Quality and Easy to Change Jigs for SC APC Connector Type
High Stability Fiber Optic Polishing Jig with Good Surface Quality and Easy to Change Jigs for SC APC Connector Type
High Stability Fiber Optic Polishing Jig with Good Surface Quality and Easy to Change Jigs for SC APC Connector Type
High Stability Fiber Optic Polishing Jig with Good Surface Quality and Easy to Change Jigs for SC APC Connector Type
High Stability Fiber Optic Polishing Jig with Good Surface Quality and Easy to Change Jigs for SC APC Connector Type
High Stability Fiber Optic Polishing Jig with Good Surface Quality and Easy to Change Jigs for SC APC Connector Type
High Stability Fiber Optic Polishing Jig with Good Surface Quality and Easy to Change Jigs for SC APC Connector Type
High Stability Fiber Optic Polishing Jig with Good Surface Quality and Easy to Change Jigs for SC APC Connector Type
High Stability Fiber Optic Polishing Jig with Good Surface Quality and Easy to Change Jigs for SC APC Connector Type
High Stability Fiber Optic Polishing Jig with Good Surface Quality and Easy to Change Jigs for SC APC Connector Type
High Stability Fiber Optic Polishing Jig with Good Surface Quality and Easy to Change Jigs for SC APC Connector Type
High Stability Fiber Optic Polishing Jig with Good Surface Quality and Easy to Change Jigs for SC APC Connector Type
Specifications
Model Number :
SC-APC-36
Place of Origin :
Guangdong, China
Brand Name :
Chuanglixun
Certification :
ce
MOQ :
1
Price :
$268.56-365.16
Material :
Hardened stainless steel2316
Connector Type :
SC APC Connector
Size :
174*174*26mm
Ferrule Diameter :
2.50mm
Net Weight :
1.5 kgs
Gross Weight :
2.0 kgs
No. of Fiber :
36 Positions
Insertion Loss :
≤0.20dB
Return Loss :
≥60dB (APC)
End-face :
APC
Capacity :
36 positions
Radius of Curvature :
5-12mm
Apex Offset :
0-50μm
Fiber Height :
-100~+50μm
Angle :
8.00+/-0.50°
Description

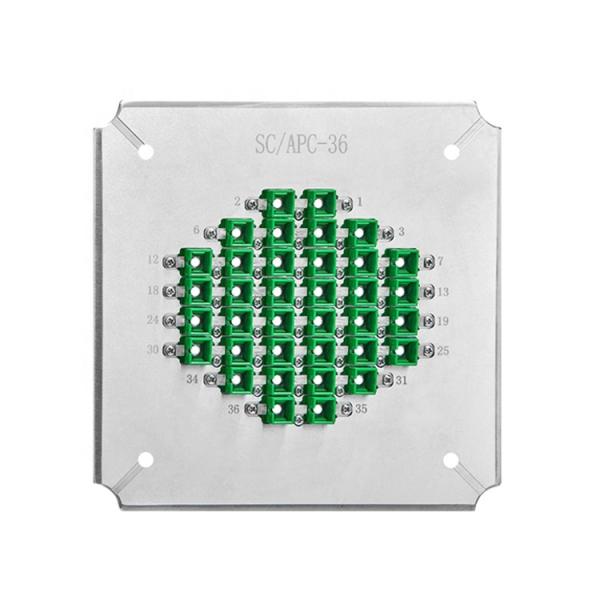

Fiber Optic 36 Connectors SC APC Polishing Jig Polishing Fixture
Product Description
This fiber polishing fixture/jig is high stability and good surface quality.Fiber polishing fixture using high quality steel with heated treat, the hardened steel S2316 providing long service life. This fiber polishing fixture can be designed with the jig of SC, FC, ST, LC, etc, and also according to the customer request.

Features

1.Designed for SC/APC connectors. 2.Easy to change jigs, simple and flexible to operate. 3.High efficiency, polishing Max 26 or 36 connectors in one cycle.The first pass yield for end face quality reach 98%～100% 4.The fiber polishing fixture is IPC Structure, Independent compression of each connector. The fiber polishing fixture pass rate with Interference> = 98% (100% Typical, according to IEC), 5.APC return loss ≥60dB , Insertion loss ≤0.20dB ( typical) 6.The accessories on the fixture can be replaced, Greatly extend the service life.
Specification
Model
SC-APC-18
SC-APC-26
SC-APC-36
Brand
CLX
CLX
CLX
Connector Type
SC APC
SC APC
SC APC
End-face
APC
APC
APC
Ferrule Diameter
2.5mm
2.5mm
2.5mm
Capacity
24 positions
26 positions
36 positions
Insertion Loss
≤0.20dB
≤0.20dB
≤0.20dB
Return Loss
≥60dB (APC)
≥60dB (APC)
≥60dB (APC)
Application
Polishing assembled SC APC connectors
Polishing assembled SC APC connectors
Polishing assembled SC APC connectors
Material
Stainless Steel S136
Dimension (L*W*H)
174*174*26 mm
Net Weight / Gross Weight (kg)
1.5 kgs / 2.0 kgs
Suitable machines
CLX-02E polishing machine
Seikoh Giken SFP-550 polishing machine
The similar machines

Polishing Effect


1. Polished Connector Ferrule Faces:
Fiber End Face
High-quality end-face polishing, no white spots, no scratches, the fiber edge is clearly visible
2. ILRL Test Result:
Connector Type
SM/UPC
SM/APC
MM/UPC
Insertion Loss
≤0.20dB
≤0.20dB
≤0.50dB
Return loss
≥55dB
≥60dB
≥30dB
3. Geometry Test Result:
NO.
Parameters
UPC Criterion
APC Criterion
1.
Radius of Curvature
5-25mm
5-12mm
2.
Apex Offset
0-50μm
0-50μm
3.
Fiber Height
-100~+50μm
-100~+50μm
4.
Angle
n/a
8.00+/-0.50°
Shenzhen Chuanglixun Optoelectronic Equipment Co., Ltd.
Shenzhen Chuanglixun Optoelectronic Equipment Co., Ltd. was established in 2010. Is an optical communications equipment company integrating research and development, production, after-sales service and technical services. We not only sell high-quality products and provide good after-sales service,but also provide free technical support to our customers. For the technical problems
encountered in the production of optical fiber connectors, there are good solutions.
