Fiber Patch Cord Manufacturing Machine Providing Solutions for Manufacturing Single Mode and Multimode Fiber Patch Cords
Fiber Patch Cord Manufacturing Machine Providing Solutions for Manufacturing Single Mode and Multimode Fiber Patch Cords
Specifications
Connector Type :
MPO
Model Number :
CLX-MU9202
Net Weight :
4.0 kgs
Applicable Fiber Type :
9/125, 50/125, 62.5/125
Price :
$1,035-1,186
Power Source :
AC 100-240V
Brand Name :
Chuanglixun
Operation Temperature :
-5～+40 ℃
Cable Core :
12/24/32/48 Core
Storage Temperature :
-25～+70 ℃
Machine Size :
240*400*160 (mm)
Gross Weight :
5 kgs
Light Source :
Visible red light
Voltage :
110V/220V
Power Supply :
110VAC/220VAC 50HZ
Material :
Plastic
Place of Origin :
Guangdong, China
Interface Support :
USB, RS232
Size :
240*400*160 (mm)
MOQ :
1
Description

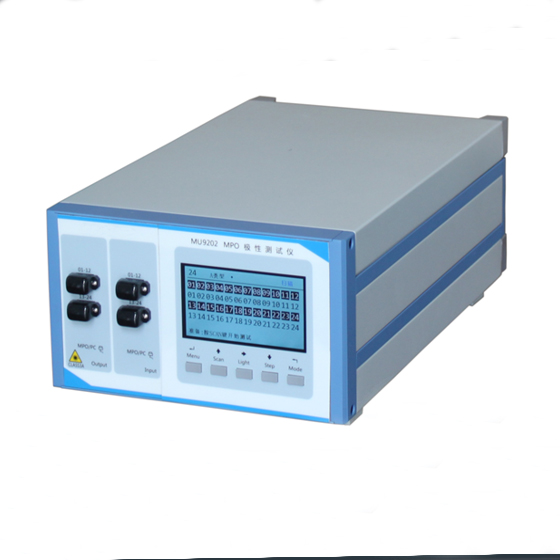

CLX-MU9202 MPO/MTP Fiber Optic Polarity Testing Equipment

12/24/48 Core MPO Polarity Tester for Fiber Optic Patch Cord Testing with 110V/220V Power Supply

Fiber Patch Cord Manufacturing Machine Providing Solutions for Manufacturing Single Mode and Multimode Fiber Patch Cords

Product Overview

The MPO/MTP Fiber Optic Polarity Tester is designed to verify fiber polarity, continuity, and sequence accuracy throughout the MPO/MTP patch cord manufacturing process. Using visible red light detection, it quickly identifies fiber sequence and polarity conditions in MPO-MPO patch cords and fan-out assemblies. The equipment is suitable for production inspection, semi-finished cable testing, and final quality control, helping improve testing efficiency and product consistency.

Key Features

  • Supports 12, 16, 24, 32, and 48-core fiber configurations, including customized core testing requirements

  • Compatible with SM 9/125, MM 50/125, and MM 62.5/125 fiber types

  • Allows users to configure polarity testing parameters according to different requirements

  • Learning mode with built-in error alarm for convenient operation

  • Provides detailed polarity error identification and analysis

  • Replaceable MPO connector modules for easier maintenance and servicing

  • Equipped with USB and RS232 interfaces for communication and data connection

  • Supports connection with an upper-level monitoring system for production management

  • Suitable for MPO/MTP patch cord and fan-out cable inspection

Fiber Patch Cord Manufacturing Machine Providing Solutions for Manufacturing Single Mode and Multimode Fiber Patch Cords Fiber Patch Cord Manufacturing Machine Providing Solutions for Manufacturing Single Mode and Multimode Fiber Patch Cords

Technical Specifications

Item Specification
Equipment Type MPO/MTP Fiber Optic Polarity Tester
Network Applications FTTH / FTTB / FTTX
Overall Dimensions 240 × 400 × 160 mm
Net Weight Approx. 4.0 kg
Supported Core Counts 12 / 24 / 32 / 48 Core
Compatible Fiber 9/125 / 50/125 / 62.5/125
Operating Temperature Range -5°C to +40°C
Input Power 110 VAC / 220 VAC, 50 Hz
Storage Temperature -25°C to +70°C
Get a Free Quotation via Us >>> GO

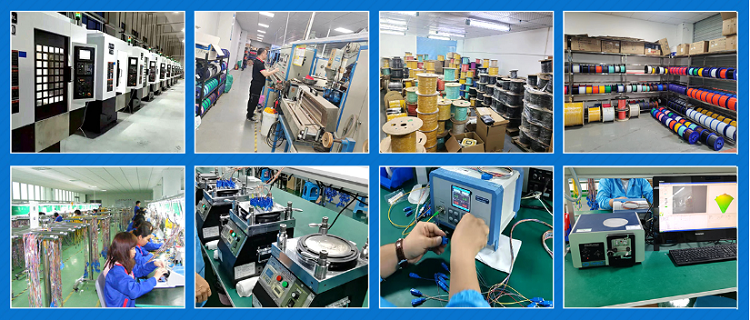

Company Profile
Fiber Patch Cord Manufacturing Machine Providing Solutions for Manufacturing Single Mode and Multimode Fiber Patch Cords
Shenzhen Chuanglixun Optoelectronic Equipment Co., Ltd.
Established in 2010, Shenzhen Chuanglixun Optoelectronic Equipment Co., Ltd. is a comprehensive optical communications equipment company integrating research and development, production, after-sales service, and technical support. We deliver high-quality products with excellent after-sales service and provide complimentary technical assistance for fiber optic connector production challenges.
Fiber Patch Cord Manufacturing Machine Providing Solutions for Manufacturing Single Mode and Multimode Fiber Patch Cords
Fiber Patch Cord Manufacturing Machine Providing Solutions for Manufacturing Single Mode and Multimode Fiber Patch Cords
Fiber Patch Cord Manufacturing Machine Providing Solutions for Manufacturing Single Mode and Multimode Fiber Patch Cords
Fiber Patch Cord Manufacturing Machine Providing Solutions for Manufacturing Single Mode and Multimode Fiber Patch Cords
Fiber Patch Cord Manufacturing Machine Providing Solutions for Manufacturing Single Mode and Multimode Fiber Patch Cords
Fiber Patch Cord Manufacturing Machine Providing Solutions for Manufacturing Single Mode and Multimode Fiber Patch Cords
Frequently Asked Questions
Are you a factory or a trader?
We are a factory.
What is your MOQ?
Minimum order quantity is 1 piece.
Do you provide sample services?
Yes, we provide samples.
How will you ship to me?
We ship via DHL or FedEx within 4 to 6 days, with potential extension based on order quantity.
How do we pay?
Advance booking or multiple payment methods including T/T and T/L.
How long is your product warranty?
1-year warranty with free repairs (excluding consumables). After warranty period, accessories provided at cost.
Do you provide customized services?
Yes, we provide customized services according to customer requirements and specifications.
