480/240 Fibers Heat Shrinkable Joint Closure Cable Sealing 525 X 245 Mm
480/240 Fibers Heat Shrinkable Joint Closure Cable Sealing 525 X 245 Mm
480/240 Fibers Heat Shrinkable Joint Closure Cable Sealing 525 X 245 Mm
480/240 Fibers Heat Shrinkable Joint Closure Cable Sealing 525 X 245 Mm
480/240 Fibers Heat Shrinkable Joint Closure Cable Sealing 525 X 245 Mm
480/240 Fibers Heat Shrinkable Joint Closure Cable Sealing 525 X 245 Mm
Specifications
Model Number :
GPJ-01V10
Place of Origin :
Zhejiang,China
MOQ :
10 pcs
Payment Terms :
T/T
Delivery Time :
in one week
Fiber Optic Splice Tray :
40 pieces of FOST with 12 fibers per tray
Total Capacity :
480 fibers
Dimension :
525x245 mm
No of Cable Entry :
2 large oval port 8 round ports
Description

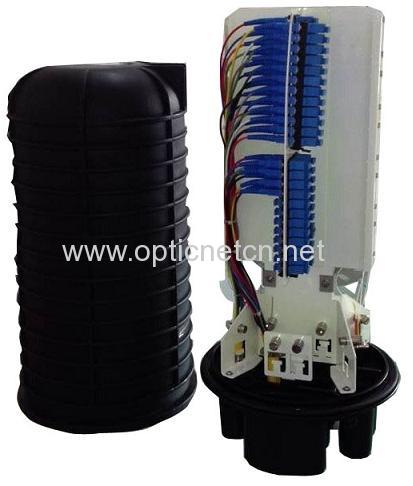

480/240 fibers Fiber Optic Splice Closure Heat Shrinkable Joint Closure Cable Sealing Fiber Optic Joint Box

GPJ-01V10 Fiber Optic Splice Closure

480/240 Fibers Heat Shrinkable Joint Closure Cable Sealing 525 X 245 Mm

480/240 Fibers Heat Shrinkable Joint Closure Cable Sealing 525 X 245 Mm

Specification

● Easy to re-enter, it never requires re-entry tool kit.

● The strong housing provide fire resistant, waterproof and quakeproof while protecting splices during pulling, torsining and impacting

● Design flexibility and high reliable sealing system

● Cable sealing method: heat shrink type

Application

● It can be used in straight-through and branching application

● It can be used in aerial, underground, direct buried, wall-mounting, hand hole and duct mounting application.

● it can be mounted on a pole, wall or strand.

Ordering Information

Model No.

Fiber Optic Splice Tray

(FOST)

Total Capacity

(fibers)

 No. of adapters

Dimension

(H x D) mm

No of

Cable Entry

GPJ-01V10 I

40 pieces of FOST

with 12 fibers per tray

480 fibers

/

525x245

2 large oval port

8 round ports
GPJ-01V10 II

20 pieces of FOST

with 12 fibers per tray

 240 fibers 48 pcs of SC

Accessories

The accessories included in the FOSC: earthing wire, nylon tie, buffer tube, emery paper, metal paper, metal hoop, insulation tape, aluminum foil.

The accessories to be ordered in addition: earthing ground, pressure testing valve, small heat shrinkable fixing sleeve (for small round), big heat shrinkable fixing sleeve with branching-off clip (for large oval port)
