Low Profile Interconnection Optical Termination Box MDU For SC Duplex 4 Pcs
Low Profile Interconnection Optical Termination Box MDU For SC Duplex 4 Pcs
Low Profile Interconnection Optical Termination Box MDU For SC Duplex 4 Pcs
Low Profile Interconnection Optical Termination Box MDU For SC Duplex 4 Pcs
Low Profile Interconnection Optical Termination Box MDU For SC Duplex 4 Pcs
Low Profile Interconnection Optical Termination Box MDU For SC Duplex 4 Pcs
Specifications
Model Number :
MDU 208F
Place of Origin :
Zhejiang,China
MOQ :
10 pcs
Payment Terms :
T/T
Delivery Time :
in one week
PLC Splitter :
1x4, 2x4,1x8
Max. No. of Adapter :
4 pcs of SC duplex
Dimension(mm) :
200x150x45
Max Capacity :
8 fibers
Description

Fiber Optic Terminal Box, Splitter Terminal, Outdoor Fiber Termination Box, MDU for 4 pcs of SC Duplex

Outdoor MDU 208F Splitter Terminal

Description

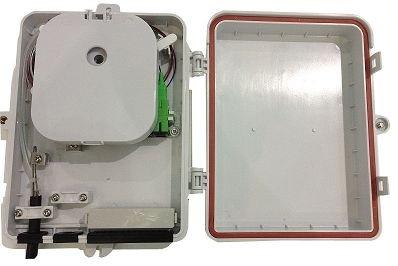

The MDU 208F Splitter Terminal from Optic Network Technology is rugged, low cost, low profile interconnection between central office and multi-dwelling units of FTTx application.

The design of MDU 208F splitter terminal combines the functionality of a local convergence cabinet with MDU terminal.

Its multilayer design allows installers to access only the components necessary for initial installation or subscriber turn-up. It can house the splitter and allows for pigtail splicing of distribution/drop cables as needed.

Low Profile Interconnection Optical Termination Box MDU For SC Duplex 4 Pcs

Features

  • Indoor or outdoor rated
  • Available 1x4, 2X4,1x8 splitter as well as splitter
  • Max. up 8 pcs of FTTH drop cable or pigtails
  • Suitable for wall-mounting or pole mounting application
  • 2 pcs of inlet ports and 8 pcs of outlet ports
  • IP Grade: IP 55

Application

  • FTTH, FTTB, FTTC
  • Telecommunication Network
  • CATV
  • Local Area Network

Low Profile Interconnection Optical Termination Box MDU For SC Duplex 4 Pcs Low Profile Interconnection Optical Termination Box MDU For SC Duplex 4 Pcs

Dimensions

Model PLC Splitter Max Capacity Max. No. of Adapter

Dimension (mm)

(WxLxD)

 No. of Ports
MDU 208F 1x4, 2x4, 1x8 8 fibers 4 pcs of SC duplex 200x150x45

2 input ports and

8 output ports for drop cable
