RS422 Output Dual Axis Gyroscope High Sensitivity 2 Axis Gyroscope Industrial 2F64
RS422 Output Dual Axis Gyroscope High Sensitivity 2 Axis Gyroscope Industrial 2F64
Specifications
Brand Name :
JTZG
Place of Origin :
china
MOQ :
negotiable
Price :
negotiable
Payment Terms :
Negotiable
Supply Ability :
Strong production capacity
Delivery Time :
According to customer's requirement
Product Name :
Dual Axis Gyroscope
Technology :
Fiber Optic Gyroscope
Grade :
Industrial
Applications :
Aerospace, Defense, Navigation, Robotics
Warranty :
1 year
Customized Support :
OEM, ODM
Description

2F64 Dual-Axis Fiber Optic Gyroscope

The 2F64 Dual-Axis Fiber Optic Gyroscope is a high-performance angular velocity sensor, engineered for exceptional precision and reliability in demanding and dynamic environments. Leveraging advanced fiber optic technology, the 2F64 delivers wide measurement range and rapid response times, making it the ideal choice for applications where both accuracy and speed are paramount.

Key Features:

  • High Sensitivity and Precision: Delivers ultra-accurate angular velocity measurements with minimal noise, ensuring superior performance even in the most challenging environments.
  • Compact and Lightweight: Its space-saving design allows for seamless integration into compact systems, without compromising on measurement accuracy or operational efficiency.
  • Exceptional Ruggedness: Engineered to endure shock, vibration, and temperature fluctuations, the 2F64 is built for long-lasting durability, ensuring reliable performance in harsh conditions.
  • Electromagnetic Immunity: With its resistance to electromagnetic interference, the 2F64 guarantees stable and interference-free operation, even in environments with high electromagnetic noise.
  • Proven Reliability: Designed for continuous operation, this gyroscope offers outstanding long-term stability, minimizing the need for recalibration and reducing maintenance costs over time.

Gyro Level

standard

A

Range ( RS422 Output Dual Axis Gyroscope High Sensitivity 2 Axis Gyroscope Industrial 2F64)

±300

Bias stability ( RS422 Output Dual Axis Gyroscope High Sensitivity 2 Axis Gyroscope Industrial 2F64) , 10s

＜ 0.3

＜ 0.2

Zero bias repeatability ( RS422 Output Dual Axis Gyroscope High Sensitivity 2 Axis Gyroscope Industrial 2F64) , 10s

＜ 0.3

＜ 0.2

Random walk coefficient (°/√h RS422 Output Dual Axis Gyroscope High Sensitivity 2 Axis Gyroscope Industrial 2F64)

< 0.03

＜ 0.02

Scale factor non-linearity ( ppm )

＜ 300

＜ 100

Scale factor asymmetry ( ppm )

＜ 300

＜ 100

Scale factor repeatability ( ppm )

＜ 300

＜ 100

Frequency bandwidth ( Hz )

≥100

Startup time ( s )

≤5

Magnetic shielding

The optical fiber ring of key sensitive devices has magnetic shielding

Power supply ( V )

5V power supply

Power consumption ( W )

≤4

Dimensions ( mm )

64*60*40

Weight ( g )

280 ± 10

Output method

RS-422

Operating temperature (°C)

-20 ℃ ~+60 ℃

-40 ℃ ~+60 ℃

Storage temperature (℃)

-55 ℃ ~+85 ℃

Communication interface

DB9 , J30J-15-TJ , customizable

RS422 Output Dual Axis Gyroscope High Sensitivity 2 Axis Gyroscope Industrial 2F64

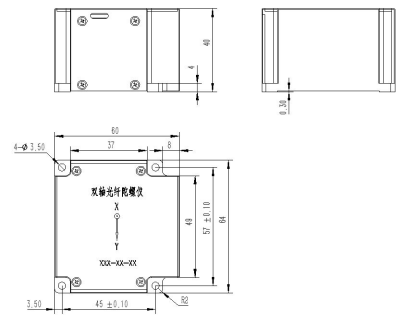

2F64 Installation size drawing
