Specifications
Brand Name :
Fongko
Model Number :
FKEQU-344
Certification :
CE
Place of Origin :
Shenzhen
MOQ :
1 set
Price :
Negotiatable
Payment Terms :
L/C, T/T
Delivery Time :
3 days
Product name :
Fiber Optic Fusion Splicer
Function :
Splice fiber
Description

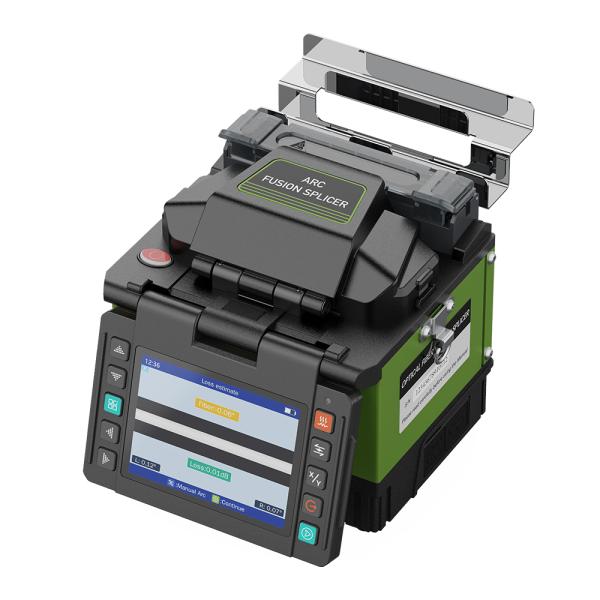

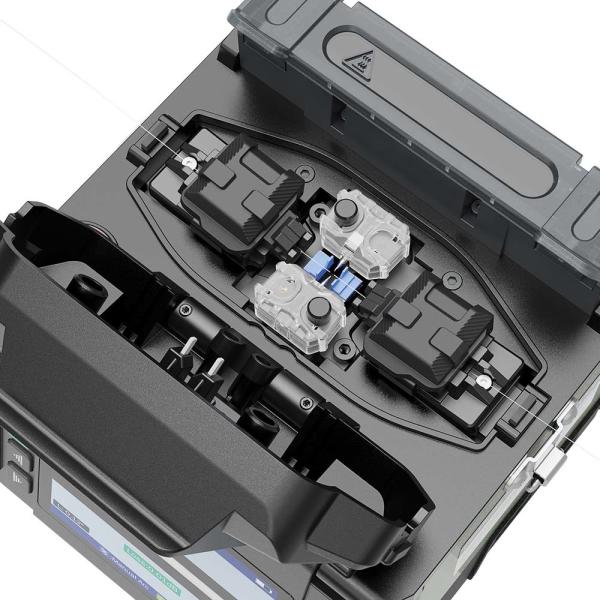

FONGKO EX39 Machine 4 Motors Multi-langua SM Fiber Type FTTH Applications Optical Equipment Fiber Optic Fusion Splicer

A fiber fusion splicer is a device used to join two optical fibers end-to-end using heat. The goal is to fuse the fibers so
precisely that light passing through them is minimally scattered or reflected, resulting in low-loss and low-reflection
connections.
Key Features of a Fiber Fusion Splicer: * Core alignment or cladding alignment technology for precise fusion.
* High-magnification cameras for visual fiber positioning.
* Automatic arc calibration for consistent splicing quality.
* Touchscreen display and user-friendly interfaces.
* Built-in heater for shrinking splice protection sleeves.

Common Applications:
* Telecommunication networks
* FTTH (Fiber to the Home) installations
* Data centers
* Cable TV (CATV) systems
* Military and aerospace communications

Splice Method:
Active Clad-Alignment
Applicable Fibers:
SM(ITU-T G.652&G.657) / MM(ITU-T G.651) / DS(ITU-T G.653) /NZDS(ITU-T G.655)
Compatible Fiber/Cable:
0.25~3.0 mm / indoor flat cable
Fiber Holder:
Replaceable
Fiber Diameter:
Cladding:80-150μm,Coating:100~1000μm
Fiber Cleave Length:
8~16 mm
Splice mode:
Max 128 modes
Typical Splice Loss:
SM:0.03dB/MM: 0.01dB/DS:0.04dB/NZDS:0.04dB/G.657: 0.03dB★①
Return Loss:
>>60dB
Splicing Time:
SM Quick mode : 8 sec / SM Average:10 Sec.
Estimated Splice Loss:
Available
Heating Time:
Quick mode 18 sec.(SM G652 250μm 40mm Sleeve) adjustable★②
ProtectionSleeve Length:
20mm,30mm,40mm,50mm,60mm
Heat Programs:
Max 32 modes
Battery:
4000mAh Battery Capacity, Typical 120 Cycles (Splice&Heat) per Charge ★③
Electrode Life:
5000 arcs, can be extended by using an electrode grinder ★④
Auto-start:
Splice / Heating
Automatic Fiber Identification :
/
Automatic ARC Identification:
Automatic arc calibration by air pressure and temperature
Results Storage:
The last 10,000 splice records and 2,000 result images
Tension Test:
1.96~2.25N
Operating Condition:
Altitude:0~5000m, 0~95% relative humidity,-20~50°C,Max Wind 15m/s
Storage Condition:
0~95% relative humidity,-20~60°C
Display:
3.5”color high resolution (800 x 480) display
Fiber Magnification:
X, Y,XY,X/Y:320X Magnification
Power Supply:
AC 100-240V,DC9-14V
Terminal:
USB2.0
Weight:
1.06kg without battery / 1.35kg with battery
Size:
130Hx113Wx 126D mm
