Specifications
Brand Name :
Fongko
Model Number :
FKEQU-347
Certification :
CE
Place of Origin :
Shenzhen
MOQ :
1 set
Price :
Negotiatable
Payment Terms :
L/C, T/T
Delivery Time :
3 days
Product name :
Fiber Optic Identifier
Function :
Recognize the signal
Description

FONGKO KFI-35 Cable Testing Equipment Fiber Optic Identifier 800-1700nm Live Fiber Detector Identifier

Display relative optical power.

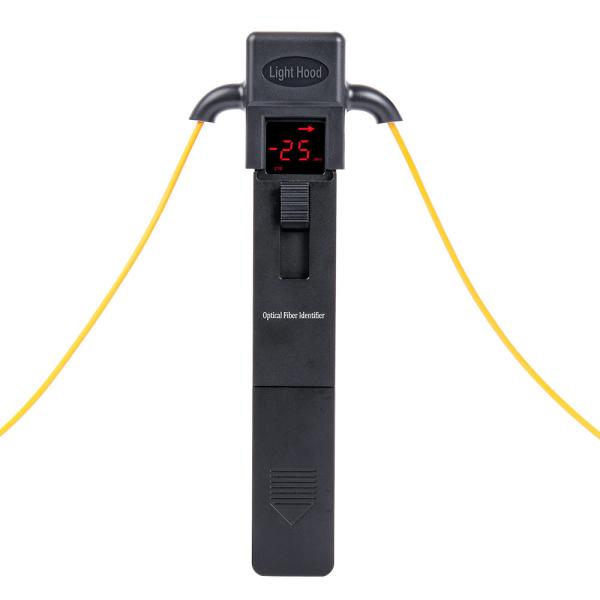

Test online without interruption of the link.
Recognize the signal of 270Hz, 1KHZ,2KHz.
Comes with a hood to provide more accurate test results outdoors.
ldentify the propagation direction of light,sound alarm reminder.

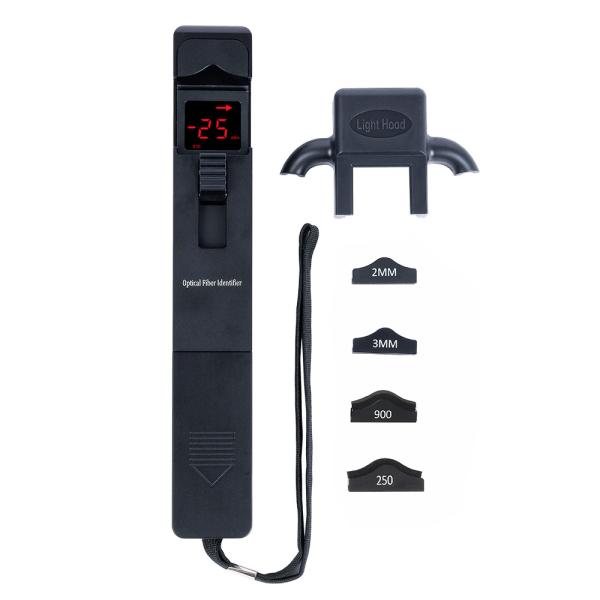

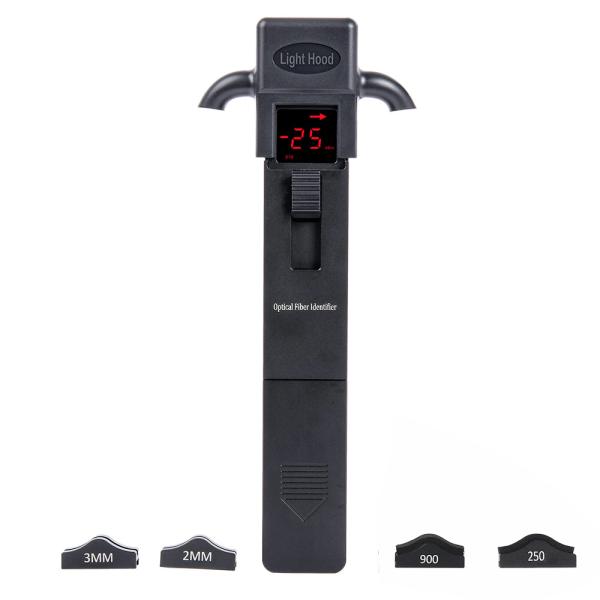

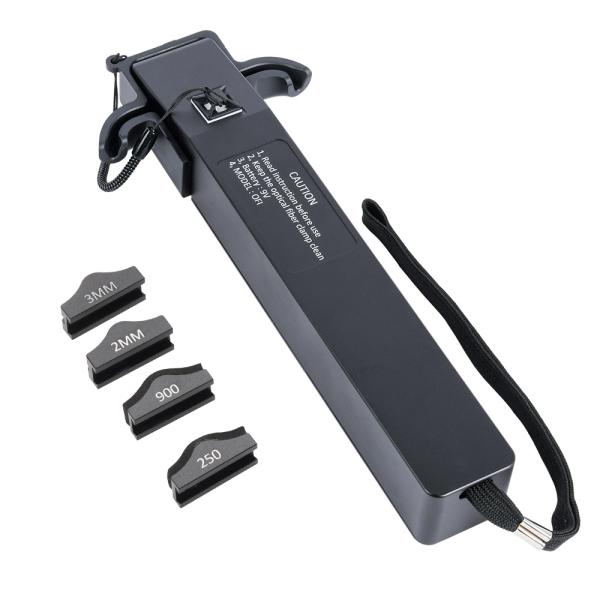

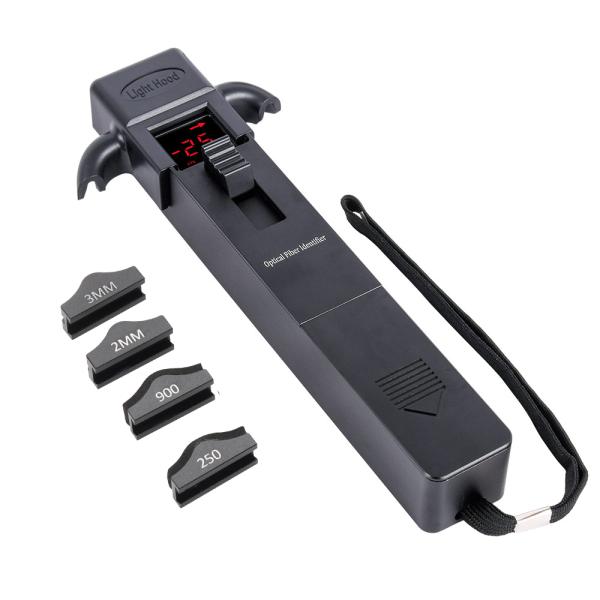

LED display,4 fxtures support bare fiber,0.9mm, 2mm, 3mm fiber.
Test sensitivity -40dBm to 10dBm. Low power reminder.
Identifed Wavelength Range
800nm to 1700nm
Identifed Signal Type
CW,270 Hz ± 5%,1 kHz ± 5%,2 kHz ± 5%
Detector Type
φ1mm InGaAs2 pcs
Adapter Type
φ0.25(for Bare Fiber),φ0.9,φ2.0(Applicable for φ3.0Cable)
Signal Direction
Left & Right LED
Optical Power Reading
-40 dBm to 10 dBm
Signal Frequency
270Hz,1kHz,2kHz
Power Supply
6F22ND/6LR61
Operating Temperature
-10℃ to 60℃
Storage Temperature
-25℃ to 70℃
Dimension
19.5*8*3cm
Weight
255g
