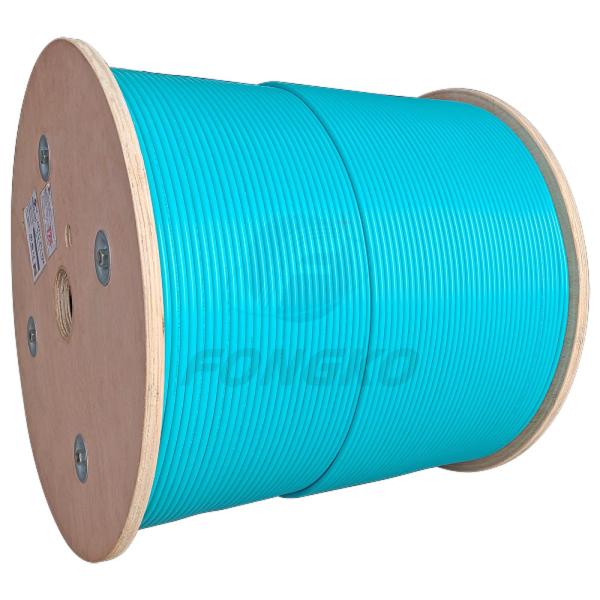

OEM 12 Core lszh Breakout Fiber Optic Cable GJBFJH OM3
OEM 12 Core lszh Breakout Fiber Optic Cable GJBFJH OM3
OEM 12 Core lszh Breakout Fiber Optic Cable GJBFJH OM3
OEM 12 Core lszh Breakout Fiber Optic Cable GJBFJH OM3
OEM 12 Core lszh Breakout Fiber Optic Cable GJBFJH OM3
OEM 12 Core lszh Breakout Fiber Optic Cable GJBFJH OM3
OEM 12 Core lszh Breakout Fiber Optic Cable GJBFJH OM3
OEM 12 Core lszh Breakout Fiber Optic Cable GJBFJH OM3
Specifications
Model Number :
FKCAB-033
Place of Origin :
China
Brand Name :
FONGKO
MOQ :
1000 Meters
Price :
Negotiatable
Type :
Fiber Optic Cable, Multi Purpose Break-out Cable( GJPFJV)
Use :
other
Network :
FTTH FTTX
Jacket :
PVC(LSZH)
Fiber color :
IEC Standard
Core number :
24-120 cores
Fiber type :
G.652/G.655/50/125μm/62.5/125μm
Cable diameter :
13.8±0.5mm~31±1mm
Usage :
Indoor distribution
Description
Product Description

Cable De Fibra Optica Communication Cables Gjpfjv Indoor Multi Purpose Break-Out Cable

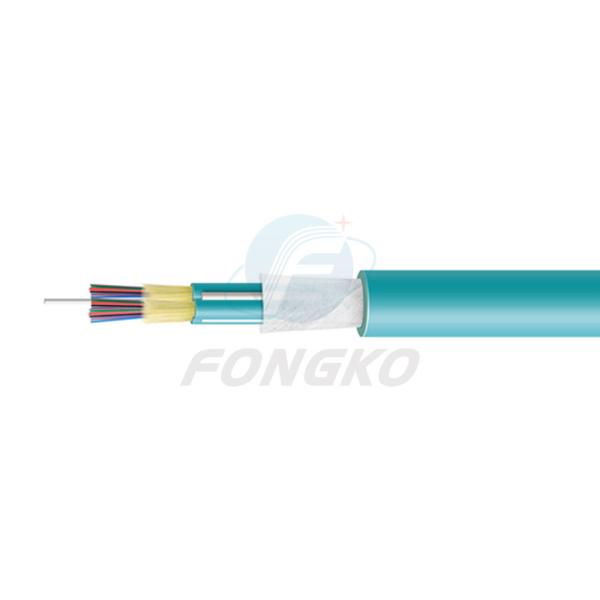

GJBFJH cable is made by the tight buffer fiber wrapped with a layer of aramid yarn as strength member units,multi fibers as the sub unit twist with FRP into the circle ,and finally into fiber optic cable with PVC or LSZH sheath,with dry-type water-blocking materials between fiber and sheath.

Features:

1.Tight buffer fiber with single strength member and sheath to overcome the effect from bad environment and Mechanical stress.
2.The low smoke and low halogen flame retardant sheath has the characteristics of fire prevention and self extinguishing, and is suitable for indoor environment such as computer room, cable shaft and indoor wiring.
3.LSZH sheath,UV,Waterproof mildew,ESCR,No acid gas release,non-corrosive room equipment, suitable for indoor and outdoor use or need a high flame-retardant grades of the indoor environment (such as wiring in the ceiling, open wire cabling etc.)

Fiber Count

Cable Diameter
mm

Cable Weight
Kg/km

Tensile Strength
Long/Short Term
N

Crush Resistance
Long/Short Term
N/100m

Bending Radius
Static/Dynamic
mm
24
13.8±0.5
70
500/1300
300/1000
30D/15D
48
18.0±0.5
150
500/1300
300/1000
30D/15D
96
25.0±0.5
340
500/1300
300/1000
30D/15D
120
31.0±1mm
530
500/1300
300/1000
30D/15D
OEM 12 Core lszh Breakout Fiber Optic Cable GJBFJH OM3
OEM 12 Core lszh Breakout Fiber Optic Cable GJBFJH OM3OEM 12 Core lszh Breakout Fiber Optic Cable GJBFJH OM3

Company Profile
OEM 12 Core lszh Breakout Fiber Optic Cable GJBFJH OM3
PACKING&SHIPPING
OEM 12 Core lszh Breakout Fiber Optic Cable GJBFJH OM3
