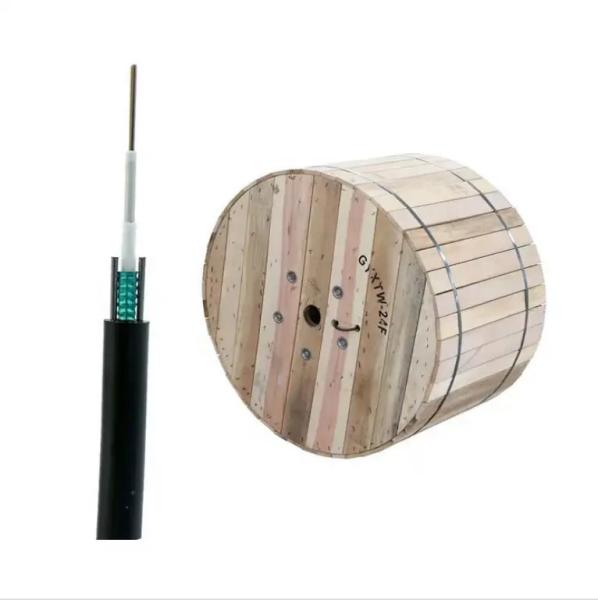

GYXTW53 Fiber Optic Cable SM G.657A1 G652D Armored FTTH Fiber Optical Cable for Outdoor
GYXTW53 Fiber Optic Cable SM G.657A1 G652D Armored FTTH Fiber Optical Cable for Outdoor
GYXTW53 Fiber Optic Cable SM G.657A1 G652D Armored FTTH Fiber Optical Cable for Outdoor
GYXTW53 Fiber Optic Cable SM G.657A1 G652D Armored FTTH Fiber Optical Cable for Outdoor
GYXTW53 Fiber Optic Cable SM G.657A1 G652D Armored FTTH Fiber Optical Cable for Outdoor
GYXTW53 Fiber Optic Cable SM G.657A1 G652D Armored FTTH Fiber Optical Cable for Outdoor
GYXTW53 Fiber Optic Cable SM G.657A1 G652D Armored FTTH Fiber Optical Cable for Outdoor
GYXTW53 Fiber Optic Cable SM G.657A1 G652D Armored FTTH Fiber Optical Cable for Outdoor
Specifications
Brand Name :
Fongko
Model Number :
GYXTW53
Certification :
Rohs, SGS, ISO
Place of Origin :
Shenzhen,Guangdong,China
MOQ :
100
Price :
Negotiatable
Payment Terms :
T/T, Western Union, L/C
Product Name :
Fiber Optic Cable
Fiber Type :
G652D,G657A2, G657A1, OM1 OM2 OM3 OM4,etc
Fiber Counts :
1-12Cores
Jacket Material :
MDPE
Working temperature :
40 ~+75 0C
Cable Diameter :
12-20mm
Steel Wire Size :
0.8mm
Description

GYXTW53 Optical Fiber Cable
The fibers are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The tube is wrapped with a layer of corrugated steel tape. Between the corrugated steel tape and the loose tube water-blocking material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel tape. The cable is completed with a polyethylene (PE) sheath.

Applications:
★Long distance and Local Area Network (LAN) communication.

★GYXTW53 cable is suitable for aerial duct or buried installation.

Features:
★Steel-wire parallel member, doubled armoured and sheath can protect the fiber .
★Excellent mechanical performance.
★Easy to installation and operation.

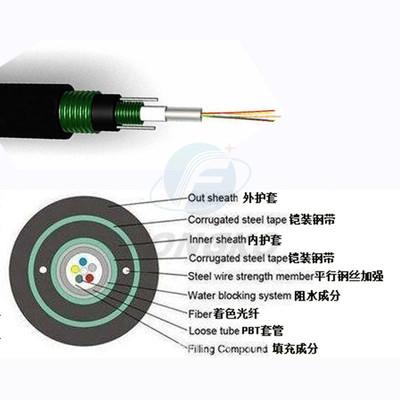

Cable Structure:

GYXTW53 Fiber Optic Cable SM G.657A1 G652D Armored FTTH Fiber Optical Cable for Outdoor

GYXTW53 Fiber Optic Cable SM G.657A1 G652D Armored FTTH Fiber Optical Cable for Outdoor

GYXTW53 Fiber Optic Cable SM G.657A1 G652D Armored FTTH Fiber Optical Cable for Outdoor

GYXTW53 Fiber Optic Cable SM G.657A1 G652D Armored FTTH Fiber Optical Cable for Outdoor
