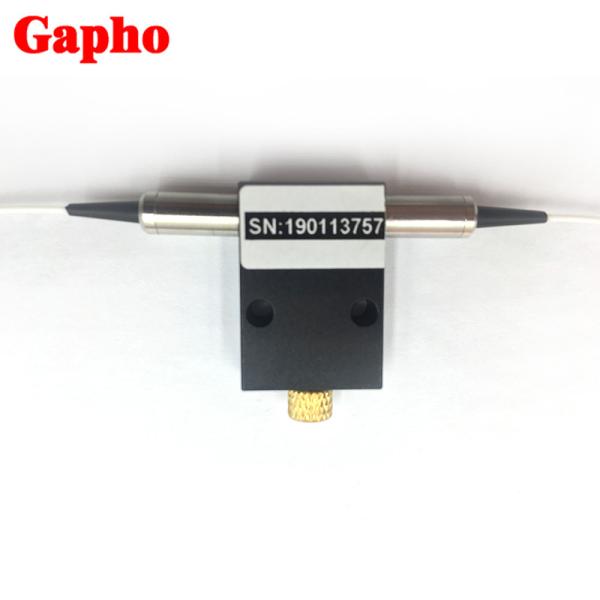

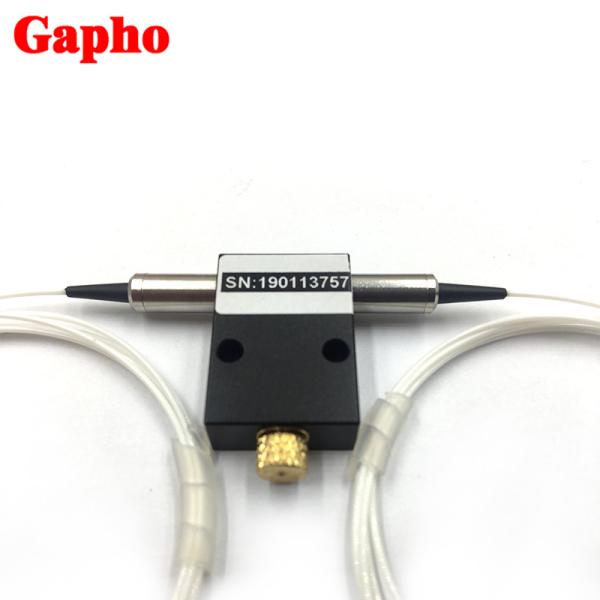

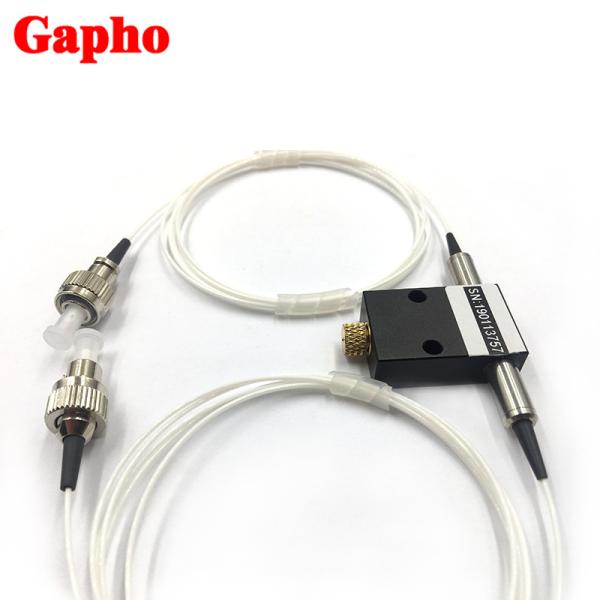

VOA 980 / 850nm Mechanical Fiber Optical Attenuator For WDM Protection System
VOA 980 / 850nm Mechanical Fiber Optical Attenuator For WDM Protection System
VOA 980 / 850nm Mechanical Fiber Optical Attenuator For WDM Protection System
VOA 980 / 850nm Mechanical Fiber Optical Attenuator For WDM Protection System
VOA 980 / 850nm Mechanical Fiber Optical Attenuator For WDM Protection System
VOA 980 / 850nm Mechanical Fiber Optical Attenuator For WDM Protection System
VOA 980 / 850nm Mechanical Fiber Optical Attenuator For WDM Protection System
VOA 980 / 850nm Mechanical Fiber Optical Attenuator For WDM Protection System
Specifications
Brand Name :
GAPHO
Model Number :
Fiber Optical Attenuator
Place of Origin :
China
MOQ :
50
Price :
negotiate
Payment Terms :
T/T, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000
Delivery Time :
7-10 day
Packaging Details :
Carton,pearl cotton,bubble bag,plastic bag
Operating wavelength(nm) :
980/850
Attenuation range(dB) :
0~60(manually runed variable)
Return loss(dB) :
≥55
PDL(dB) :
≤0.15
Fiber type :
SMF 28e/HI 1060 or specify
Max.power(mW) :
≤ 1000 mW
Description

mechanical Fiber Optical Attenuator VOA 980/850 nm copper bare fiber for WDM/Optical Switch Protection SystemMechanical Manual Adjustable Attenuator.docx

Feature:

  • Low insertion loss
  • High precision/high resolution
  • High stability and reliability
  • Wide wavelength range

Application

  • WDM/Optical Switch Protection System
  • Circulator/Isolator Protection System
  • Optical Amplification Network
  • Fiber Optic Sensor/Receiver Protection

specifications

parameter specification
Operating wavelength(nm) 1310/1550 1064 980 850 780 633
Bandwidth(nm) ±40 ±20 ±20 ±20 ±20 ±20
Attenuation range(dB) 0~60(manually runed variable)
Attenuation resolution(dB) ≤0.2
Insertin loss(dB) ≤0.8 ≤0.8 ≤0.8 ≤0.8 ≤0.8 ≤0.8
Return loss(dB) ≥55
PDL(dB) ≤0.15
Fiber type SMF 28e/HI 1060 or specify
Max.power(mW) ≤ 1000 mW
Operation temperture(℃) -20~+70
Storage temperature(℃) -45~+85
Package dimensions(mm) 26x18x8 or specify

ordering information

wavelength Fiber type Pigtail type Connector type

shell material

 Shell size
1064 nm Smf-28e Bare fiber None Aluminum alloy 28x18x8 mm
1310 nm HI 1060 900 um loose tube FC/APC Stainless steel 26x18x8 mm
1550 nm 50/125 2 mm loose tube SC/UP copper 15x18x8 mm
980 nm 62.5/125 3 mm loose tube LC/UPC copper specify
850 nm Specify specify specify
specify

VOA 980 / 850nm Mechanical Fiber Optical Attenuator For WDM Protection SystemVOA 980 / 850nm Mechanical Fiber Optical Attenuator For WDM Protection SystemVOA 980 / 850nm Mechanical Fiber Optical Attenuator For WDM Protection SystemVOA 980 / 850nm Mechanical Fiber Optical Attenuator For WDM Protection System

company prolife

VOA 980 / 850nm Mechanical Fiber Optical Attenuator For WDM Protection System

VOA 980 / 850nm Mechanical Fiber Optical Attenuator For WDM Protection System

​

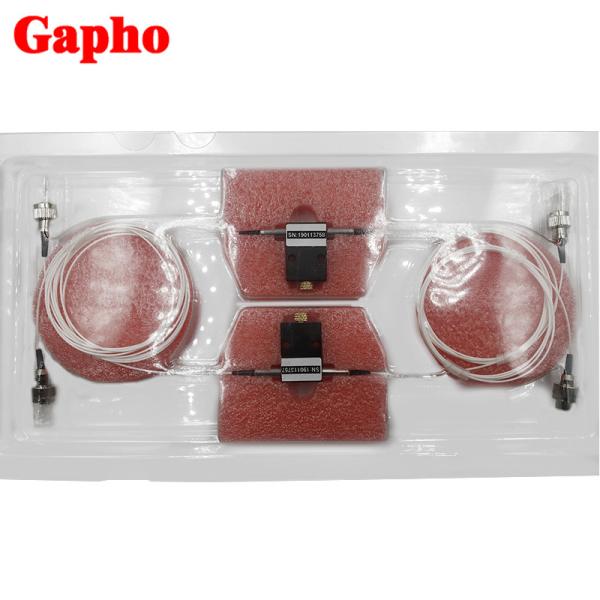

According to the customer's requirement.

We can provide packing according to customer's requirement, quantity, weight and volume.

Our Services:We can provide customized products for customers. We only need to provide requirements, samples, specifications, drawings, etc.

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 1-2 days if the goods are in stock. or it is 3-6 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q:What certificate we have?

A: ISO 9001: 2015, RoSH, CE, High and New Tech Enterprise Certficate.

Q: What is your delivery date?

A: The delivery date is approximately 3-5days, depending on the order quantity.
