Automatic Measurement Rack 1×N Fiber Optical Switch With LED Display Panel
Automatic Measurement Rack 1×N Fiber Optical Switch With LED Display Panel
Automatic Measurement Rack 1×N Fiber Optical Switch With LED Display Panel
Automatic Measurement Rack 1×N Fiber Optical Switch With LED Display Panel
Automatic Measurement Rack 1×N Fiber Optical Switch With LED Display Panel
Automatic Measurement Rack 1×N Fiber Optical Switch With LED Display Panel
Specifications
Brand Name :
GAPHO
Model Number :
Rack 1×N(N≤ 16) Optical Switch
Place of Origin :
China
MOQ :
50
Price :
negotiate
Payment Terms :
T/T
Supply Ability :
10000
Delivery Time :
7-10 day
Packaging Details :
Carton
Wavelength Range :
750~850nm
Test Wavelength :
850 nm
Insertion Loss :
Typ. ≤ 0.8dB,Max.≤ 1.5 dB
Repeatability :
≤ ±0.02dB
Fiber type :
50/125um
Connector :
FC/APC
Operating Temperature :
-5 ～ 55
Size :
1U:483 x 230 x 45
Monitoring Port :
RJ45 & RS-232
Brand name :
GAPHO
Description
Rack 1×N(N≤ 16) Optical Switch for Automatic Measurement ,Optical Network Remote Monitoring with LED display panel
Introduction:
1×N rack-mounted optical switch is a kind of functional device,with the ability of controlling and switching optical route. It can be manually selected from front panel or controlled via RS232 port, Ethernet port and auto-scanned on certain frequency. In optical fiber transmission system, it is used for multi-channel fiber monitoring, multi light source/ detector selection, and optical fiber path protection etc. Besides, it is also used in optical fiber test system for optical fiber and its component test, outdoor cable test and multi-spot optical sensors monitoring system.
Features:
  • Low insertion loss, Fast switching
  • SerialNet, High Reliability, High Stabilit
  • LED display panel. Visual display, Convenient operation
  • Transparent transmission signal. High stability and reliability
  • Channel and time interval of automatic scanning can be set up
  • RS232 Control and RJ45 Ethernet Remote Management
Applications:
  • FITL
  • Automatic Measurement
  • Optical Network Remote Monitoring
  • Cable Monitoring and Maintaining system

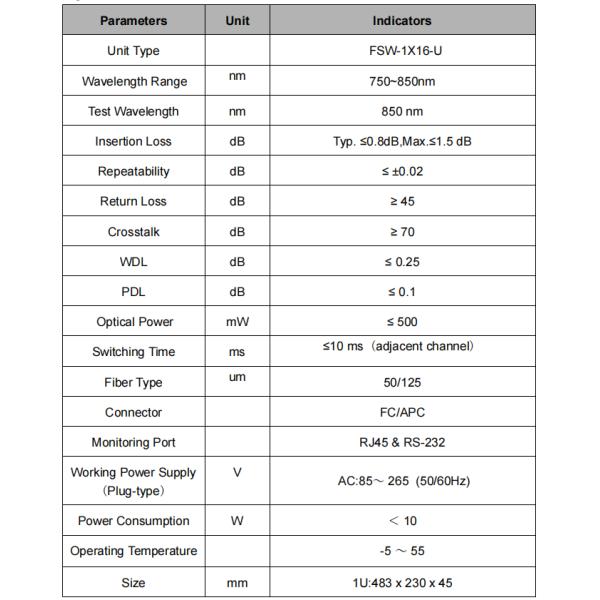

​Specifications:

Automatic Measurement Rack 1×N Fiber Optical Switch With LED Display Panel

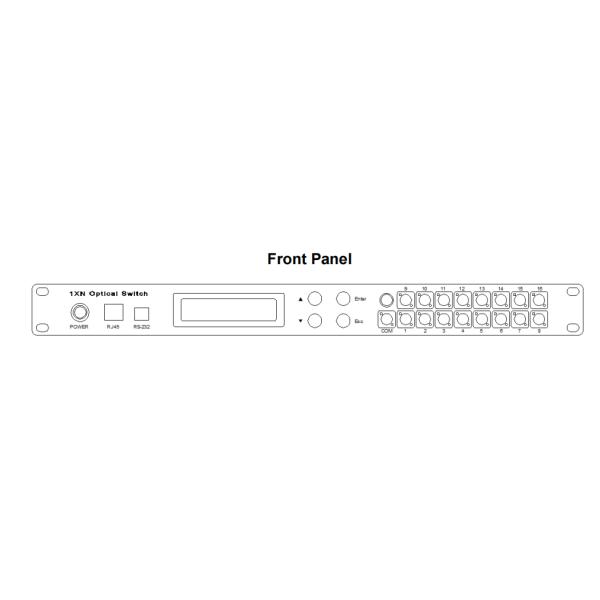

Panel to Explain:

Automatic Measurement Rack 1×N Fiber Optical Switch With LED Display Panel

  • Power: Master switch of power supply
  • RJ45:Communications network management interface ;
  • RS-232: Rs- serial interface ; RS232 serial communication interface;
  • LCD:Devices that display information directly;
  • ▲ : Key to move up; ▼ : Key to move down; Enter: Key to determine;
  • Esc: Key to cancel;
  • com,1~16:Fiber interface;

Automatic Measurement Rack 1×N Fiber Optical Switch With LED Display Panel

  • AC:100~240V: P o w e r c o r d i n t e r f a c e

Automatic Measurement Rack 1×N Fiber Optical Switch With LED Display PanelAutomatic Measurement Rack 1×N Fiber Optical Switch With LED Display PanelAutomatic Measurement Rack 1×N Fiber Optical Switch With LED Display Panel
